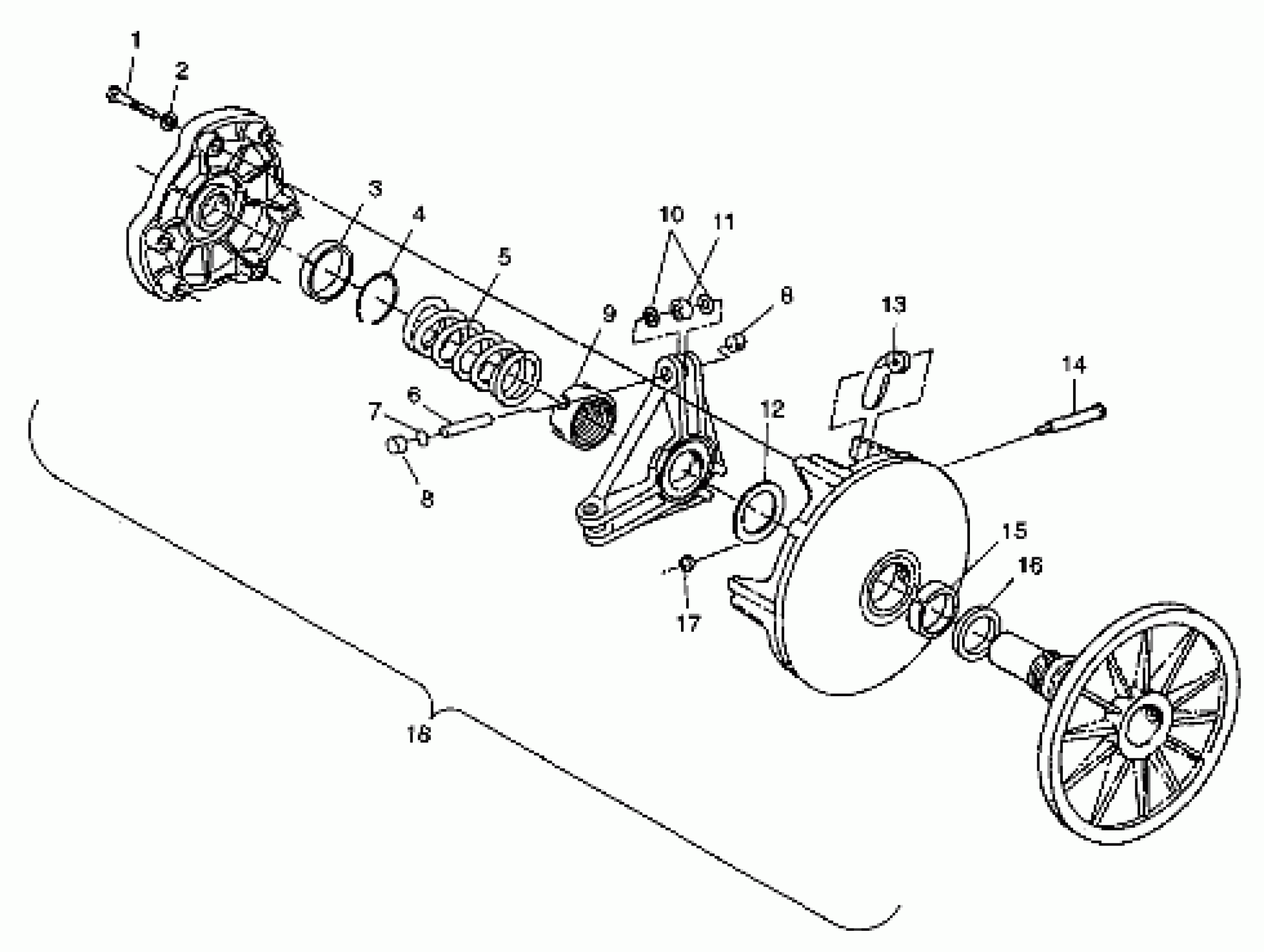

Polaris 500 INDY - 099EB4BS DRIVE CLUTCH - 099EB4BS(A) (4946834683c001) Diagram

#

Description
Price

-

KIT,CLUTCH UPDATE (Incl. 6,7,8,10,11,14)

2200386

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH(GOLD)

7041148

$56.65

6

PIN-ROLLER

5020422

$2.39

7

Kit - Shim, Drive Clutch

2200387

$24.27

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

NUT-JAM

5020425

$23.99

10

WASHER,MULTILUBE

5430945

$1.59

11

ASM-ROLLER AND BUSHING

1321457

$40.46

12

SPACER(10) (.050,)

5210754

Unavailable

12

SPACER(10) (.020,)

5210752

Unavailable

12

SPACER(10) (.032,)

5210753

Unavailable

13

WT/BUSH.ASM,10M(3)

1321528

$40.46

14

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

15

SLEEVE, BEARING

3576502

$23.99

16

INSERT-MOVEABLE

5010188

$7.99

17

NUT FLEX LOC(10)

7541906

$3.19

18

CLUTCH,BASIC#87(DRIVE) (Incl. All Less 5,13)

1321736

Unavailable
