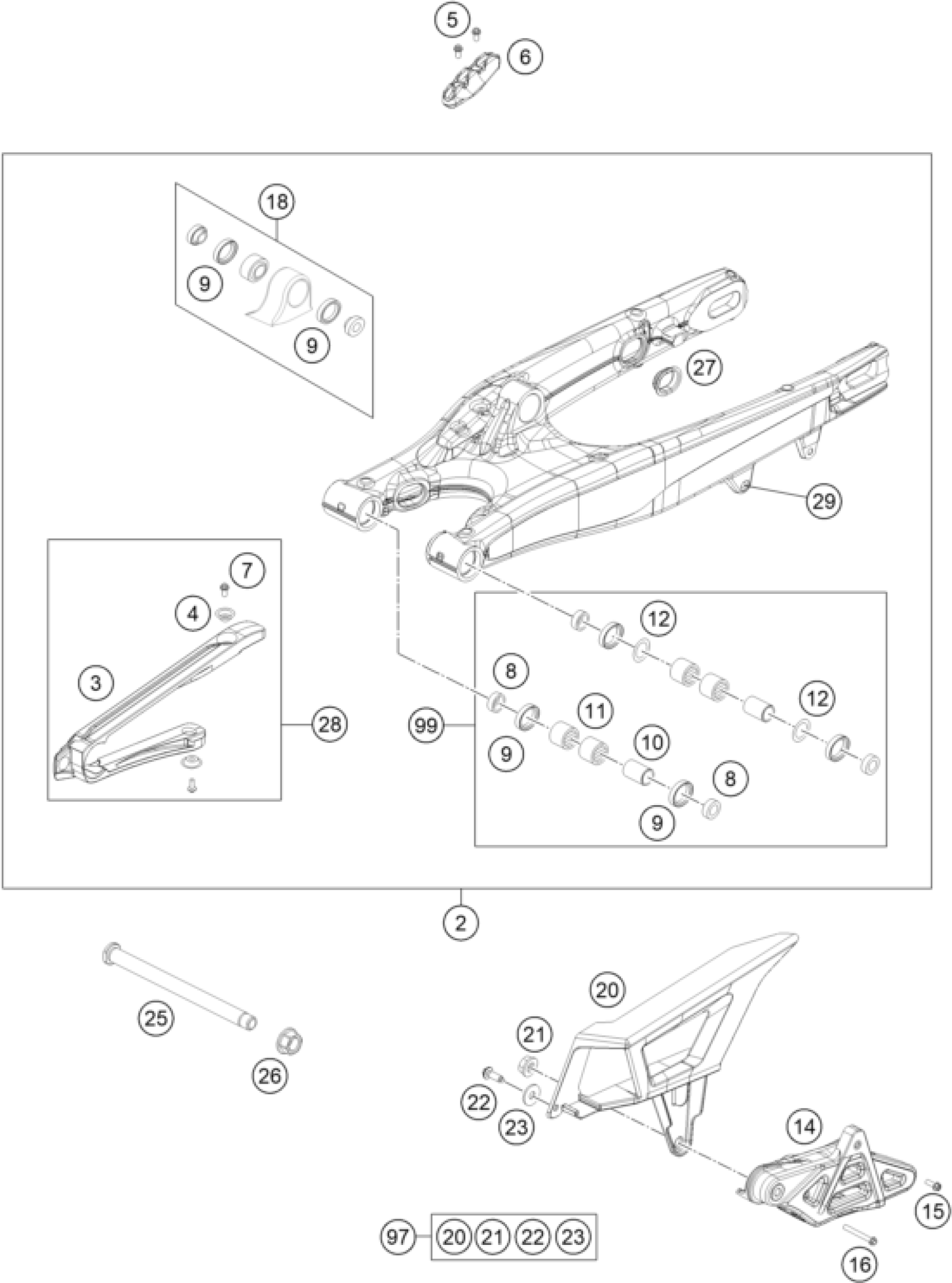

KTM 500 EXC SIX DAYS 2016 SWING ARM Diagram

#

Description
Price

22

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

97

CHAIN PROTECTION KIT EXC 12-14

78104060010

Unavailable

10

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

11

Needle bushing HK2212V 22/28/1

0618222812

$9.81

20

CHAINGUARD

78104060000

$10.37

23

Washer DIN9021-A 6.4

0021060003

$2.05

99

SWINGARM-REPAIR KIT 05-14

59404230110

Unavailable

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

4

chain slider bushing

77304066050

$1.49

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

14

CHAIN GUIDE EXC ORANGE

7810407010004

$64.59

16

HH collar screw M6x50 TX30

0025060506

$3.08

18

PIVOT BEARING+BUSH. PDS '11

50304090144

$64.69

2

SWINGARM PDS XC-W 2012

78104030144

$699.37

3

CHAIN SLID.GUARD PDS

51504066000

$22.71

21

Self locking nut M6 - 10

56509064100

$2.05
