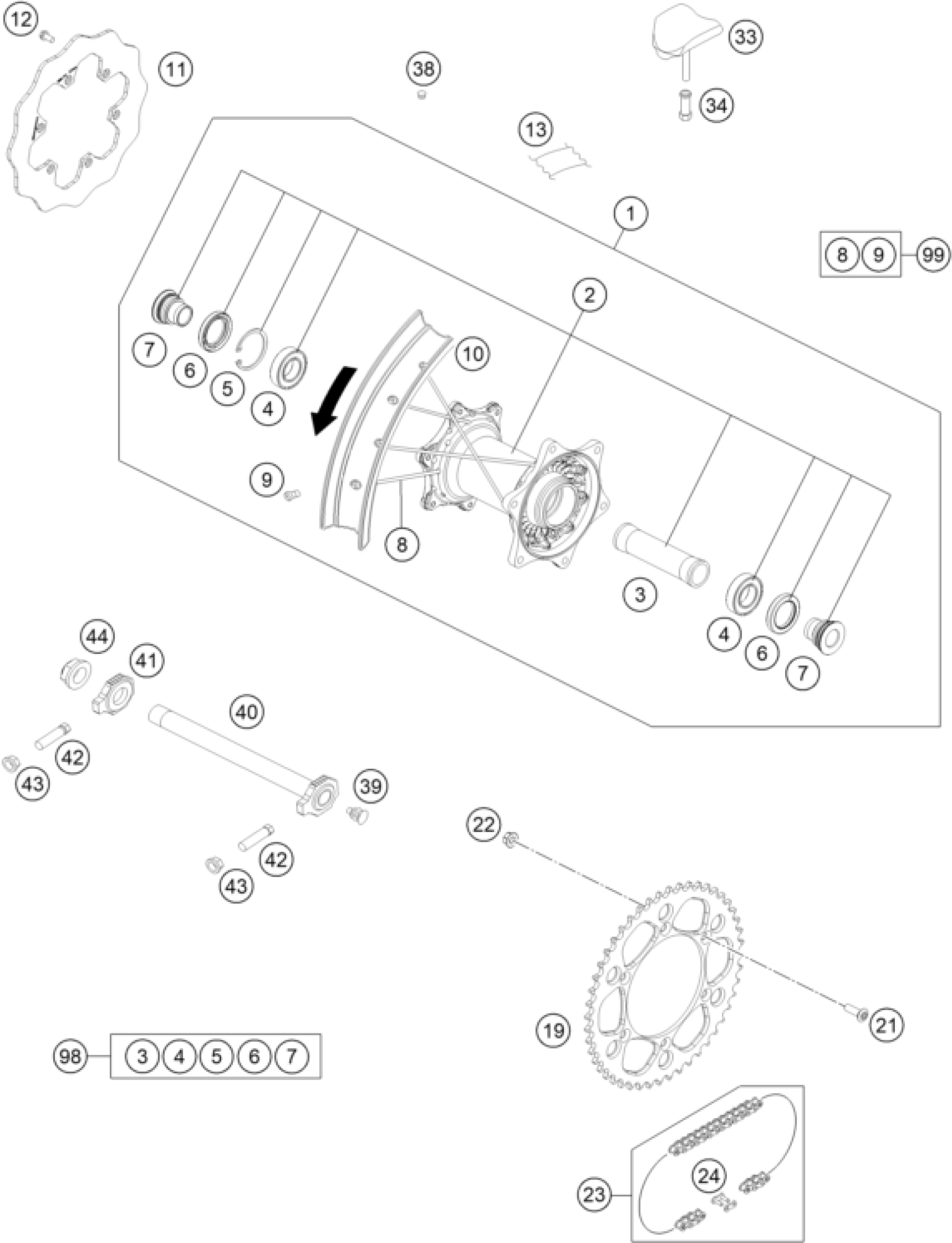

KTM 500 EXC-F SIX DAYS 2024 REAR WHEEL Diagram

#

Description
Price

1

Rear Wheel cpl. 2,15X18'' GIAN

78110001644C1B

Unavailable

2

Rear wheel hub cmpl.

A46010010044

$352.77

3

Bearing spacer tube 121.5mm

A46010011000

$15.33

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

Spacing tube rear wheel

A46010016000

$16.17

8

SPOKE M4,5X193-18'' BLACK 1

7901007119330

$5.23

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

Rear rim 2.15x18"

78110070300C1B

Unavailable

11

BRAKE DISC REAR D=220MM

25010960000

$159.79

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

19

Sprocket 45-T

7771015104504

Unavailable

19

Sprocket 47-Z

7771015104704

Unavailable

19

REAR SPROCKET 48T ORANGE

7771015104804

$67.03

19

REAR SPROCKET 50T ORANGE

7771015105004

Unavailable

19

SPROCKET 51-Z

7771015105104

Unavailable

19

REAR SPROCKET 52T ORANGE

7771015105204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN DID 118 LINKS

78010267118

$125.66

24

CONNECTING LINK F. 78010267118

78010266000

$13.27

33

Tyre locker 2,15"

78110090200

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

Wheel spindle rear wheel cmpl.

A46010085044

$52.61

41

Chain tension adjuster right

A46010084000

$10.93

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Collar nut M22x1.5 WS=30

A46010086000

$5.79

98

wheel bearing repair kit

A46010015010

Unavailable

99

SPOKE KIT REAR 18'' EXC 17

00050000981

Unavailable
