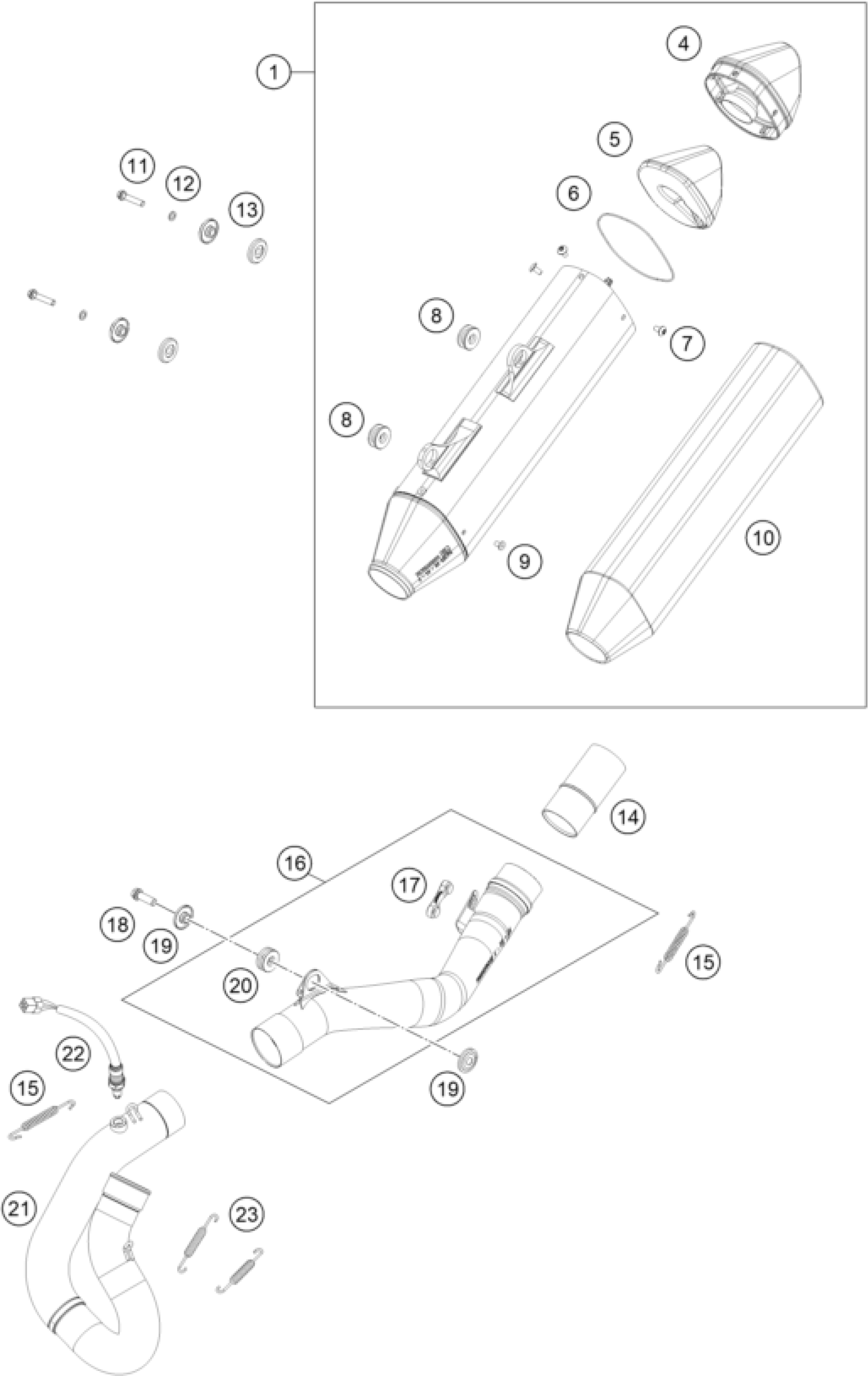

KTM 500 EXC-F 2020 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer

79705081000

Unavailable

4

Endcap cpl.

79105081060

$185.88

5

Insulating material formed par

79105081086

$15.89

6

O-RING 80,00X2,00 VITON

0770800021

$6.91

7

SCREW TORX M5X10

78105081010

$2.05

8

DAMP. COMPON. BLACK

77205068000

$6.54

9

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

10

insulating material formed par

79105081085

$64.23

11

HH collar screw M6x35 TX30

0025060356

$3.08

12

Pair of washers M6 NORDLOCK

50233041000

$4.11

13

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

14

Catalytic converter

79105091000

$464.69

15

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

$7.00

16

Exhaust manifold rear 450 EXC-

79505010000

$273.01

17

exhaust spacer

79105098000

$5.51

18

HH collar screw M8x30

0025080306

$3.08

19

BUSHING 8.5x12x28x8.3

77805069000

$5.98

20

Damper gray

79105068000

$8.03

21

Exhaust Manifold front 500 EXC

79705009000

$293.49

22

LAMBDA SENSOR

75041090200

$327.34

23

Tension spring L=65 mm

50305016200

$4.57
