HANDLEBAR, CONTROLS

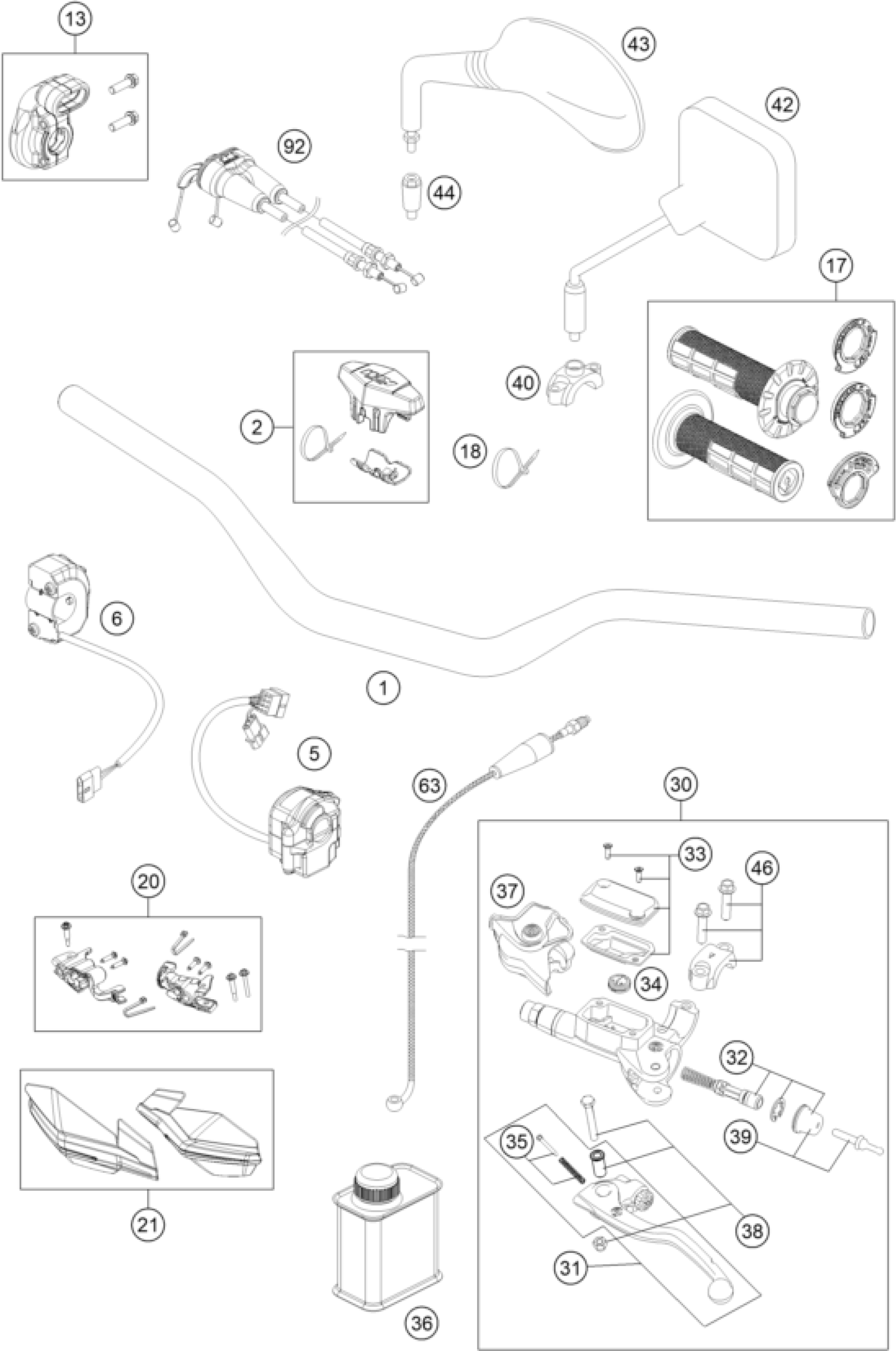

KTM 500 EXC-F 2019 HANDLEBAR, CONTROLS Diagram
#
Description
Price
1
HANDLEBAR
7800200100030
$151.84
2
Bar pad cmpl.
77202002144
$22.94
5
Handlebar switch left
76511070100
$110.04
6
START-EMERGENCY STOP SWITCH 08
76511074000
$60.86
13
THROTTLE CONTROL CASING CPL.
79002010025
$29.16
17
GRIP SET
79002021100
$31.44
18
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
18
Cable tie 200/4.6mm black
44011076200
Unavailable
20
Handguard assembly kit
79602084044
$33.99
21
Handguard
79602182044EB
$26.34
30
MASTER CYLINDER CPL.
54802030144
$240.57
31
Clutch lever cmpl. BREMBO 06
54802031000
$45.15
32
REP. KIT PISTON 06
54802032000
$49.92
33
COVER HYD. CLUTCH CPL. 2014
5480200310030
$35.52
34
VALVE
54802051000
$19.16
35
BOLT KPL.
54802052000
$29.35
36
Brake fluid DOT5.1 0,25L
00062030000
$12.52
37
PROTECTION CAP 06
54802037000
$20.94
38
Lever screw cmpl. 06
54802038100
$39.82
39
Push rod cmpl.
54802046000
$23.46
40
Clamp for mirror
58012040150
$22.81
42
Rear view mirror left
58012040000
$36.18
42
Rear view mirror right
58012140000
$37.11
43
MIRROR L/S 98
58412040000
Unavailable
43
MIRROR R/S 98
58412041000
Unavailable
44
SUPPORT FOR MIRROR LC4 '98
58412040050
Unavailable
46
CLAMP CPL. 06
54802005100
$25.80
63
CLUTCH PIPE
78132063000
$107.14
92
THR.CABLE
79602091000
$106.68
