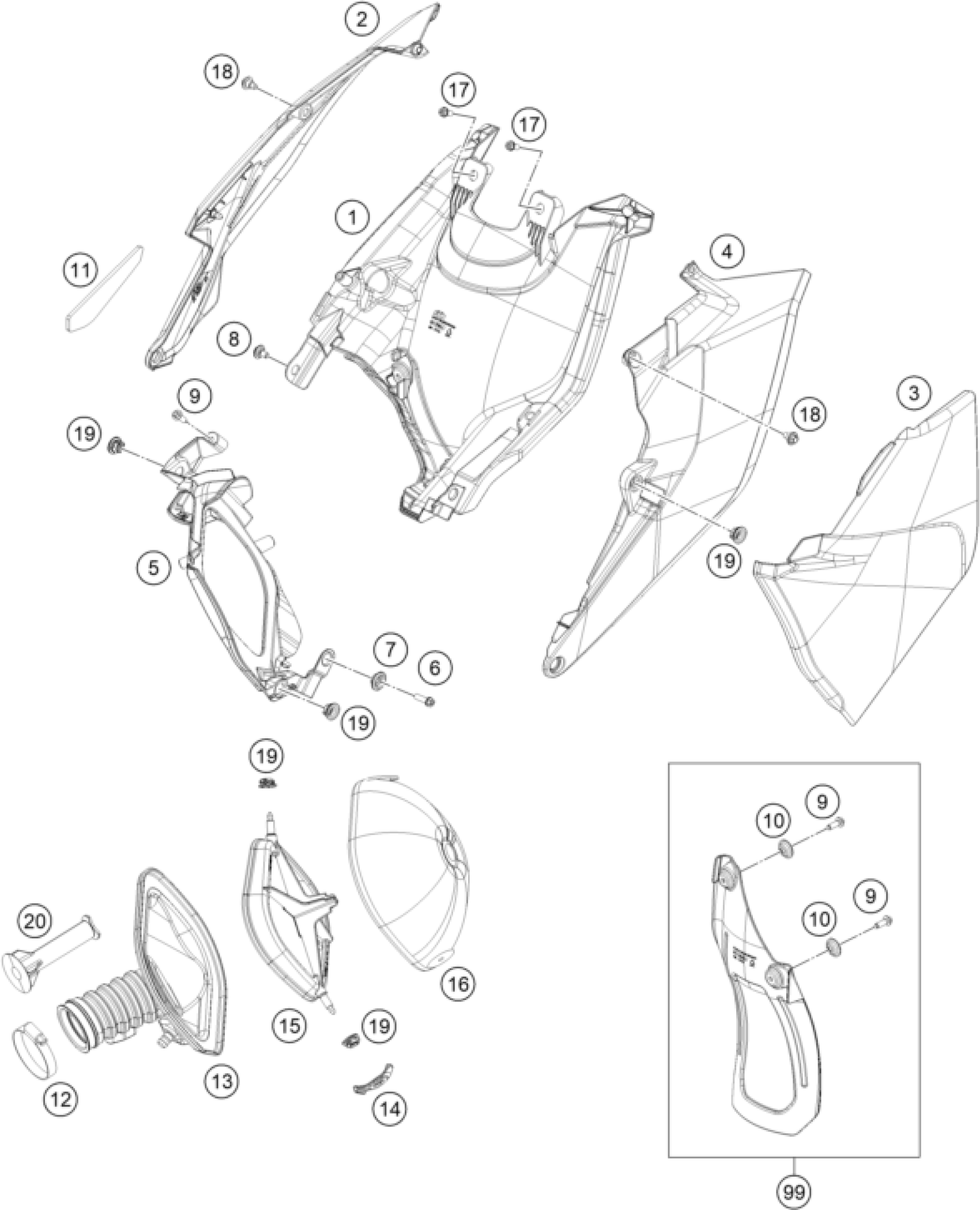

KTM 500 EXC-F 2019 AIR FILTER Diagram

#

Description
Price

1

AIR BOX BOTTOM PART BLACK

7900600100033

$27.19

2

AIRBOX COVER RIGHT

79006004000EB

$22.94

3

AIRBOX COVER LEFT

79006003000EB

$22.94

4

AIRBOX SIDE COVER

79006007000EB

$22.94

5

AIRBOX FRONT PART

7900600101033

$15.97

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

8

SPECIAL SCREW M6X15X3

83008000015

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

chain slider bushing

77304066050

$1.49

11

THERMAL PROTECTION FOIL

79008013050

$6.44

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

INTAKE BELLOWS

79606026000

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

$2.05

15

AIR FILTER SUPPORT

79006016000

$24.77

16

AIR FILTER

79006015000

$32.12

17

HH collar screw M6x12 TX30

0025060126

$3.08

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

19

quick release rubber grommet

47106003160

$4.11

20

INTAKE THROTTLE D=16

79406012050

$2.33

99

SPLASH PROTECTOR KIT

79006010010

$24.49
