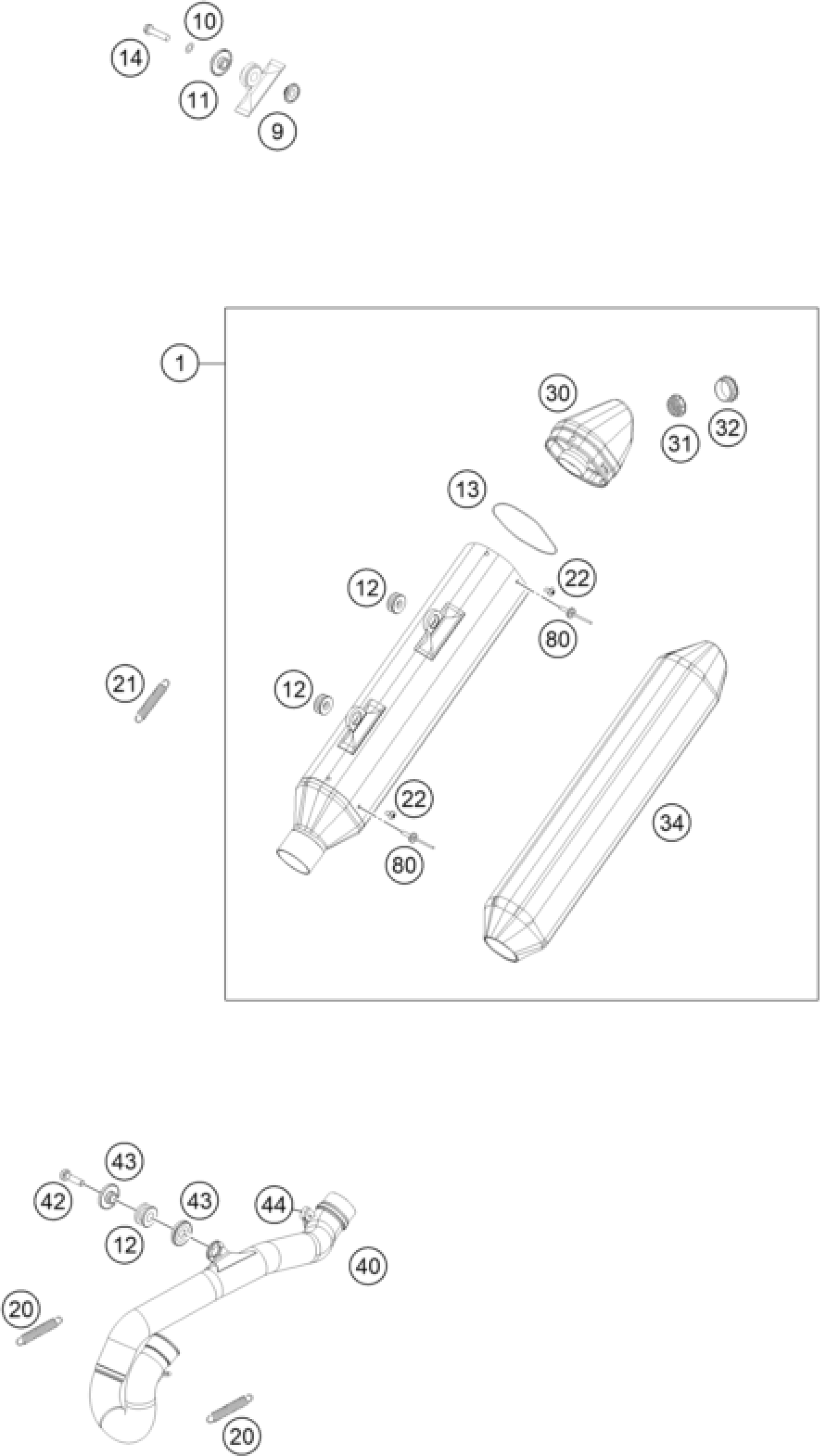

KTM 500 EXC-F 2017 EXHAUST SYSTEM Diagram

MAIN SILENCER

79005081000

$703.58

BUSHING 7.5x12x20x8.2 11

77205069000

$5.98

Pair of washers M6 NORDLOCK

50233041000

$4.11

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

DAMP. COMPON. BLACK

77205068000

$6.54

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

HH collar screw M6x35 TX30

0025060356

$3.08

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

$7.00

SCREW TORX M5X10

78105081010

$2.05

END CAP CPL.

79005081060

$191.39

THROTTLE ELEMENT CPL. EXC 07

77005081065

$15.89

SIL. ELEMENT EXC-F 07

77005081055

$9.81

ROCK WOOL SHAPED PART

79005078640

$86.20

EXHAUST MANIFOLD EXC

79605109000

$435.80

AH collar screw M8x30 ISA45

0035080306S

$3.08

BUSHING 8,5X12X28X8,3

79005069000

$7.66

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

RUBBER BUFFER

54308042000

$3.08
