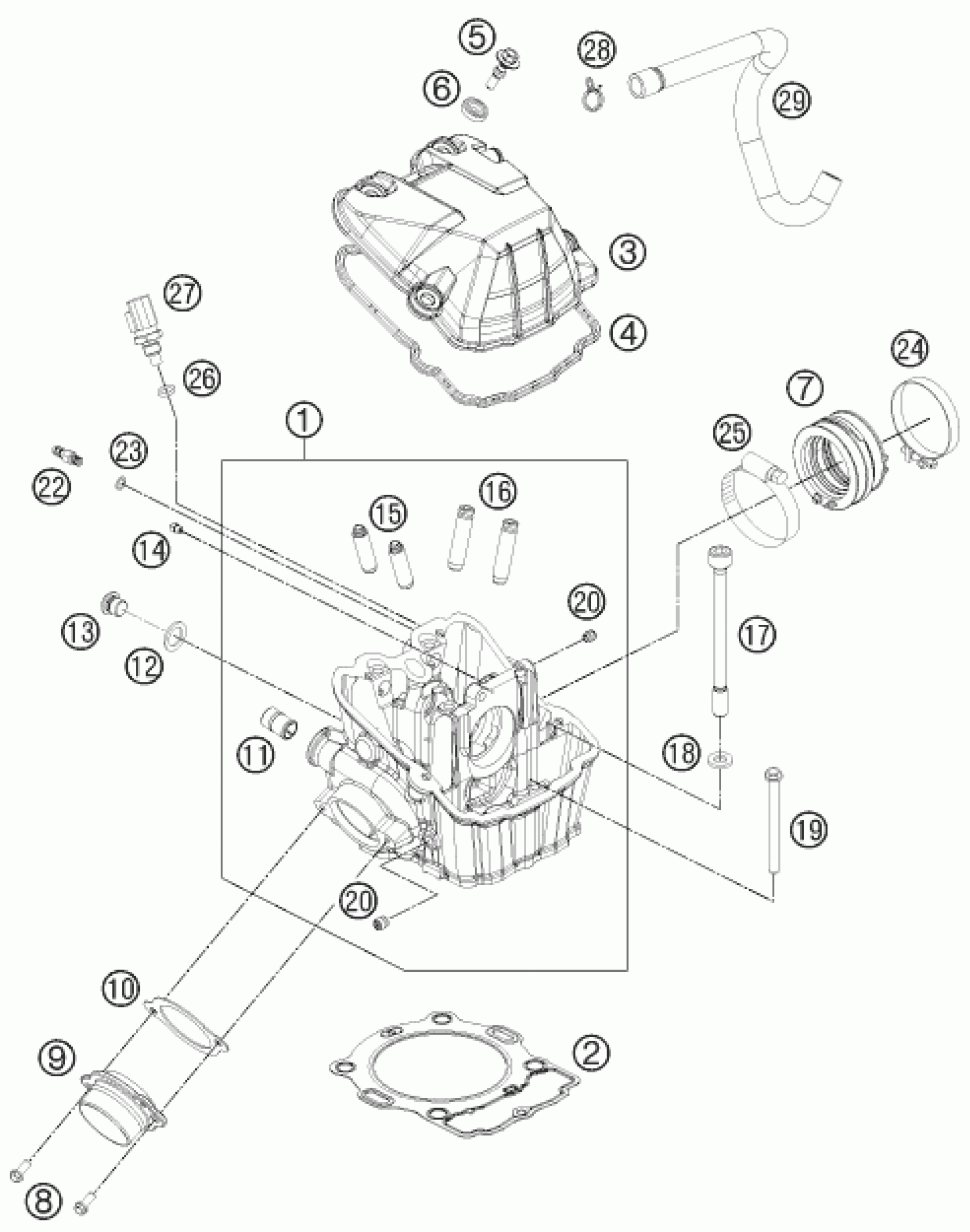

KTM 500 EXC 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDERHEAD CPL.

78136120044

$745.47

2

CYLINDER HEAD GASKET S=1.0

78930036010

$94.80

3

VALVE COVER BLACK MATT

7803605200033

$48.89

4

VALVE COVER GASKET

78036053100

$9.90

5

VALVE COVER SCREW

78036054100

$6.63

6

decoupling element

75036052010

$4.11

7

CONNECTION RUBBER EFI

77236044000

$36.27

8

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

9

EXHAUST FLANGE

78136139000

$36.55

10

EXHAUST FLANGE GASKET

78036041000

$3.08

11

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

12

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

13

PLUG SCREW SAS M12X1,5

78036024000

$9.72

14

oil jet 70 M5

60030063070

$8.59

15

VALVE GUIDE OUTLET

77136026001

$27.85

16

VALVE GUIDE INTAKE

78136025001

$25.42

17

cylinder head bolt M10x1.25 L=

78630044000

$11.02

18

washer 19x10.5x2.5

77336089010

$4.11

19

HH COLLAR SCREW M6X85 TX30

0025060856

$3.08

20

SCREW PLUG

59030296000

$6.26

22

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

23

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

24

Hose clamp GEMI 63mm 05

61036047000

$7.56

25

Hose clip GEMI 58

77236048000

$12.05

26

o-ring 10.00x2.00 silicone

0770100020

$2.05

27

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

28

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

29

ENGINE BREATHER TUBE

78130087000

$25.05
