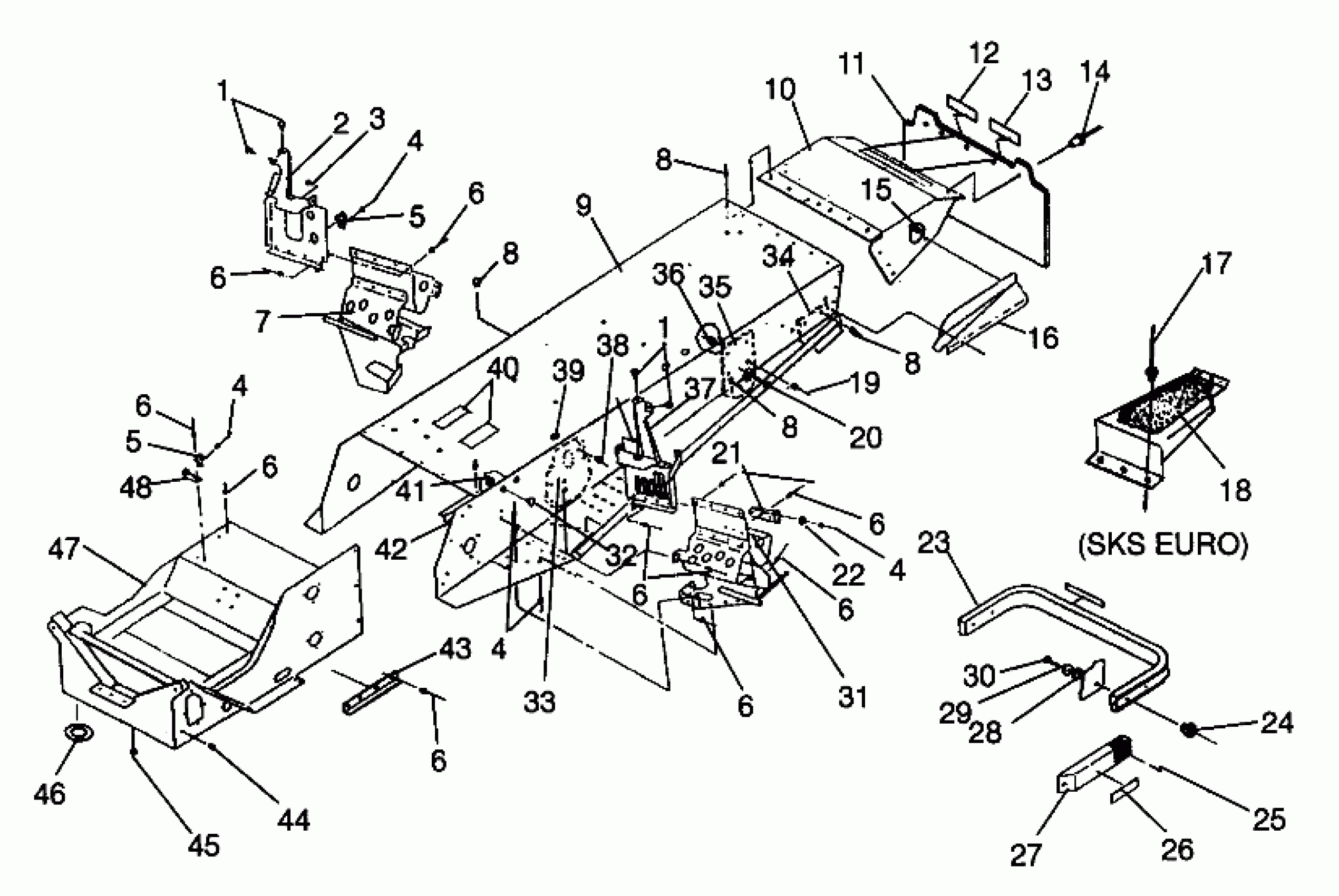

Polaris 500 EFI RMK - 0962974 TUNNEL 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS E (4931983198A005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

MT,CONSOLE,RH

1011952-067

$339.99

3

SCREW(10)

7512057

$2.38

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

GUIDE, RECOIL

5431385

$10.51

5

GUIDE, RECOIL

5431385

$10.51

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

7

FOOTREST ASM,RH,BLK. Substituted by 1012545

1011935

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

9

TUNNEL,LQ.X10,EV,BLK.

1012361-067

Unavailable

10

PANEL ASM,TUNNELBACK

1012360-067

Unavailable

11

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106 (SKS)

5432149

Unavailable

11

FLAP,SNOW (RMK)

5432033

Unavailable

12

DECAL,RH,TRACK/SEAT,FRENCH

7075415

Unavailable

13

DECAL,LH,TRACK/SEAT,ENGLISH

7075414

Unavailable

14

POP RIVET(50)

7621418

$1.49

15

SCREW(10)

7512026

$1.49

16

SKIRT,SNOW,LH

5432049-070

$33.91

16

SKIRT,SNOW,RH

5432050-070

$30.16

17

RIVET,INTERLOCK,B(50) (Euro)

7661638

$1.49

18

PAD,LH FOOT SAFETY (Euro)

5830007

$7.89

18

PAD,RH FOOT SAFETY (Euro)

5830008

$4.92

18

FOOTREST,RH,BLK. (EURO)

5222790-067

Unavailable

18

FOOTREST,LH,BLK. (EURO)

5222789-067

Unavailable

19

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

20

BOLT, BLACK (RMK)

7515494

$3.03

21

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

22

STOP, BUMPER

5410826

Unavailable

23

BUMPER, REAR

2670170

Unavailable

24

NUT-LOCK(10)

7542122

$1.49

25

SCREW(10)

7511863

$1.99

26

REFLECTOR RED

2670070

$9.91

27

CAP, BUMPER, BLK.

5430930-070

Unavailable

28

WASHER(10)

7558301

$1.49

29

LOCK WASHER(10)

7552801

$1.59

30

BOLT(10)

7512240

$3.99

31

FOOTREST ASM,LH,BLK. Substituted by 1012544

1011934

Unavailable

32

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

33

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

33

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

34

WEARPLATE,TUNNEL

5222061

Unavailable

35

BRKT,LH,R.SUSP Substituted by 1012563-067

1012409-067

Unavailable

35

BRKT,RH,R.SUSP Substituted by 1012564-067

1012410-067

Unavailable

36

NUT(10) (RMK)

7542423

$3.99

37

MT,CONSOLE,LH

1011951-067

$35.51

38

RIVET,SEMI-TUBE,(50)

7661841

$1.49

39

NUT,SERT(10)

7541938

Unavailable

40

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

41

SNAP-MALE(10)

7080227

Unavailable

42

BRACE,REINF.TUNNEL

5240242

Unavailable

43

GUARD,ADAPTER GUIDE

5222857

$12.94

44

PLUG, HOLE(10)

7080416

$5.65

45

PLUG-HOLE

7080398

$4.84

46

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

47

BULKHEAD

1012359-067

$649.99

48

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99
