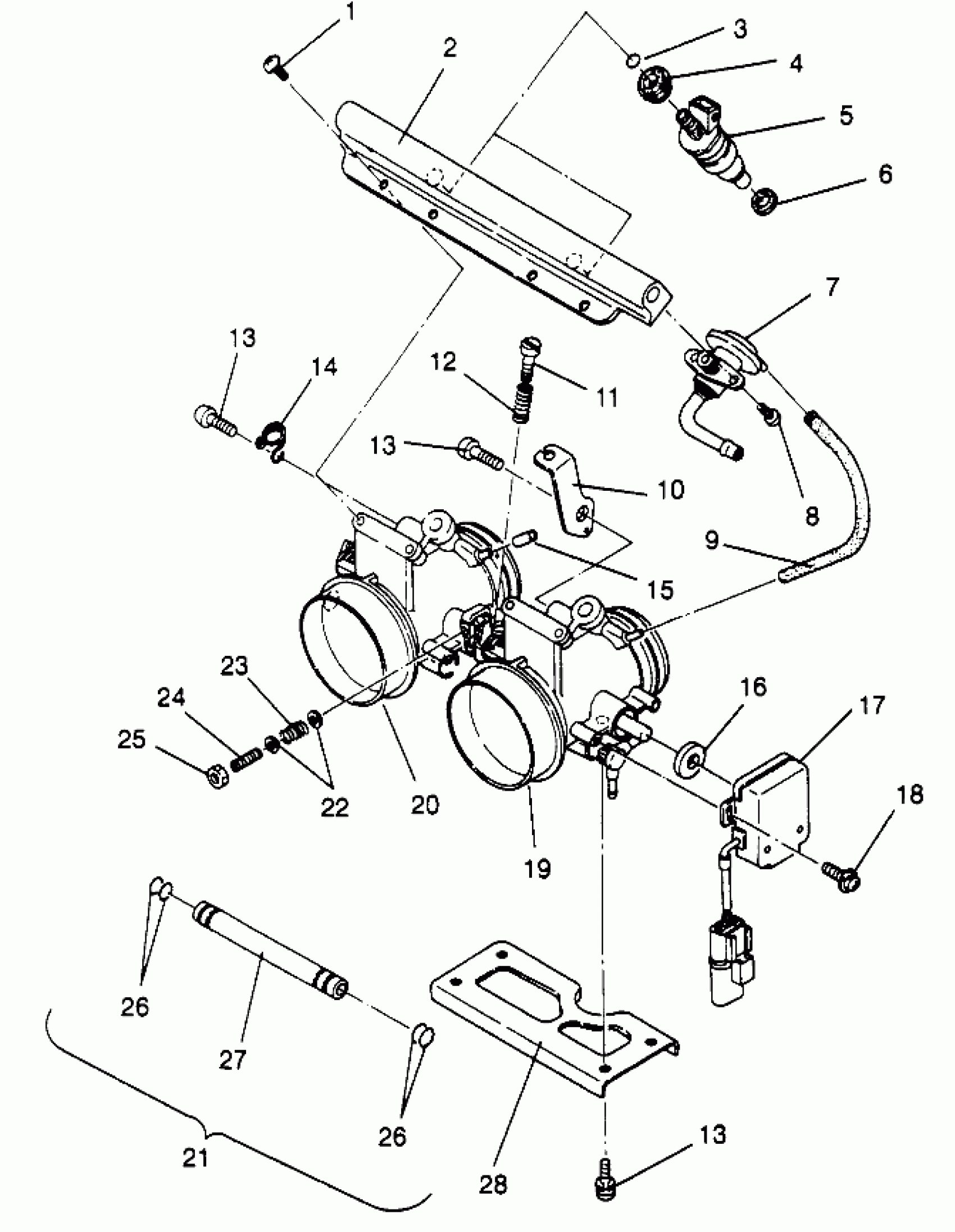

Polaris 500 EFI RMK - 0962974 THROTTLE BODY 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EF (4931983198C012) Diagram

#

Description
Price

1

SCREW

3084359

Unavailable

2

PIPE,FUEL DELIVERY

3084363

Unavailable

3

O RING, CONNECTOR

3084057

Unavailable

4

INSULATOR,UPPER

3084058

Unavailable

5

INJECTOR, FUEL (Incl. 3, 4)

3084056

Unavailable

6

INSULATOR,LOWER

3084059

Unavailable

7

REGULATOR ASM.

3084351

Unavailable

8

SCREW

3084065

Unavailable

9

PIPE, RUBBER

3084393

Unavailable

10

WIRE STAY

3084364

Unavailable

11

SCREW, ADJUST.

3084068

$5.43

12

SPRING

3084069

Unavailable

13

SCREW

3084392

Unavailable

13

SCREW

3084392

Unavailable

13

SCREW

3084392

Unavailable

14

CLAMP, HOSE

3084312

Unavailable

15

CAP, RUBBER

3084077

Unavailable

16

GASKET

3084385

Unavailable

17

SENSOR ASM,THROTTLE

3084616

Unavailable

18

SCREW

3084064

$1.44

19

THROTTLEBODY 3 ASM.

3084311

Unavailable

20

THROTTLEBODY 1 ASM.

3084309

Unavailable

21

THROTTLEBODY ASM. (Incl. 1-28)

3084350

Unavailable

22

WASHER(10)

3084070

Unavailable

23

SPRING

3084071

Unavailable

24

SCREW, ADJUST.

3084073

$10.63

25

NUT

3084072

Unavailable

26

O RING

3084063

Unavailable

26

O RING

3084063

Unavailable

27

JOINT, PIPE

3084062

$38.79

28

STAY PLATE

3084352

$59.60
