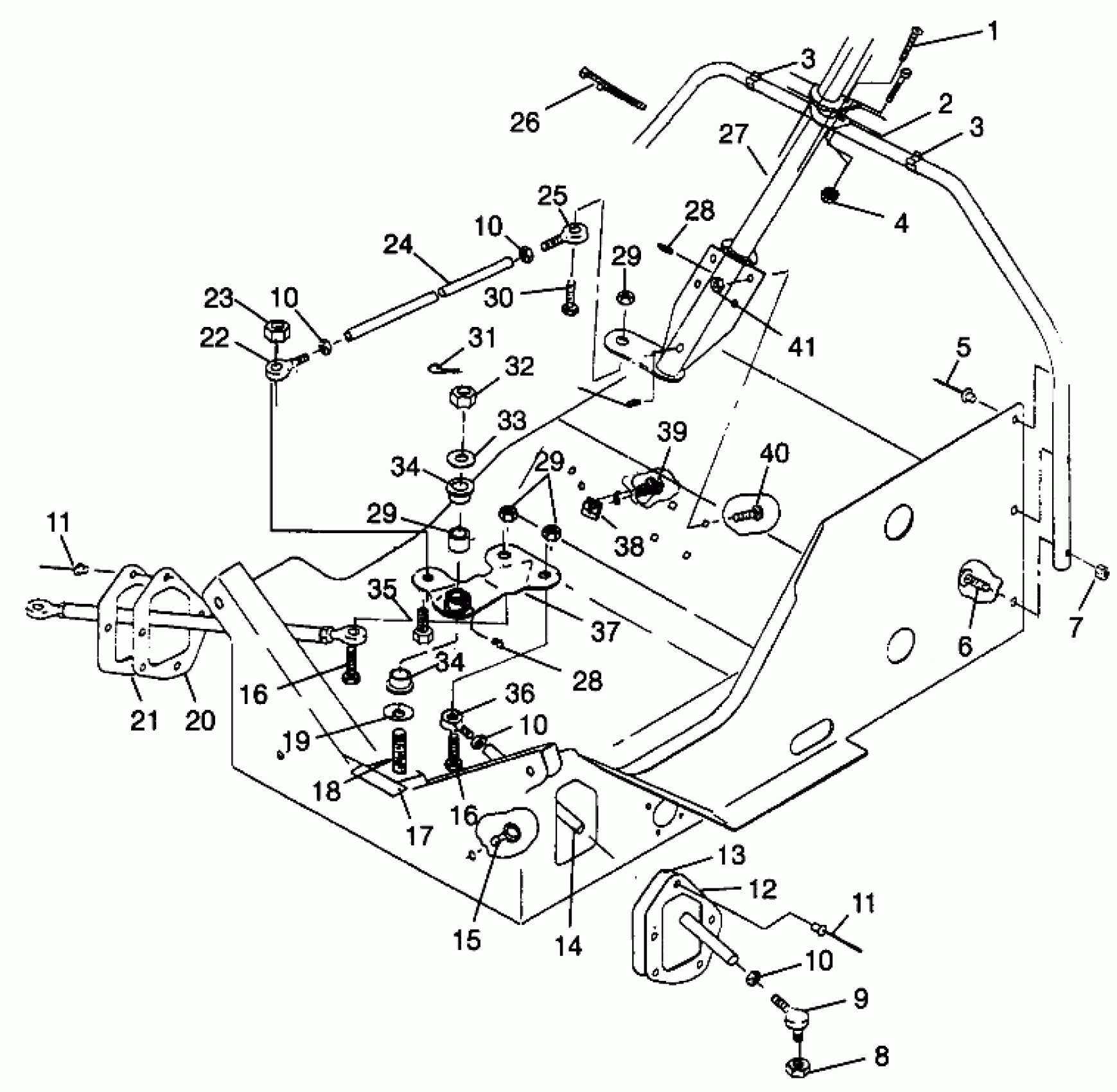

Polaris 500 EFI RMK - 0962974 STEERING 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198B004) Diagram

#

Description
Price

1

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

2

HOOP,STEERING

1012335-067

Unavailable

3

CLIP(10)

7080278

$2.63

3

CLIP(10)

7080278

$2.63

4

NUT(10)

7542124

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

BOLT-CARRIAGE(10)

7512275

$3.99

7

NUT, LOCK(10)

7542103

$5.59

8

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

9

Rod End, LH

7061005

Unavailable

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

11

RIVET(50)

7621340

$0.56

11

RIVET(50)

7621340

$0.56

12

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

13

BOOT,LH,TIE-ROD

5410867

Unavailable

14

TIEROD,BLK.

5020820-067

Unavailable

15

CLIP, PLASTIC(10)

4020139

$4.79

16

BOLT(10)

7515528

$8.79

16

BOLT(10)

7515528

$8.79

17

BLOCK,STRG,(CAST)

5630563

$32.37

18

BOLT(10)

7512682

Unavailable

19

WASHER,WAVE(10)

7555735

$3.99

20

BOOT,RH,TIE-ROD

5410868

$12.70

21

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

22

ROD END, LH.

7060164

$48.56

23

BUSHING

5010340

Unavailable

24

ROD-DRAG LINK

5332712

Unavailable

25

ROD END, RH.

7060165

$48.56

26

STRAP, BLK

7080272

Unavailable

27

POST,STEERING

1822257-067

Unavailable

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

29

NUT LOCK(10)

7542403

$3.99

29

NUT LOCK(10)

7542403

$3.99

29

NUT LOCK(10)

7542403

$3.99

30

BOLT(10) Substituted by 7515492

7512410

Unavailable

31

PIN COTTER(10)

7661203

$1.49

32

NUT FLEX,(10)

7542703

Unavailable

33

WASHER(10)

7555721

$1.49

34

BUSHING

3563907

$3.99

34

BUSHING

3563907

$3.99

35

BOLT(10)

7512404

$3.99

36

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

37

STRG.ASM,CTR. (Incl. 29, 28)

1822212

Unavailable

38

SPEED NUT(10)

7670021

$6.99

39

BOLT(10)

7512193

$2.39

40

BOLT(10) Substituted by 7512377

7512394

Unavailable

41

NUT-5/16-18 NYLOK-Y

7542324

$1.49
