SEAT and GAS TANK ASSEMBLY 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EU (4931983198A007)

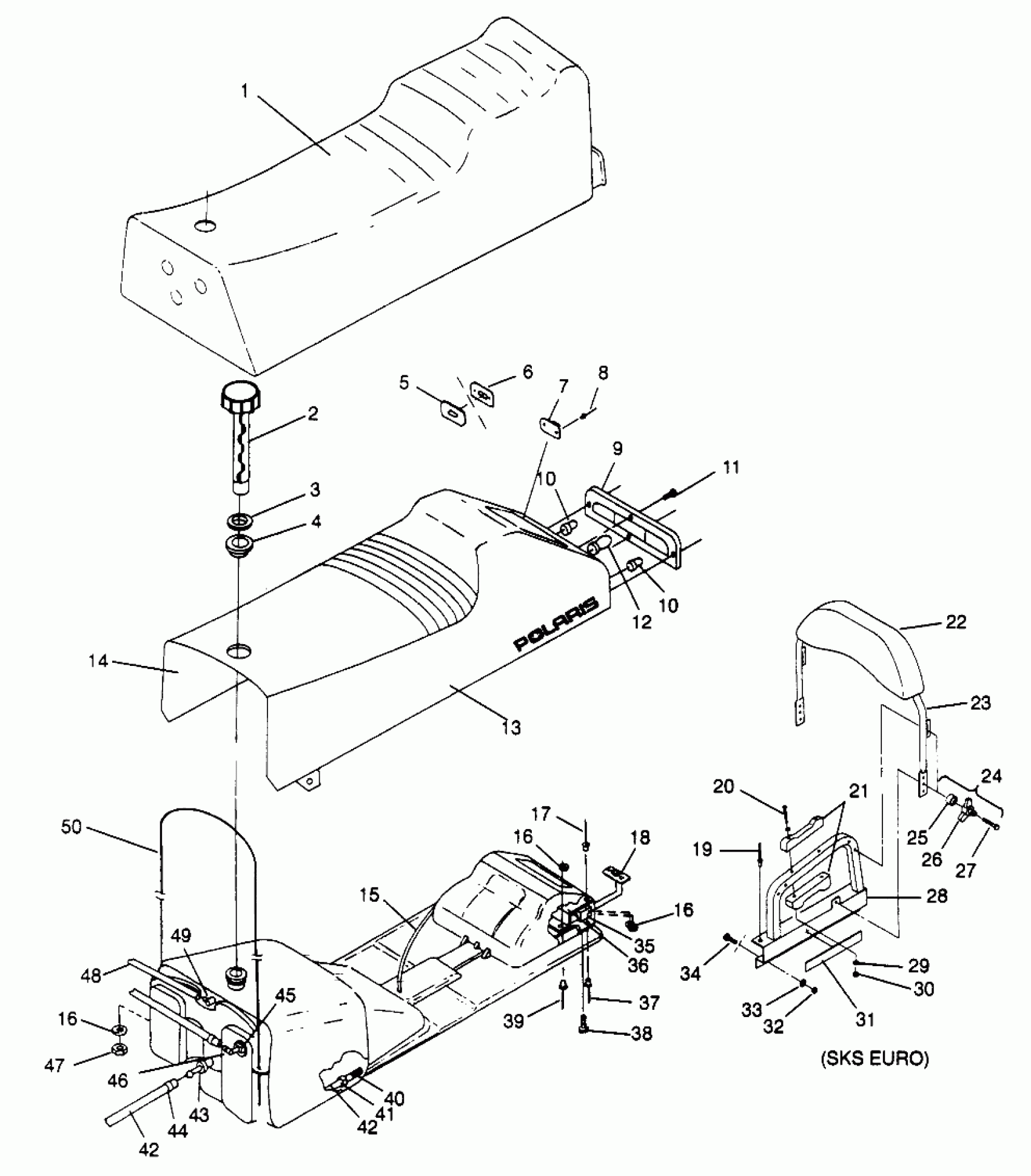

Polaris 500 EFI RMK - 0962974 SEAT and GAS TANK ASSEMBLY 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EU (4931983198A007) Diagram
#
1
COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Euro)
2681788
Unavailable
1
SEAT ASM,2-UP,(EFI-EURO) (EURO)
2681932
$399.99
2
CAP,GAS,W/GAUGE
2511248
$44.51
3
GASKET, GAS CAP
5810513
$8.89
4
GROMMET,FUELTANK
5410815
Unavailable
5
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
6
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
7
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
8
RIVET(50)
7621337
$1.49
9
LENS,TAILLIGHT
5430423
Unavailable
10
BULB,TAILLIGHT(10)
4030024
$4.84
10
BULB,TAILLIGHT(10)
4030024
$4.84
11
SCREW(10)
7511840
Unavailable
12
Bulb, Brakelight
4030045
Unavailable
13
COVER,SEAT,STD. (SKS)
2681856
Unavailable
13
COVER,SEAT,STD,(RMK) (RMK)
2681954
Unavailable
14
CUSHION,SEAT,STD. (SKS) (Incl. 5-13, 15-18, 40-43, 45-47, 49, 50)
2681866
$399.99
14
SEAT ASM,STD,(RMK) (RMK) (Incl. 5-13, 15-18, 40-43, 45-47, 49, 50)
2681953
$399.99
15
HARNESS,TAILLIGHT
2460398
Unavailable
16
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
16
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
16
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
17
RIVET, BLIND(50)
7621467
$1.49
18
NUT,RETAINER-WELD.(10)
7542147
$17.59
19
RIVET,INTERLOCK,B(50) (Euro)
7661638
$1.49
20
SCREW(10) (Euro)
7510504
$6.76
21
GRIP, HAND Substituted by 5433383 (Euro)
5431015
$19.68
22
COVER,BACKREST ASM. Substituted by 2681265 (EURO)
2681790
Unavailable
23
BACKREST ASM. Substituted by 2681356 (EURO)
2681789
Unavailable
24
KNOB ASM,BACKREST (Incl. 25-27) (EURO)
2670130
Unavailable
25
SPACER (Euro)
5431285
Unavailable
26
KNOB, BACKREST (EURO)
5630386-067
$20.22
27
SCREW(10) (EURO)
7515352
Unavailable
28
BAR,GRAB,LH,BLK. (EURO)
1011729-067
Unavailable
28
BAR,GRAB,RH,BLK. (EURO)
1011730-067
Unavailable
29
WASHER(10) (Euro)
7555783
$3.99
30
NUT, LOCK(10) Substituted by 7541925 (Euro)
7541929
Unavailable
31
REFLECTOR RED (Euro)
2670070
$9.91
32
NUT, NYLOK(10) (EURO)
7542327
$4.79
33
WASHER(10) Substituted by 7558402 (EURO)
7555770
Unavailable
34
BOLT(10) Substituted by 7512325 (Euro)
7515363
Unavailable
35
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
36
COVER,T/L PROTECTOR
5431436
$21.43
37
RIVET(50)
7621301
$3.99
38
SCREW(10)
7512242
$2.39
39
RIVET(50)
7621464
$3.99
40
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
41
RING, COMPRESSION(10)
7080402
$1.60
42
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
42
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
43
FITTING - OUTLET(10)
7052023
$24.99
44
CLAMP, HOSE
7080490
Unavailable
45
GROMMET-TANK FITTING(10)
7052028
$6.39
46
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
47
NUT(10)
7541925
$1.49
48
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
49
FITTING,90 DEG,1/8,(10)
7052095
$4.79
50
CABLE,TANK,RETENTION
7080559
Unavailable
