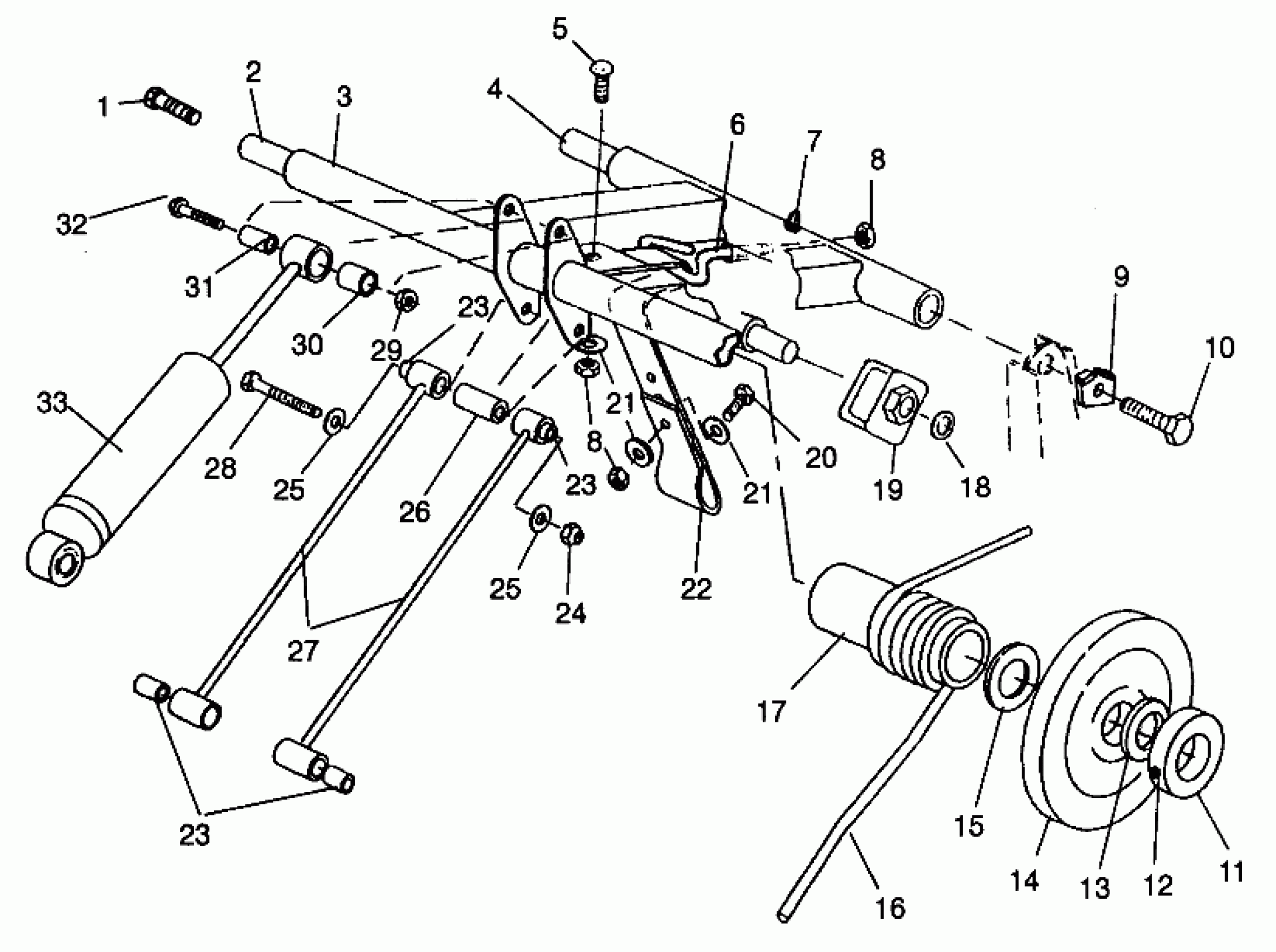

Polaris 500 EFI RMK - 0962974 REAR TORQUE ARM 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 (4931983198B014) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT,R.TORQUE,UPPER

5020845

$63.99

3

ARM,R.TORQUE,BLK Substituted by 2200914

1541024-067

$68.19

4

SHAFT,LOW,RR,TORQUE

5020843

Unavailable

5

BOLT(10) (RMK)

7512377

$4.79

6

BOLT,EYE (RMK)

7010050

Unavailable

7

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

NUT LOCK(10) (RMK)

7542321

$1.49

8

NUT LOCK(10) (RMK)

7542321

$1.49

9

LOCK,BOLT,MECHANICAL

5211649

Unavailable

10

BOLT(10)

7515526

$1.19

11

COLLAR-BRG. LOCK

5010155

Unavailable

12

SCREW-SET(10) (RMK)

7512257

$3.99

13

WASHER, THRUST(10) Substituted by 7555871

7555862

$5.56

14

Wheel, Carrier

1543023

Unavailable

15

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

16

SPRING,LH,TORS(.421DIA) (.421) Med. (Euro)

7041461-067

Unavailable

16

SPRING,RH,TORS(.406DIA) (.406) Std.

7041464-067

Unavailable

16

SPRING,RH,TORS(.421DIA) (.421) Med. (Euro)

7041462-067

$113.32

16

SPRING,LH,TORS(.406DIA) (.406) Std.

7041463-067

Unavailable

17

SLEEVE,TORSION SPRING

5431923

$6.39

18

CLIP-PUSH ON

7080394

$2.39

19

ROLLER, SPRING ADJ.

5431168

Unavailable

20

BOLT(10) (RMK)

7515307

$3.99

21

WASHER(10) (RMK)

7555716

$1.59

21

WASHER(10) (RMK)

7555716

$1.59

22

STRAP,LIMITER (RMK)

5411061

Unavailable

22

STRAP-LIMITER,RR,SA (SKS)

5411062

Unavailable

23

BUSHING,PIVOT TUBE

5020561

$1.59

23

BUSHING,PIVOT TUBE

5020561

$1.59

23

BUSHING,PIVOT TUBE

5020561

$1.59

24

NUT LOCK(10)

7542411

$3.19

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

Spacer

5333420

$11.99

27

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

28

BOLT(10)

7515472

$2.39

29

NUT FLEX-LOC(10)

7542303

$6.39

30

BUSHING

5430537

$3.99

31

BUSHING,R.SHOCK

5333030

Unavailable

32

BOLT(10)

7512329

$3.99

33

SHOCK,GAS,R.TRACK

7041438

Unavailable
