PISTON and CRANKSHAFT 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEA (4931983198C011)

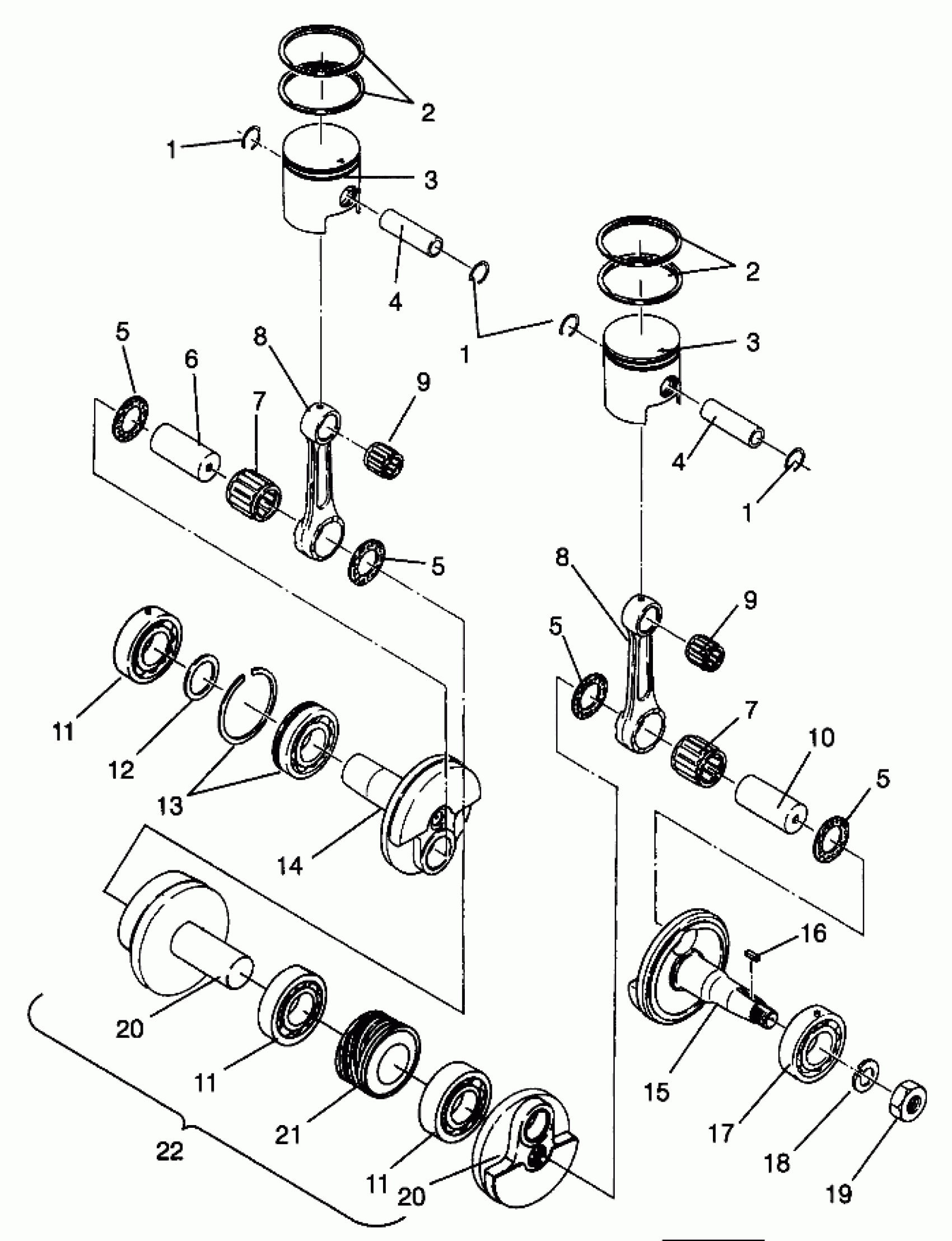

Polaris 500 EFI RMK - 0962974 PISTON and CRANKSHAFT 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEA (4931983198C011) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
2
RING,PISTON,STD. (Standard)
3084342
$47.60
2
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084343
Unavailable
2
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084344
$66.65
3
PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084340
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084341
Unavailable
3
PISTON, STD. (Standard)
3084339
Unavailable
3
PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084340
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084341
Unavailable
3
PISTON, STD. (Standard)
3084339
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
ROD-CONNECTING
3083252
$164.99
8
ROD-CONNECTING
3083252
$164.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
PIN,CRANK
3083233
$36.41
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
12
DESC NOT_AVAILABLE
3085237
Unavailable
13
BALL BEARING
3085204
Unavailable
14
CRANKSHAFT 3 (PTO Side)
3085202
Unavailable
15
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
16
KEY
3081447
Unavailable
17
BALL BEARING
3085205
Unavailable
18
WASHER-SPRING(10)
3083094
$3.17
19
NUT
3083093
$19.99
20
CRANKSHAFT 2 (Incl. 6, 10)
3083713
$583.49
20
CRANKSHAFT 2 (Incl. 6, 10)
3083713
$583.49
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
22
CRANKSHAFT ASM (Incl. 5, 7-15, 11, 20)
3085206
$1,299.99
