OIL TANK / AIR BOX 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 5 (4931983198C005)

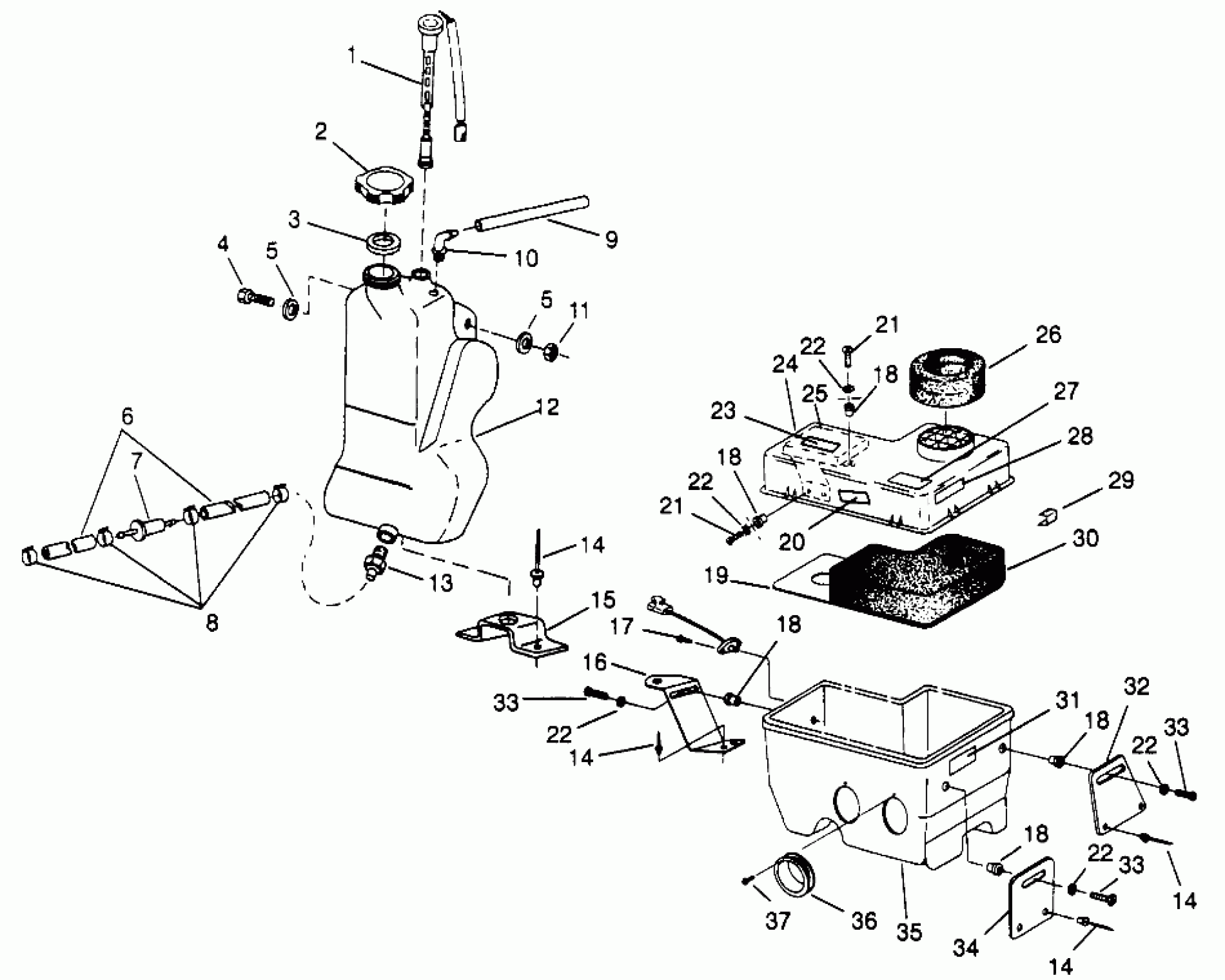

Polaris 500 EFI RMK - 0962974 OIL TANK / AIR BOX 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 5 (4931983198C005) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FITTING,90 DEG,1/8,(10)
7052095
$4.79
11
NUT-LOCK(10)
7542122
$1.49
12
Tank, Oil
5431437
Unavailable
13
FITTING, OUTLET
7052042
$8.99
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
BRKT,OILTANK,COINED
5241334
$9.70
16
BRKT,AIR SILENCER
5222617-067
Unavailable
17
BOLT(10) Substituted by 7527815
7511871
Unavailable
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
19
PLATE,AIR SILENCER
5850075
$24.27
20
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
21
BOLT(10)
7512261
$4.99
21
BOLT(10)
7512261
$4.99
22
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
DECAL,OXY.FUEL(500 EFI)
7074912
Unavailable
24
SILENCER,AIR,UP.DRILLED
5431566
Unavailable
25
DECAL,EFI COVER [No Longer Available]
7072909
Unavailable
26
DUCT ASM,AIR
2620057
$40.46
27
DECAL,CAUTION,AIRBOX
7075351
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
BAFFLE ASM, (EFI,94)
1253117
Unavailable
31
DECAL, GREASING [No Longer Available]
7073426
$7.27
32
BRACKET, SILENCER
5211274
$9.70
33
SCREW(10)
7512279
$1.49
33
SCREW(10)
7512279
$1.49
33
SCREW(10)
7512279
$1.49
34
BRKT,FRT.SILENCER
5211296-067
$4.38
35
SILENCER,INTAKE,DRILLED
5432310
Unavailable
36
BOOT, RELIEVED
5410585
Unavailable
37
SCREW,SELF-TAP(10)
7522004
Unavailable
