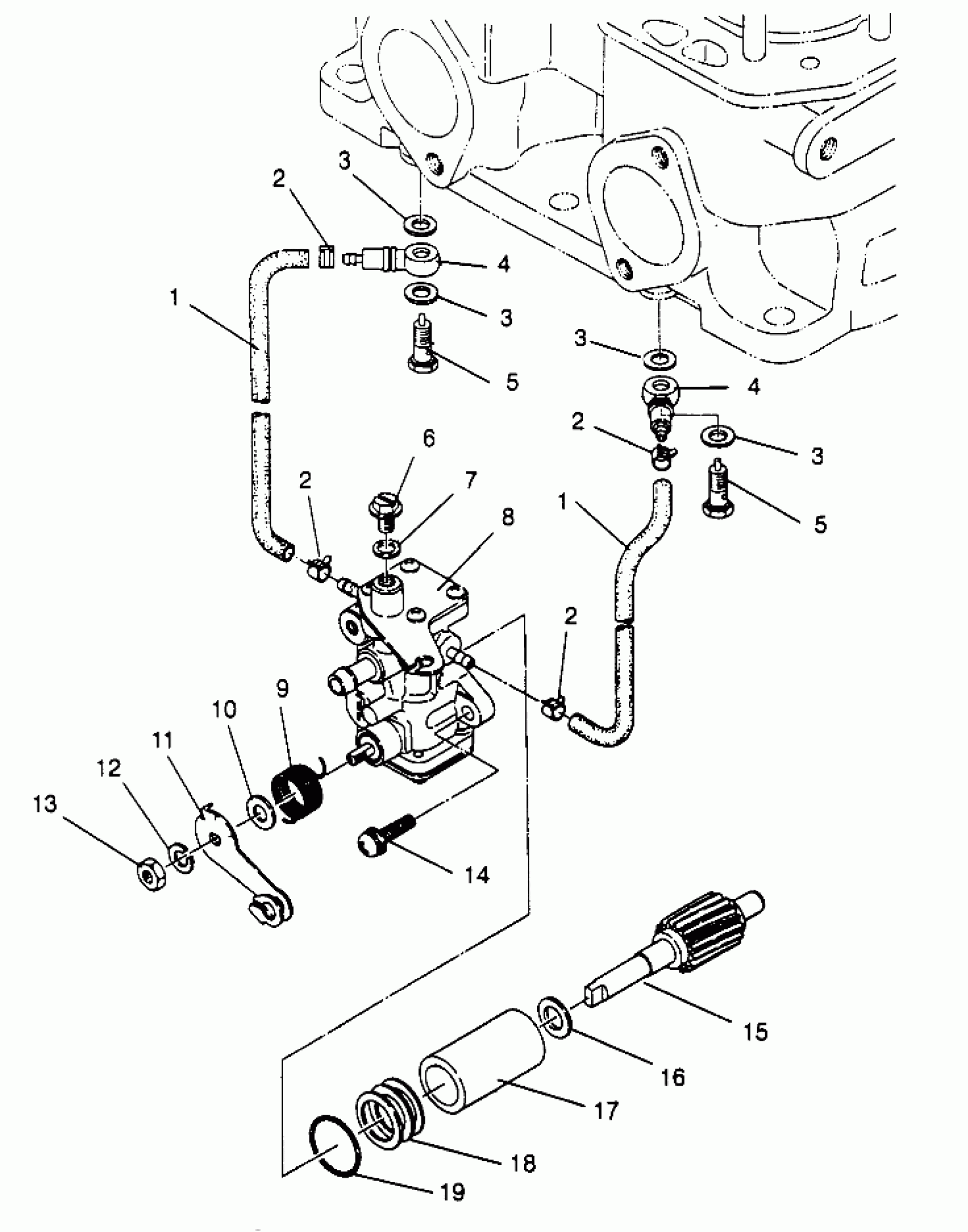

Polaris 500 EFI RMK - 0962974 OIL PUMP 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198C014) Diagram

#

Description
Price

1

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

1

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

4

VALVE, CHECK

3083894

Unavailable

4

VALVE, CHECK

3083894

Unavailable

5

BOLT-BANJO

3083137

Unavailable

5

BOLT-BANJO

3083137

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP, OIL (Incl. 6-13, 19)

3084346

Unavailable

9

SPRING-RETURN

3083123

Unavailable

10

COLLAR, CAMSHAFT(10)

3083445

$2.39

11

LEVER, CONTROL

3084347

Unavailable

12

WASHER-SPRING(10)

3083121

$299.99

13

NUT(10)

3083120

$3.19

14

SCREW&WASHER,(10)

3083783

$2.39

15

GEAR,SMALL,OIL PUMP

3083131

$89.99

16

SPACER

3083130

$1.59

17

BUSHING(OIL PUMP)

3083353

$31.99

18

SPACER #3 (.6mm)

3083673

Unavailable

18

SPACER #2 (.3mm)

3083672

Unavailable

18

SPACER #1 (.15mm)

3083671

Unavailable

19

O RING

3083127

Unavailable
