NOSEPAN 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198A010)

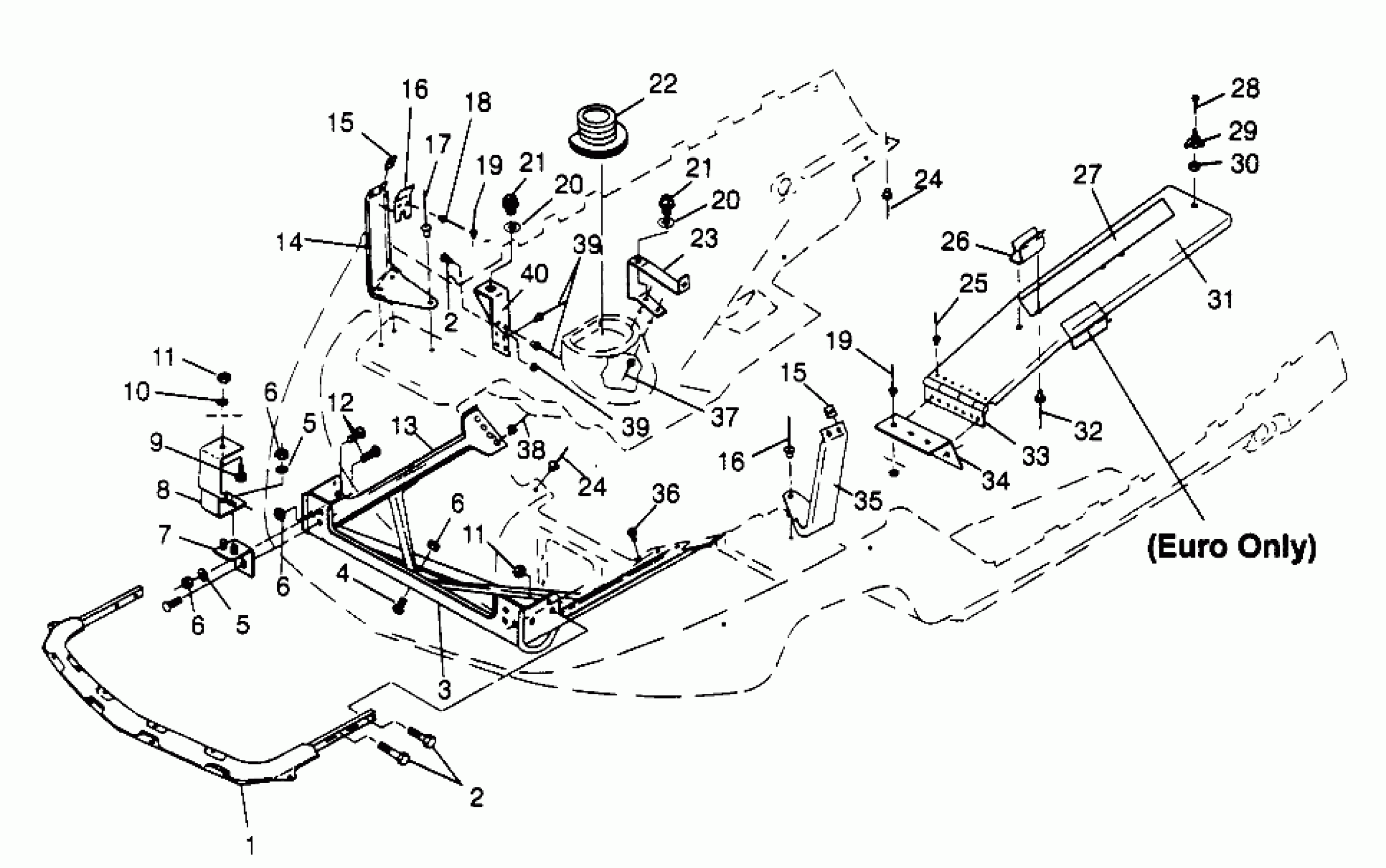

Polaris 500 EFI RMK - 0962974 NOSEPAN 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198A010) Diagram
#
1
BUMPER,FRONT
2670146-067
Unavailable
2
SCREW(10)
7512307
$3.99
2
SCREW(10)
7512307
$3.99
3
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
4
BOLT(10)
7512298
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
NUT(10)
7542153
$1.59
6
NUT(10)
7542153
$1.59
6
NUT(10)
7542153
$1.59
6
NUT(10)
7542153
$1.59
7
MOUNT,HINGE,BLK.
1011982-067
$45.99
8
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
9
SCREW(10)
7512310
$2.39
10
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
11
NUT FLEX-LOC(10)
7542303
$6.39
11
NUT FLEX-LOC(10)
7542303
$6.39
12
BOLT(10)
7512193
$2.39
13
SUPPORT,LH,BUMPER
1012327-067
$63.49
13
SUPPORT,RH,BUMPER
1012328-067
$133.29
14
BRKT,RH,SIDEPANEL
5240995
Unavailable
15
NUT, RETAINER(10)
7542146
Unavailable
15
NUT, RETAINER(10)
7542146
Unavailable
16
SHIELD,FASTENER
5240769
$0.90
16
SHIELD,FASTENER
5240769
$0.90
17
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621318
$1.49
19
RIVET(50)
7621433
$1.49
19
RIVET(50)
7621433
$1.49
20
WASHER, THRUST(10)
7555788
$4.99
20
WASHER, THRUST(10)
7555788
$4.99
21
DAMPNER, VIB.
5410467
$8.79
21
DAMPNER, VIB.
5410467
$8.79
22
Boot, Exhaust
5410502
$24.27
23
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
RIVET, POP(50)
7621330
$1.49
26
CLIP,BELT RETAINER
5222769
$8.79
27
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
28
SCREW(10)
7515352
Unavailable
29
KNOB,CLUTCH GUARD(10)
7080523
$4.03
30
SPACER
5431285
Unavailable
31
GUARD,CLUTCH
5240999
Unavailable
31
GUARD ASM,CLUTCH,EV,(EURO) (Euro)
1012430
Unavailable
32
RIVET(50)
7621429
$1.49
33
HINGE
5210728
Unavailable
34
MT,FR.CLUTCHGUARD
5222904
Unavailable
35
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
36
CLIP, PLASTIC(10)
4020139
$4.79
37
RIVET(50)
7621472
$1.49
38
RIVET,3/16X.402(50) (SKS)
7621432
$1.49
38
RIVET,INTERLOCK(50) Substituted by 7661130 (RMK)
7661639
Unavailable
39
RIVET-3/16-.090-.290
7661637
$1.49
39
RIVET-3/16-.090-.290
7661637
$1.49
40
SUPPORT,MUFFLER,BLK.
1260724-067
$92.99
