NOSEPAN 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198A009)

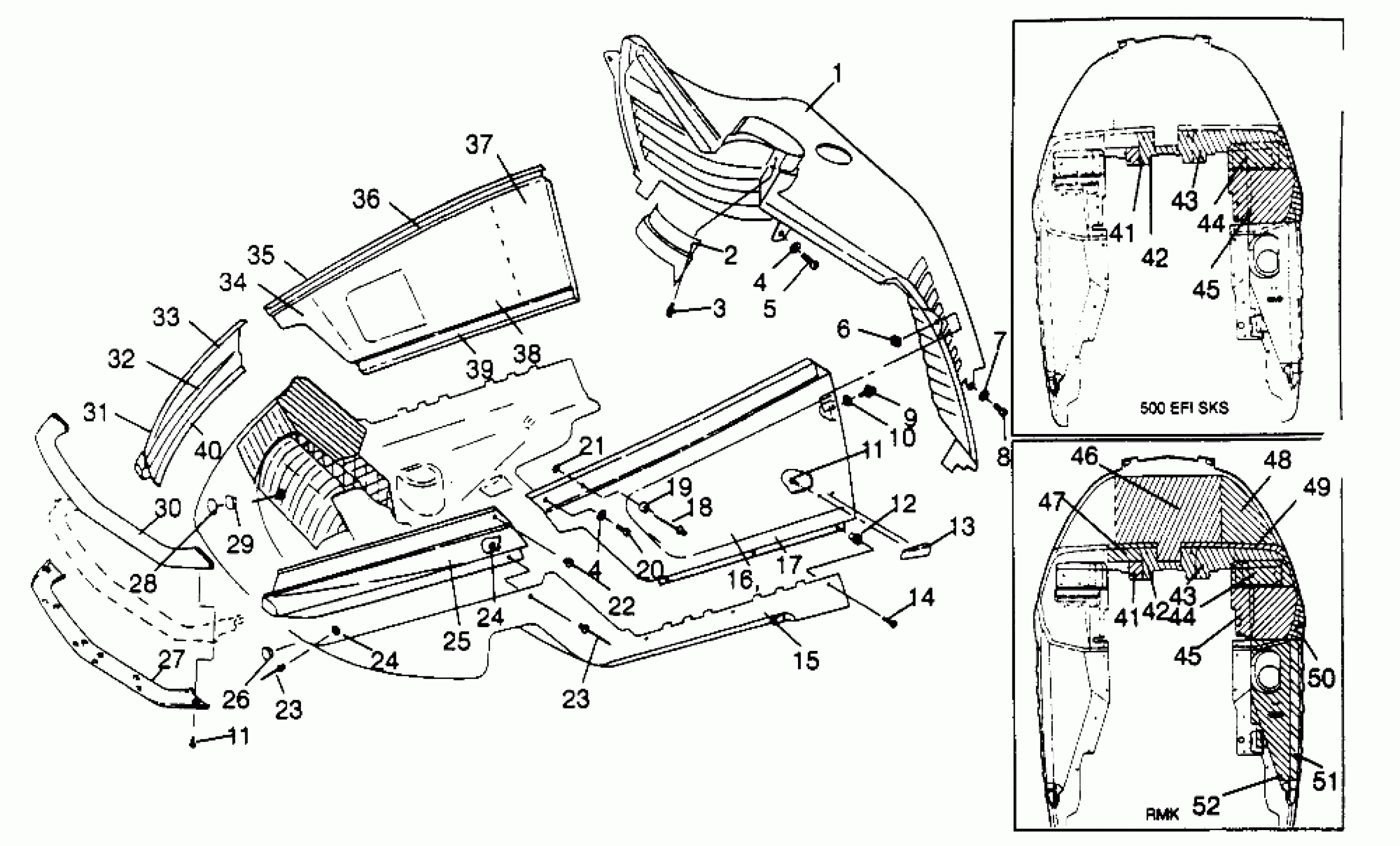

Polaris 500 EFI RMK - 0962974 NOSEPAN 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198A009) Diagram
#
1
CONSOLE,EUROPE (Euro)
5431697
Unavailable
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN,(EV,W/BATT.)
5432045
$222.22
16
PANEL,LH,SIDE,BLK.
5431742-070
$131.99
17
FOAM,LH,SIDEPANEL
5811076
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
SCREW(10)
7515148
$4.79
21
RIVET BURR(50)
7555756
$2.99
22
RIVET(50)
7621472
$1.49
23
RIVET, BLIND(50)
7621467
$1.49
23
RIVET, BLIND(50)
7621467
$1.49
24
BURR,RIVET(50)
7555904
$1.49
24
BURR,RIVET(50)
7555904
$1.49
25
BUMPER,LH SIDE,BLK.
5431492-070
Unavailable
26
PLUG,NOSEPAN HOLE
5410820
$15.99
27
COVER,F.BUMP.BOTTOM
5431481
Unavailable
28
FOIL,TAPE,3"DIA.
5810999
Unavailable
29
PLUG,CATCH HOLE
5410582
$7.27
30
COVER,F.BUMP.TOP,BLK.
5431480-070
Unavailable
31
BUMPER,RH,SIDE/FOIL,BLK. (Incl., 32, 33, 40)
2610010-070
$72.49
32
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
33
FOIL-SIDE BUMPER-UPPER
5811153
Unavailable
34
FOIL,FR.SIDEPANEL
5811072
Unavailable
35
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
35
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
36
FOIL,UP.SIDEPANEL
5811073
Unavailable
37
PANEL,RH,SIDE,BLK. (Incl. 34-39)
2610008-070
Unavailable
38
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
39
FOIL,LOW.SIDEPANEL
5811071
Unavailable
40
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
41
FOIL,LH,SHOCKTOWER,#12
5811188
Unavailable
41
FOIL,LH,SHOCKTOWER,#12
5811188
Unavailable
42
FOIL-CENTER, #11
5811187
Unavailable
42
FOIL-CENTER, #11
5811187
Unavailable
43
FOIL,RH,SHOCKTOWER,#13
5811192
Unavailable
43
FOIL,RH,SHOCKTOWER,#13
5811192
Unavailable
44
FOIL,RH,SHOCKTOWER,TOP,#14
5811193
Unavailable
44
FOIL,RH,SHOCKTOWER,TOP,#14
5811193
Unavailable
45
FOIL,RH,SHOCK TOWER,LOW.
5811194
Unavailable
45
FOIL,RH,SHOCK TOWER,LOW.
5811194
Unavailable
46
FOIL #10,CTR. (RMK)
5810962
Unavailable
47
FOIL #8,LH SIDE (RMK)
5810960
Unavailable
48
FOIL,FRT,RH,#1 (RMK)
5810952
Unavailable
49
FOIL,FR,RH,PAN (RMK)
5811197
Unavailable
50
FOIL,RH,PANSIDE,#16
5811195
Unavailable
51
FOIL,UPPER,RH,#5 (RMK)
5810956
Unavailable
52
FOIL,LOWER,RH,PAN (RMK)
5811196
Unavailable
