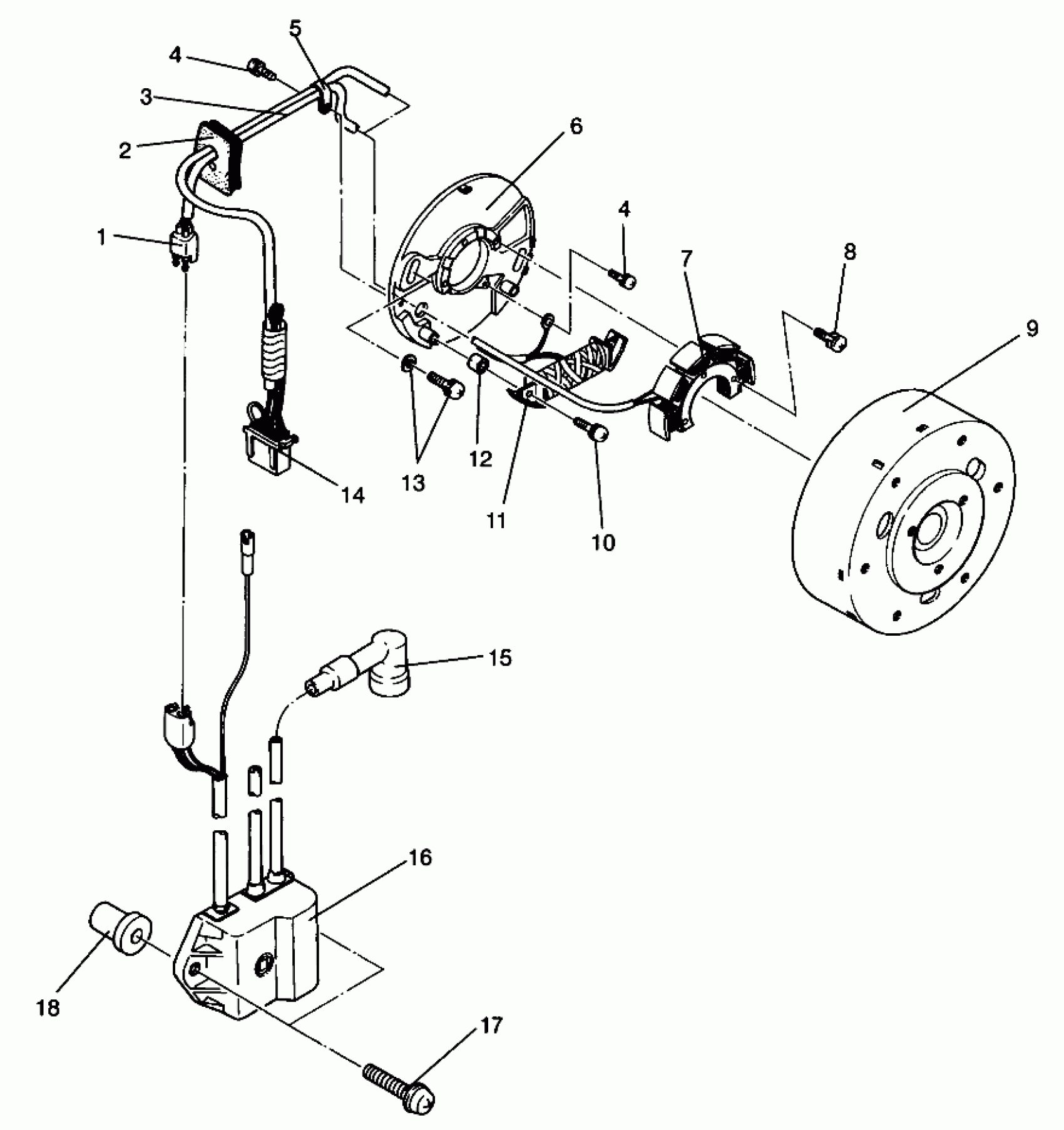

Polaris 500 EFI RMK - 0962974 MAGNETO 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198D001) Diagram

#

Description
Price

1

COUPLER

3083909

$23.99

2

Grommet

3082969

Unavailable

3

Harness, Wire (Incl. 2)

-------

Unavailable

4

SCREW&WASHER,(10)

3081260

$3.19

4

SCREW&WASHER,(10)

3081260

$3.19

5

Clamp

3081146

$1.49

6

Plate, Coil

3083987

$364.99

6

PLATE ASM. (Incl. 1-8, 10-12, 14)

3084634

Unavailable

7

STATOR #1

3084635

Unavailable

8

SCREW(10)

3082365

$3.19

9

FLYWHEEL

3084636

Unavailable

10

SCREW&WASHER

3084510

Unavailable

11

Coil, Exciter

3083984

$89.03

12

COLLAR

3084638

Unavailable

13

SCREW&WASHER,(10)

3082175

Unavailable

14

COUPLER,MALE

3081513

$19.99

15

CAP,SPARK PLUG Substituted by 4020129

3083155

Unavailable

16

COIL,IGNITION

3085053

Unavailable

17

SCREW&WASHER,(10)

3083784

$2.39

18

NUT-RUBBER

3083240

Unavailable
