HOOD 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS E9 (4931983198A011)

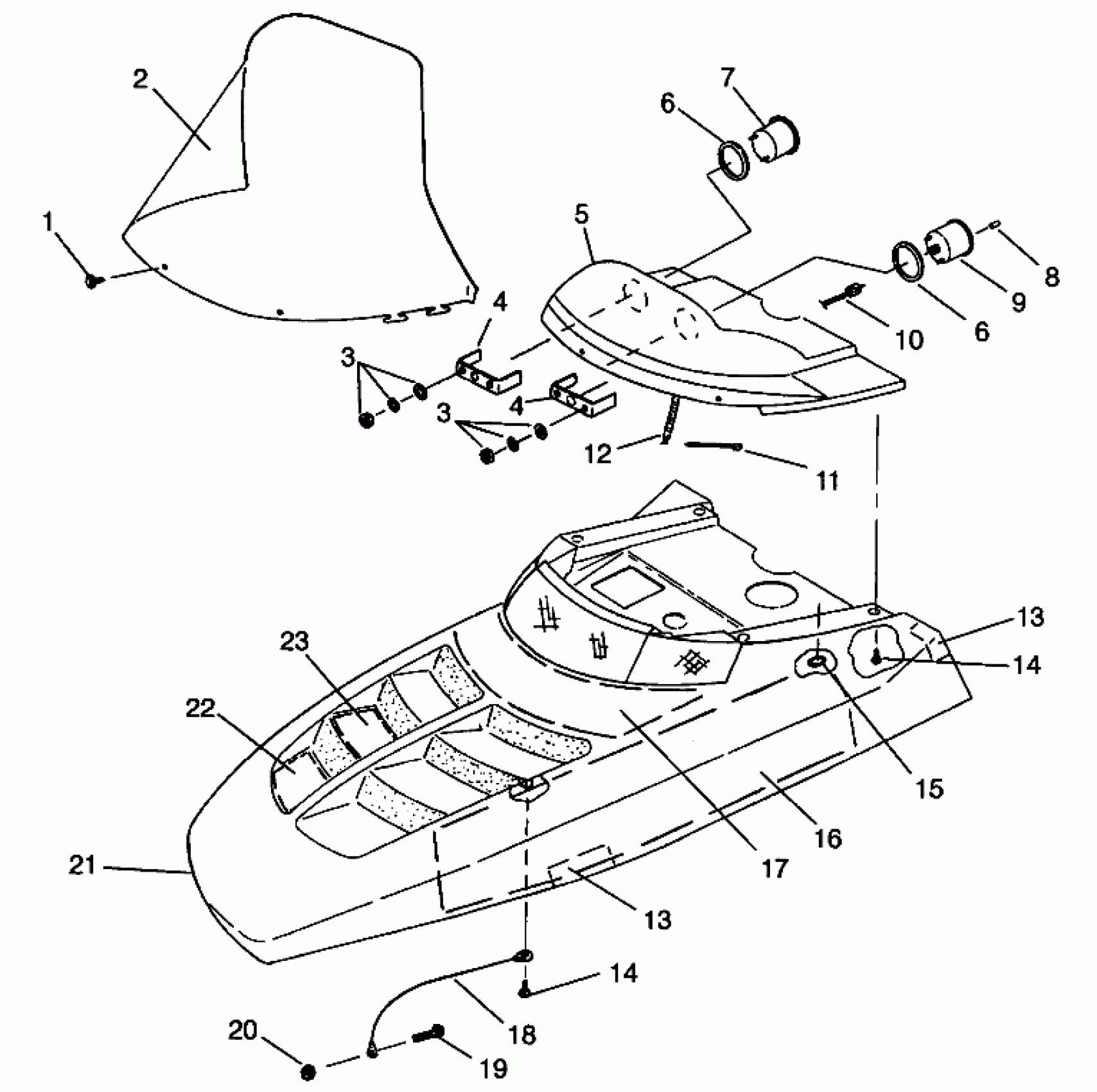

Polaris 500 EFI RMK - 0962974 HOOD 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS E9 (4931983198A011) Diagram
#
Description
Price
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,STD,SMOKE,EV.
5431930
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
HOUSING ASM,INSTR. (Incl. Warning Decals)
2652146
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
7
BULB TAILLIGHT(10)
4030015
$4.03
7
DESC NOT_AVAILABLE (Incl. 3,4,6)
3281205
Unavailable
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
BULB TAILLIGHT(10)
4030015
$4.03
9
SPEEDO,BACKLIT,190 KPH (Incl. 3, 4, 6, 8) (Euro)
3280212
$131.99
9
SPEEDO,BACKLIT (Incl. 3, 4, 6, 8)
3280204
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
10
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
12
HARNESS,H/L,(500EFI)
2460416
$20.13
13
FOIL,TAPE,1.5X6
5810949
$3.19
13
FOIL,TAPE,1.5X6
5810949
$3.19
14
SCREW(10)
7512070
Unavailable
14
SCREW(10)
7512070
Unavailable
15
RETAINER,WINDSHIELD,(10)
5410970
$1.49
16
FOAM,LH,HOOD
5810876
Unavailable
16
FOAM,RH,HOOD
5810877
Unavailable
16
FOIL,RH,HOOD
5810905
Unavailable
17
FOAM,HOOD,CTR.
5810875
Unavailable
18
CABLE,HOOD RETAINER
7080521
$24.27
19
SCREW(10)
7511930
$2.39
20
NUT FLEX LOC(10)
7541906
$3.19
21
HOOD ASM, (Foam & Foil)
2631591-136
Unavailable
22
FOIL,HOOD,FRONT
5810874
Unavailable
23
FOIL,HOOD,CTR.
5810873
Unavailable
