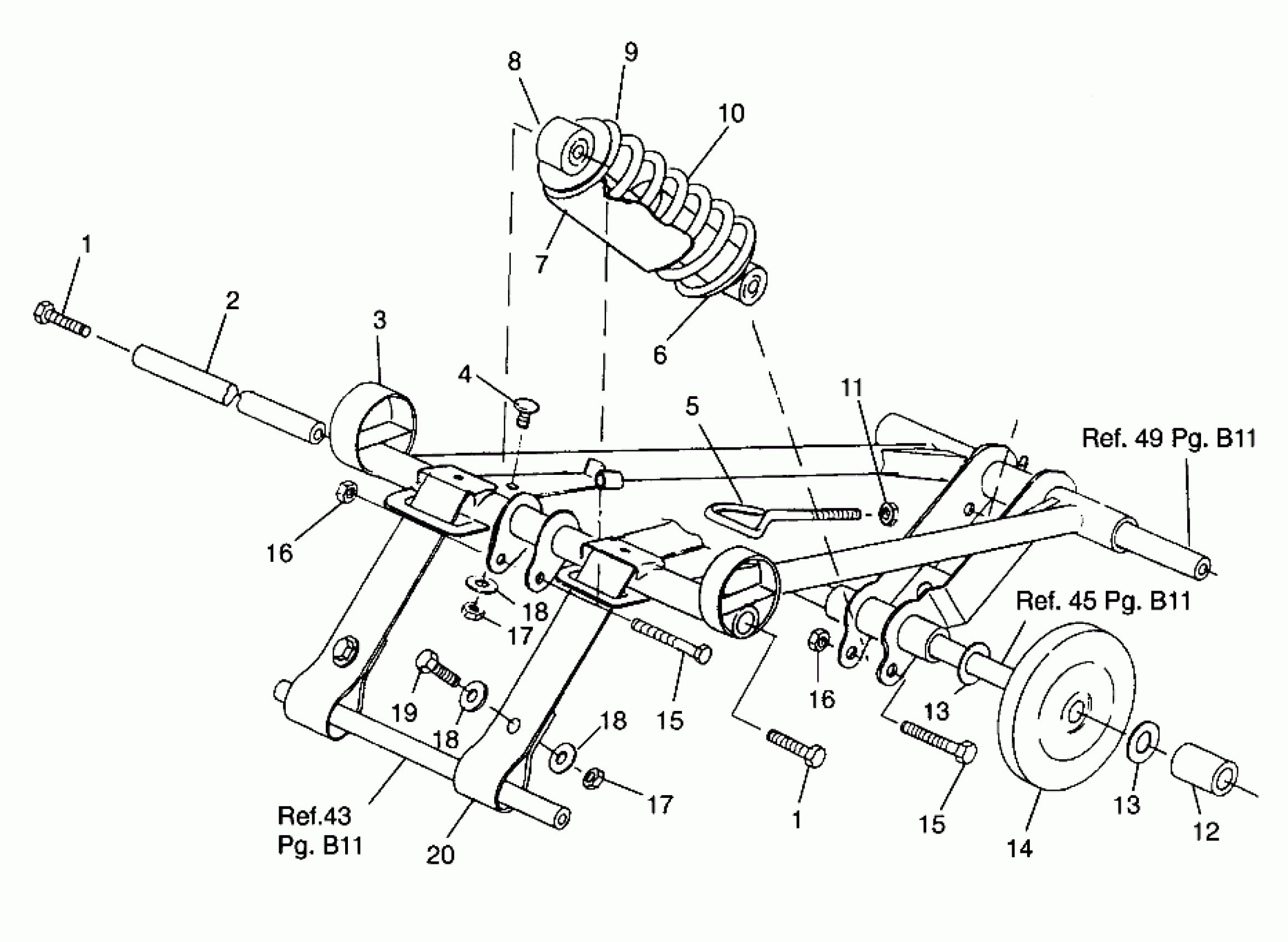

Polaris 500 EFI RMK - 0962974 FRONT TORQUE ARM 500 EFI RMK 0962974 (4931983198B012) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT, MTG, REAR

5020570

Unavailable

3

ARM,FR.TORQUE Substituted by 1541140-067

1540973-067

Unavailable

4

BOLT(10)

7512377

$4.79

5

BOLT,EYE

7010050

Unavailable

6

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

7

SHIELD-SPRING

5430671

$24.27

8

SHOCK,FR.TRACK Substituted by 7041743

7041430

Unavailable

9

RETAINER,SPRING,SLOTTED

5020618

$24.99

10

SPRING,BLACK,COMP.

7041253-067

$95.22

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

SPACER, OUTER

5332784

Unavailable

13

MACHINERY BUSHING(10)

7556301

$3.19

13

MACHINERY BUSHING(10)

7556301

$3.19

14

Asm., Bogie Wheel (See Pg., Ref.)

-------

Unavailable

15

BOLT(10)

7515415

$1.49

15

BOLT(10)

7515415

$1.49

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542321

$1.49

17

NUT LOCK(10)

7542321

$1.49

18

WASHER(10)

7555716

$1.59

18

WASHER(10)

7555716

$1.59

18

WASHER(10)

7555716

$1.59

19

BOLT(10)

7515307

$3.99

20

STRAP,LIMITER,FRONT

5411045

Unavailable
