- 500 EFI RMK - 0962974
CYLINDER 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198C009)

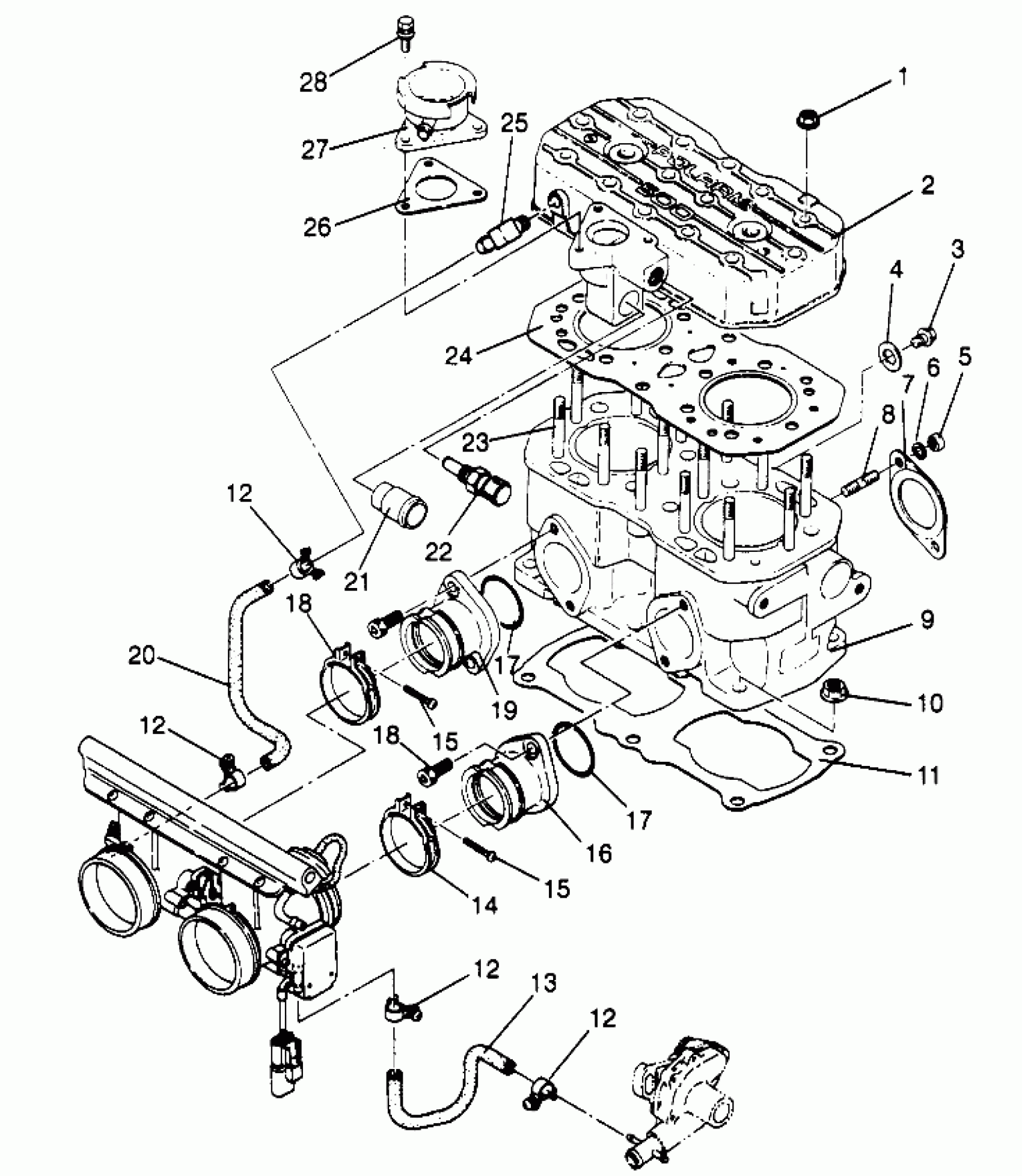

Polaris 500 EFI RMK - 0962974 CYLINDER 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198C009) Diagram
#
Description
Price
1
NUT-FLANGE(10)
3082910
$2.39
2
HEAD, CYL.,CPL. (Incl. 21, 25)
3084331
$329.99
3
Plug
3084491
Unavailable
4
Gasket, Aluminum
3084492
$4.03
5
NUT(10)
3080285
Unavailable
6
WASHER LOCK ,(10)
3080530
$3.19
7
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
8
STUD (10)
3080016
$5.75
9
CYLINDER, CPL. (Incl. 8, 23)
3084330
$629.99
10
NUT-FLANGE(10)
3082911
$1.99
11
Gasket, Base
3084768
$64.99
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
13
HOSE 2, WATER
3084338
Unavailable
14
BAND ASM. (Incl. 15)
3084045
Unavailable
15
SCREW,(10)
3081497
$2.39
15
SCREW,(10)
3081497
$2.39
16
ADAPTER,CPL. RH (Incl. 17)
3084335
Unavailable
17
O-RING
3084229
$7.90
17
O-RING
3084229
$7.90
18
Bolt, Allen
3081330
$3.99
18
Bolt, Allen
3081330
$3.99
19
ADAPTER,CPL, LH (Incl. 17)
3084334
Unavailable
20
HOSE 1,WATER
3084337
Unavailable
21
Pipe, Water
3083452
Unavailable
22
SENSOR,WATER TEMP. Substituted by 3086138
3084333
Unavailable
23
STUD
3083360
Unavailable
24
GASKET, HEAD
3084332
Unavailable
25
PIPE, HEAD
3084390
Unavailable
26
GASKET, FILLER NECK
3083340
Unavailable
27
NECK, FILLER
3083398
Unavailable
28
BOLT&WASHER ASM.
3083361
Unavailable
