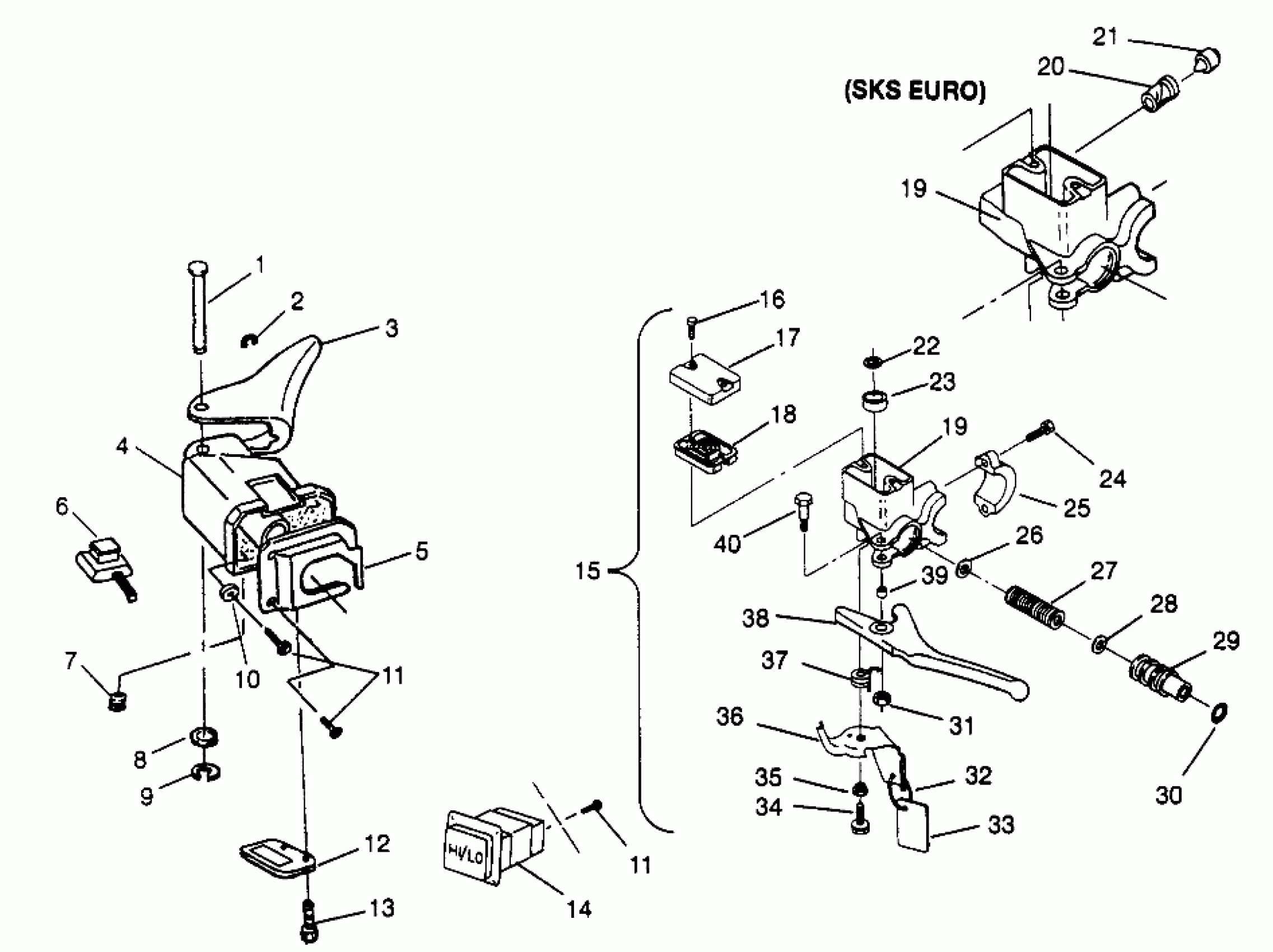

Polaris 500 EFI RMK - 0962974 CONTROLS 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198B005) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

LEVER-THROTTLE

5430652

Unavailable

3

LEVER ASM,HTR.STD 34MM

2010142

Unavailable

4

BLOCK,THROTTLE/BRAKE

5431592

$49.99

5

BLOCK-ADAPTER

5430604

$13.75

6

SWITCH,AUX.SHUT-OFF

4110106

$94.99

7

SCREW(10)

7512465

$3.99

8

WASHER(10)

7555730

$3.99

9

RING-RETAINING EXTERNAL

7710401

$3.99

10

RIVET BURR(50)

7555727

$1.49

11

SCREW-SEMS(10)

7511848

$3.99

11

SCREW-SEMS(10)

7511848

$3.99

12

HOLDER-WIRE

5432261

$24.27

13

SCREW(10)

7511858

$3.99

14

SWITCH, DIMMER

4110136

Unavailable

15

MASTER CYL.ASM,3/4" (Incl. 16-31, 38-40)

2050070

Unavailable

16

SCREW,W/WASHER(10)

7512050

$3.99

17

COVER,MASTER CYL.

5630338

Unavailable

18

GASKET,MASTER CYL.

5410527

$8.99

19

MASTER CYL.ASM,W/GLASS (Euro)

2050071

Unavailable

19

HOUSING,MASTERCYL.

5130955

$293.65

19

MASTER CYL.ASM,W/GLASS (Euro)

2050071

Unavailable

19

HOUSING,MASTERCYL.

5130955

$293.65

20

SEAL, SIGHT GLASS (EURO)

1930660

Unavailable

21

GLASS,SIGHT,MASTER CYL. (EURO)

1930710

Unavailable

22

WASHER, BAFFLE(10)

1930662

Unavailable

23

BAFFLE,MASTER CYL.

1930673

Unavailable

24

BOLT,SOCKET HEAD(10)

7512290

$4.79

25

CLAMP, MASTER CYL.

5630342

Unavailable

26

WASHER(10)

7555708

$3.99

27

SPRING, MASTERCYL.

7041311

Unavailable

28

U PACKING SEAL

5410164

Unavailable

29

PISTON,MASTER CYL.

5020679

Unavailable

30

O RING

5410163

$1.60

31

NUT(10)

7542124

Unavailable

32

STRAP,PARK.BRAKE TAG

7080447

Unavailable

33

TAG,PARK.BRAKE

5431389

Unavailable

34

SCREW(10)

7511866

$4.79

35

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

36

LEVER,PARK.BRAKE

5240809

Unavailable

37

SPRING,PK.BRAKE

7041229

$32.37

38

LEVER, BRAKE

5630409

Unavailable

39

BUSHING,BRAKE LEVER

5332931

Unavailable

40

BOLT,BRAKE LEVER(10)

7512287

Unavailable
