THROTTLE BODY ASSEMBLY 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618C011)

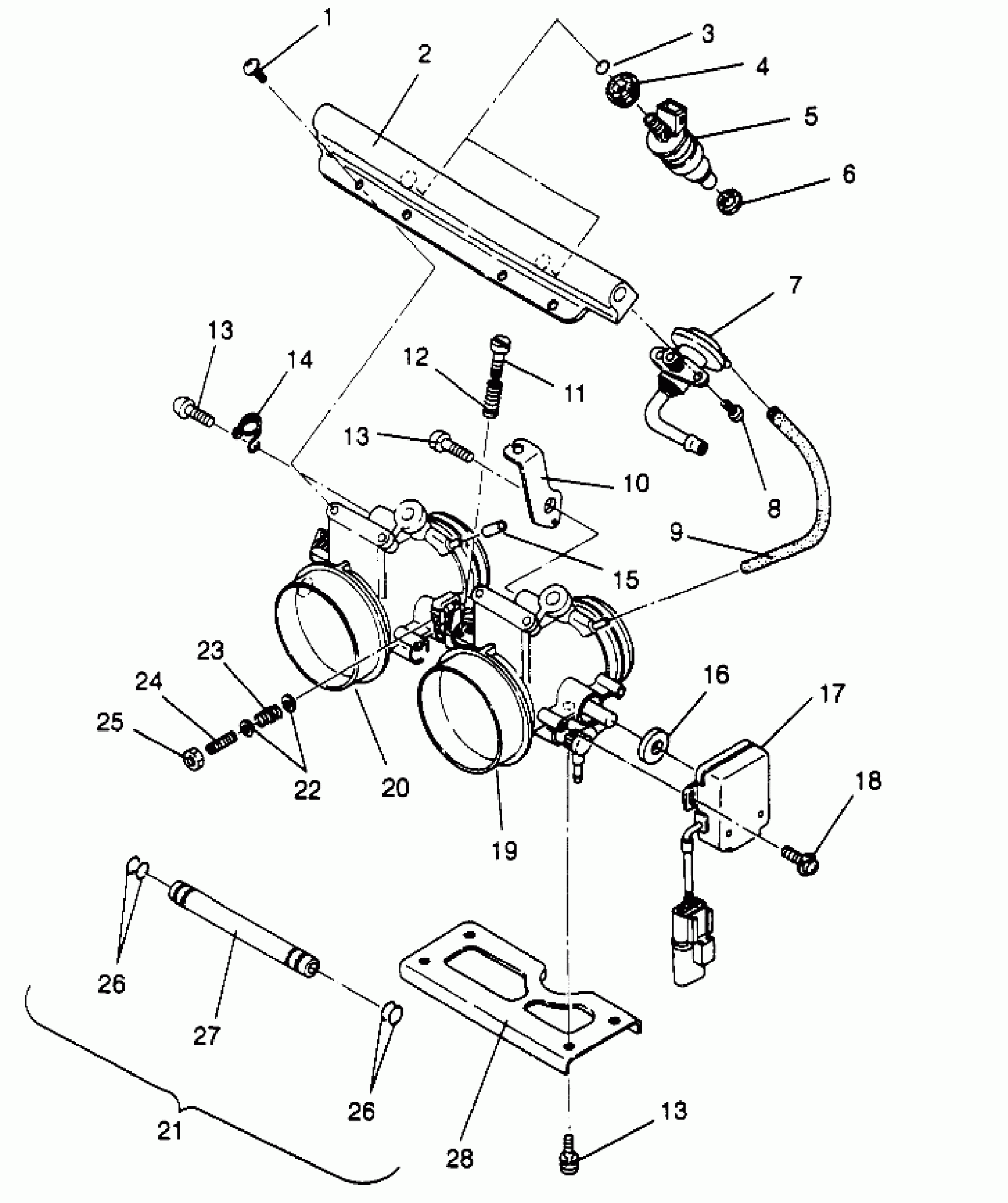

Polaris 500 EFI - 0963774 THROTTLE BODY ASSEMBLY 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618C011) Diagram
#
Description
Price
1
SCREW
3084359
Unavailable
2
PIPE,FUEL DELIVERY
3084363
Unavailable
3
O RING, CONNECTOR
3084057
Unavailable
4
INSULATOR,UPPER
3084058
Unavailable
5
INJECTOR, FUEL (Incl. 3, 4)
3084056
Unavailable
6
INSULATOR,LOWER
3084059
Unavailable
7
REGULATOR ASM.
3084351
Unavailable
8
SCREW
3084065
Unavailable
9
PIPE, RUBBER
3084393
Unavailable
10
WIRE STAY
3084364
Unavailable
12
SPRING
3084069
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
14
CLAMP, HOSE
3084312
Unavailable
15
CAP, RUBBER
3084077
Unavailable
16
GASKET
3084385
Unavailable
17
SENSOR ASM,THROTTLE
3084616
Unavailable
19
THROTTLEBODY 3 ASM.
3084311
Unavailable
20
THROTTLEBODY 1 ASM.
3084309
Unavailable
21
THROTTLEBODY ASM. (Incl. 1-28)
3084350
Unavailable
22
WASHER(10)
3084070
Unavailable
23
SPRING
3084071
Unavailable
25
NUT
3084072
Unavailable
26
O RING
3084063
Unavailable
26
O RING
3084063
Unavailable
