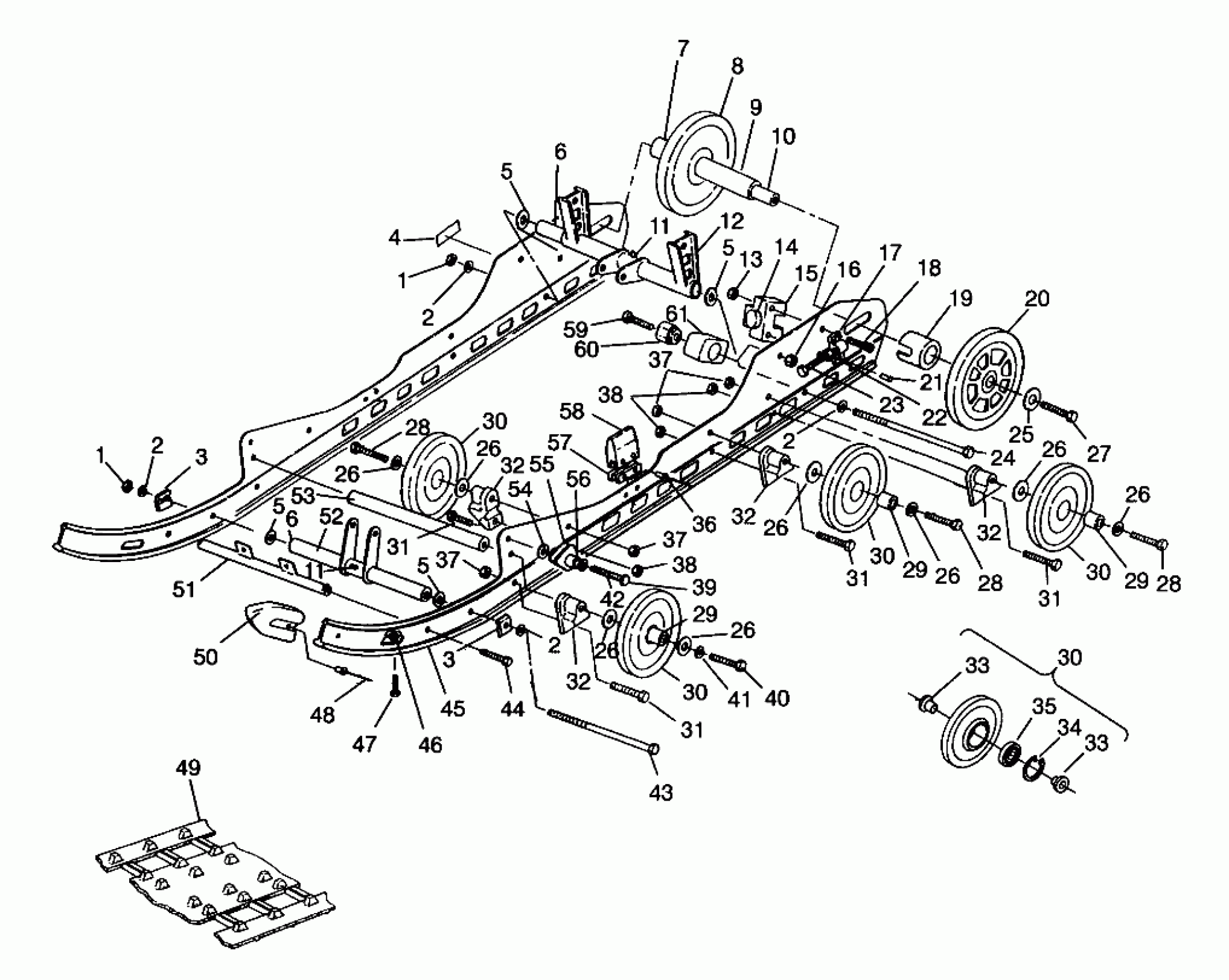

Polaris 500 EFI - 0963774 SUSPENSION 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618B010) Diagram

#

Description
Price

-

RAIL ASM,LH,(XTRA-12) (Incl. 17, 48, 57, 58)

1540998

Unavailable

-

RAIL ASM,RH,(XTRA-12) (Incl. 17, 48, 57, 58)

1540999

Unavailable

1

NUT FLEX LOC,(10)

7542402

$6.39

1

NUT FLEX LOC,(10)

7542402

$6.39

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

BOSS,BOLT HEAD

5131112

$19.99

3

BOSS,BOLT HEAD

5131112

$19.99

4

DECAL,"PAT.PENDING"

7074922

Unavailable

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

5

WASHER(10)

7555893

$1.49

6

SHAFT

5333404

$24.27

6

SHAFT

5333404

$24.27

7

SPACER INNER IDLER

5010169

Unavailable

8

WHEEL, IDLER Substituted by 1594079-070 (Black)

1594021

Unavailable

9

SPACER,IDLER,R.INNER

5333086

Unavailable

10

SHAFT,IDLER

5020722

Unavailable

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

ARM,PIVOT,RR.

1540975-067

Unavailable

13

NUT, LOCK(10)

7542103

$5.59

14

BUMPER,R.PIVOT ARM

5410937

$5.75

15

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable

16

NUT LOCK(10)

7542403

$3.99

17

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

18

SCREW(10)

7515156

$3.99

19

SPACER-IDLER-OUTER

5332641

Unavailable

20

WHEEL,IDLER,OUTER,RED (Red)

1594039

Unavailable

21

RIVET,(50)

7621501

$2.39

22

NUT(10)

7542440

Unavailable

23

BOLT, ADJUSTER(10)

7515455

$29.99

24

SCREW Substituted by 7517353

7515549

Unavailable

25

WASHER(10) Substituted by 7556130

7571629

Unavailable

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

26

WASHER, FLAT(10)

7555852

$2.39

27

BOLT(10)

7515526

$1.19

28

BOLT(10)

7512538

$6.39

28

BOLT(10)

7512538

$6.39

28

BOLT(10)

7512538

$6.39

29

SPACER, WHEEL

5333116

$7.99

29

SPACER, WHEEL

5333116

$7.99

29

SPACER, WHEEL

5333116

$7.99

30

WHEEL, IDLER (Incl. 33-35)

1543018

$56.65

30

WHEEL, IDLER (Incl. 33-35)

1543018

$56.65

30

WHEEL, IDLER (Incl. 33-35)

1543018

$56.65

30

WHEEL, IDLER (Incl. 33-35)

1543018

$56.65

30

WHEEL, IDLER (Incl. 33-35)

1543018

$56.65

31

BOLT(10)

7512404

$3.99

31

BOLT(10)

7512404

$3.99

31

BOLT(10)

7512404

$3.99

31

BOLT(10)

7512404

$3.99

32

SPACER

5630399

$11.99

32

SPACER

5630399

$11.99

32

SPACER

5630399

$11.99

32

SPACER

5630399

$11.99

33

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

34

RET.RING-TRUARC (1 per)

7718407

$4.79

35

BEARING (1 per)

3514303

$11.99

36

RIVET,(50)

7621488

$3.99

37

NUT, NYLOCK(10)

7542525

$4.79

37

NUT, NYLOCK(10)

7542525

$4.79

37

NUT, NYLOCK(10)

7542525

$4.79

38

NUT-LOCK(10)

7542439

$1.49

38

NUT-LOCK(10)

7542439

$1.49

39

BOLT(10)

7515538

$6.39

40

BOLT(10)

7512508

$7.19

41

WASHER LOCK(10)

7553101

$3.99

42

WASHER(10)

7555797

$3.99

43

BOLT

7515546

Unavailable

44

BOLT

7515542

Unavailable

45

SLIDER,BLACK(2)

5521320

Unavailable

46

NUT-LOCK(10)

7542122

$1.49

47

SCREW(10)

7515153

$3.99

48

RIVET(50)

7621435

$1.49

49

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

49

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

49

TRACK,121",CAMO. Substituted by 5411057

5411005

Unavailable

50

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

51

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

52

ARM,SHOCK PIVOT

1540968-067

$49.59

53

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

54

WASHER(10)

7555743

Unavailable

55

BLOCK,SPRING SLIDER

5431924

$10.65

56

Bushing

5010332

$11.99

57

BRKT,BUMPER SUPPORT

5240946

Unavailable

58

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

59

BOLT(10)

7515537

$10.99

60

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

61

BUMPER,F.PIVOT ARM

5410925

$12.94
