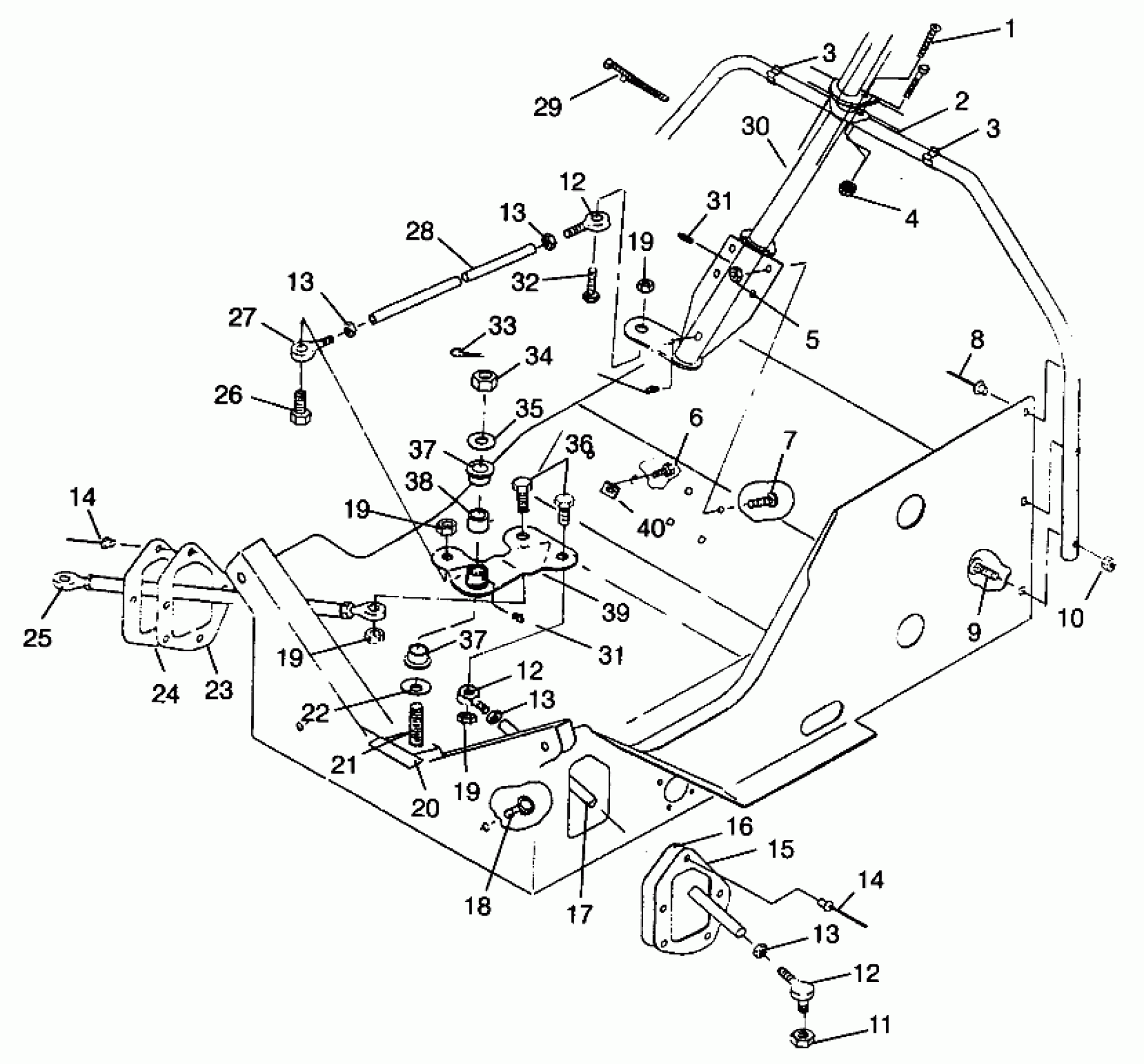

Polaris 500 EFI - 0963774 STEERING 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618B004) Diagram

#

Description
Price

1

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

2

HOOP,STEERING

1012335-067

Unavailable

3

CLIP(10)

7080278

$2.63

3

CLIP(10)

7080278

$2.63

4

NUT(10)

7542124

Unavailable

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

BOLT(10)

7512193

$2.39

7

BOLT(10) Substituted by 7512377

7512394

Unavailable

8

RIVET-3/16-.090-.290

7661637

$1.49

9

BOLT-CARRIAGE(10)

7512275

$3.99

10

NUT, LOCK(10)

7542103

$5.59

11

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

12

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

12

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

12

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

13

NUT HEX(10)

7542401

$2.39

13

NUT

7542424

$1.49

14

RIVET(50)

7621340

$0.56

14

RIVET(50)

7621340

$0.56

15

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

16

BOOT,LH,TIE-ROD

5410867

Unavailable

17

ROD,TIE,BLK Substituted by 5020819-067 (EFI)

5020853-067

Unavailable

18

CLIP, PLASTIC(10)

4020139

$4.79

19

NUT LOCK(10)

7542403

$3.99

19

NUT LOCK(10)

7542403

$3.99

19

NUT LOCK(10)

7542403

$3.99

19

NUT LOCK(10)

7542403

$3.99

20

BLOCK,STRG,(CAST)

5630563

$32.37

21

BOLT(10)

7512682

Unavailable

22

WASHER,WAVE(10)

7555735

$3.99

23

DESC NOT_AVAILABLE

5410868-067

Unavailable

24

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

25

ROD END, RH.

7060165

$48.56

26

BOLT(10)

7512404

$3.99

27

ROD END, LH.

7060164

$48.56

28

ROD-DRAG LINK

5332712

Unavailable

29

STRAP, BLK

7080272

Unavailable

30

POST,STEERING

1822257-067

Unavailable

31

ZERK,FITTING,THREADED(10)

7080433

$1.49

31

ZERK,FITTING,THREADED(10)

7080433

$1.49

32

BOLT(10) Substituted by 7515492

7512410

Unavailable

33

PIN COTTER(10)

7661203

$1.49

34

NUT FLEX,(10)

7542703

Unavailable

35

WASHER(10)

7555721

$1.49

36

BOLT(10)

7515528

$8.79

37

BUSHING

3563907

$3.99

37

BUSHING

3563907

$3.99

38

BUSHING

5010340

Unavailable

39

STRG.ASM,CTR.

1822212

Unavailable

40

SPEED NUT(10)

7670021

$6.99
