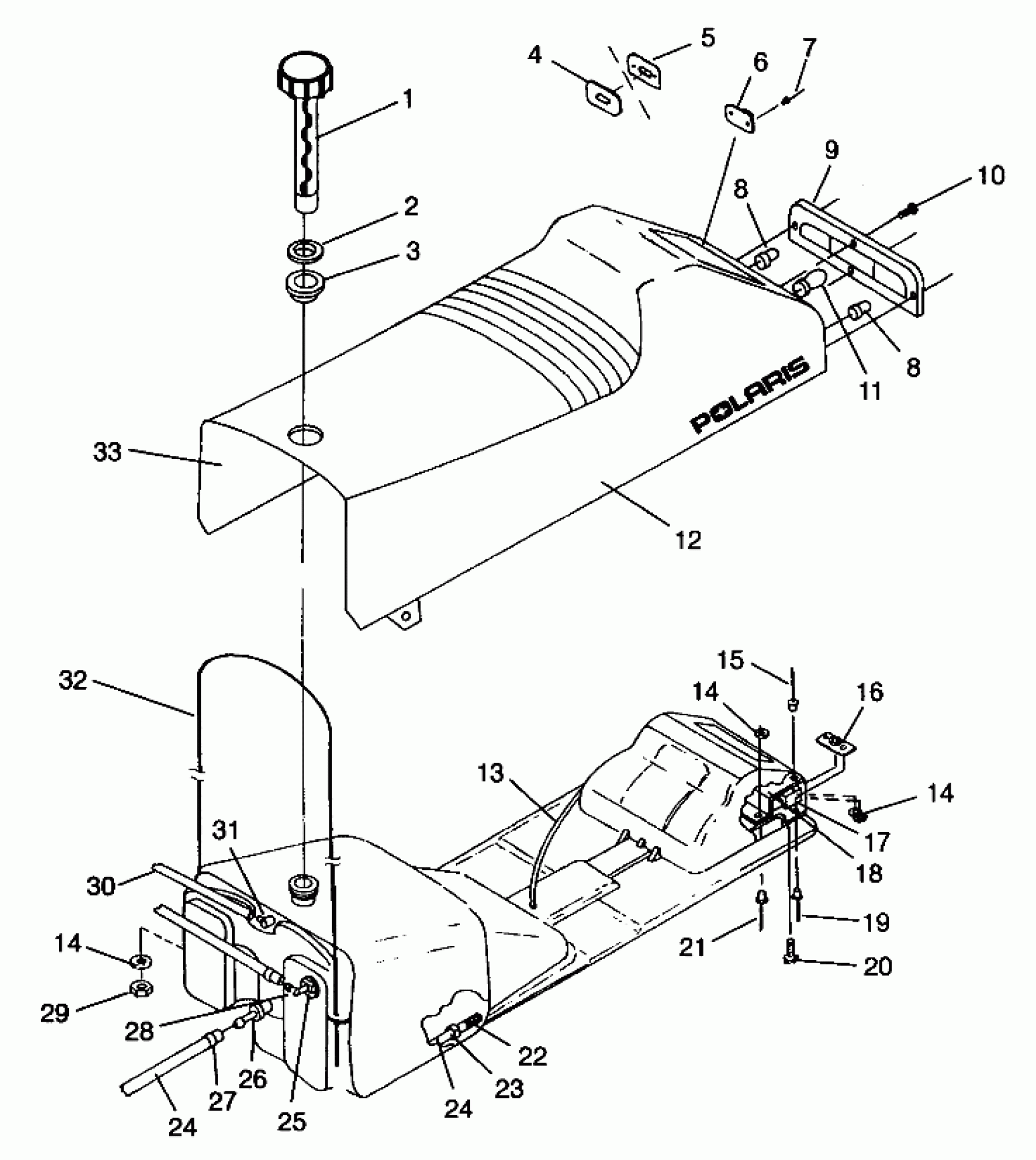

Polaris 500 EFI - 0963774 SEAT and GAS TANK ASSEMBLY 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618A007) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410815

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

7

RIVET(50)

7621337

$1.49

8

BULB,TAILLIGHT(10)

4030024

$4.84

8

BULB,TAILLIGHT(10)

4030024

$4.84

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

Bulb, Brakelight

4030045

Unavailable

12

COVER ASM,SEAT,LONG

2681858

Unavailable

13

HARNESS,TAILLIGHT

2460398

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

RIVET, BLIND(50)

7621467

$1.49

16

NUT,RETAINER-WELD.(10)

7542147

$17.59

17

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

18

COVER,T/L PROTECTOR

5431436

$21.43

19

RIVET(50)

7621301

$3.99

20

SCREW(10)

7512242

$2.39

21

RIVET(50)

7621464

$3.99

22

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

23

RING, COMPRESSION(10)

7080402

$1.60

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

GROMMET-TANK FITTING(10)

7052028

$6.39

26

FITTING - OUTLET(10)

7052023

$24.99

27

CLAMP, HOSE

7080490

Unavailable

28

FITTING,TANK OUTLET(5/16)

7052059

Unavailable

29

NUT(10)

7541925

$1.49

30

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

31

FITTING,90 DEG,1/8,(10)

7052095

$4.79

32

CABLE,TANK,RETENTION

7080559

Unavailable

33

SEAT ASM,LONG (Incl. 4-11, 13-26, 28, 29, 31)

2681864

$399.99
