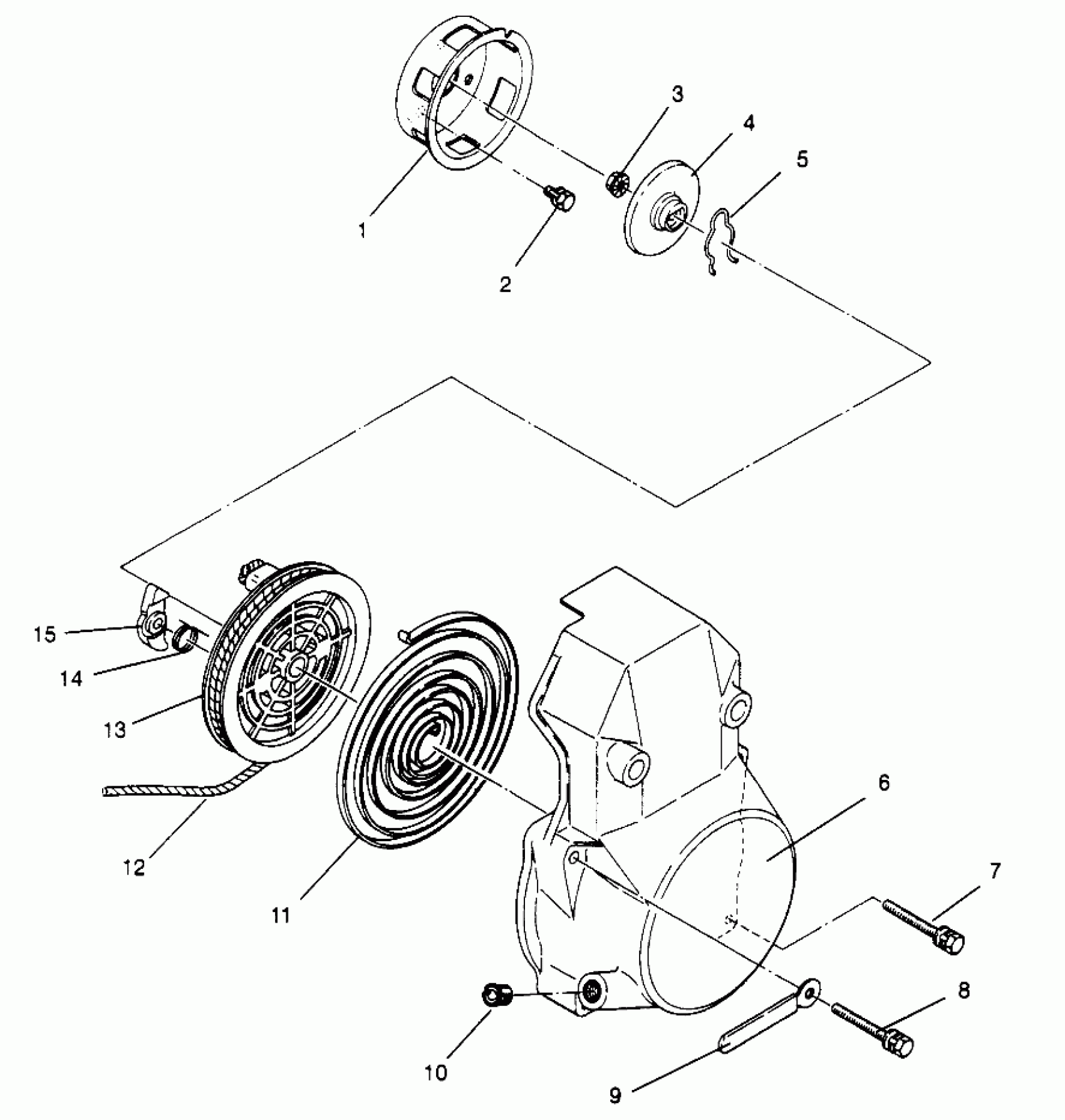

Polaris 500 EFI - 0963774 RECOIL STARTER ASSEMBLY 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618D001) Diagram

Description

Price

Pulley, Starting

3083312

$36.41

BOLT&WASHER ASM.

3084224

Unavailable

NUT, FLANGE ,(10)

3083381

$2.99

Plate, Friction

3083464

$28.32

Spring, Friction

3083379

$24.27

STARTER, RECOIL ASM. (Incl. 3-6, 10, 11, 13-15)

3083461

Unavailable

CASE, STARTER

3083462

Unavailable

BOLT&WASHER ASSY.

3083615

Unavailable

BOLT&WASHER ASM.

3083382

$8.79

Clamp

3083384

Unavailable

GUIDE-ROPE

3083107

Unavailable

Spring, Spiral

3083376

$179.11

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

REEL, REWIND

3083377

$56.65

Spring, Return

3083463

$4.03

Ratchet

3083378

$20.22
