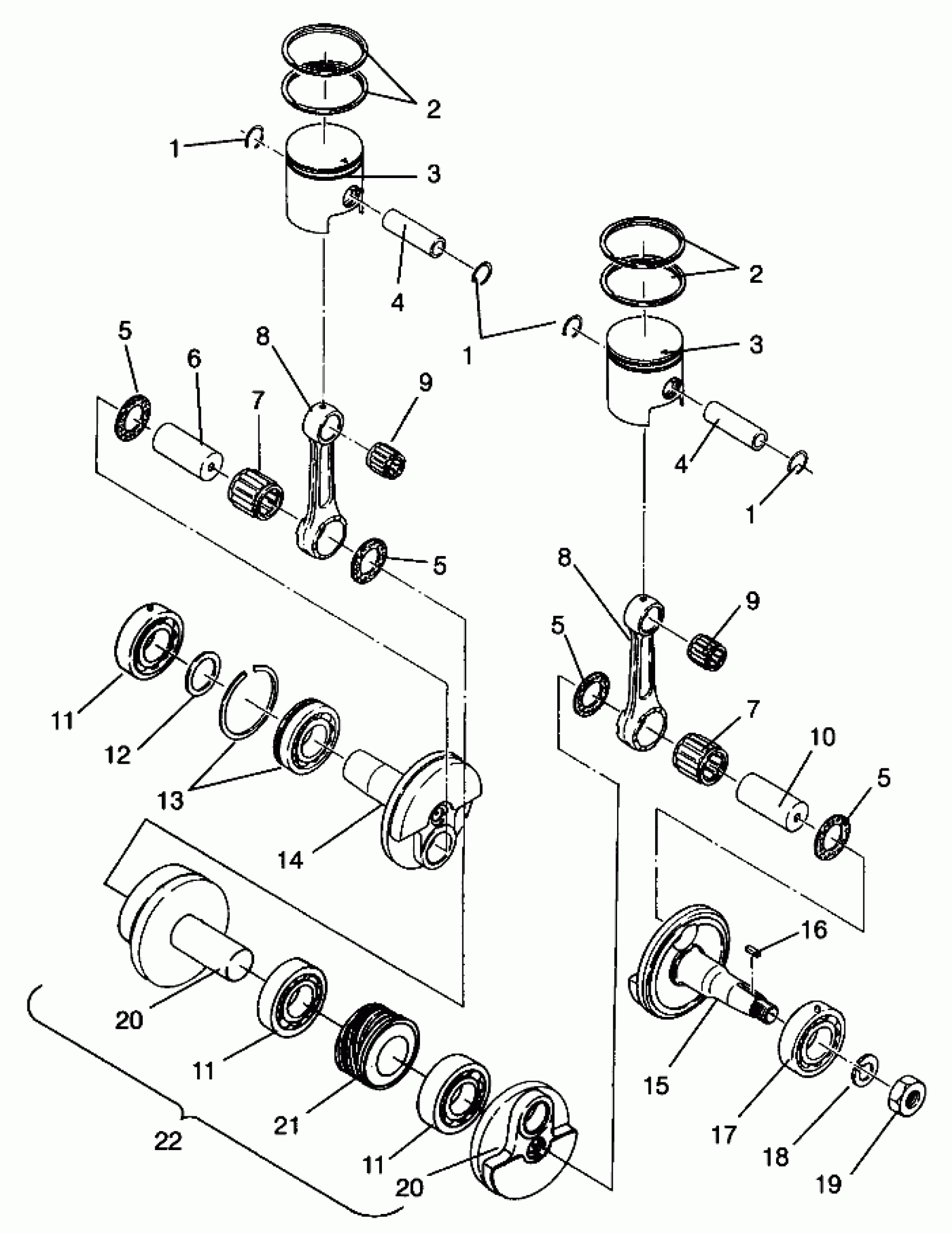

Polaris 500 EFI - 0963774 PISTON and CRANKSHAFT 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618C010) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)

3084344

$66.65

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)

3084344

$66.65

3

PISTON,(.010 O/S) (0.25m/.010" O/S)

3084340

Unavailable

3

PISTON, (.020 O/S) (0.50m/.020" O/S)

3084341

Unavailable

3

PISTON, STD. (Standard)

3084339

Unavailable

3

PISTON,(.010 O/S) (0.25m/.010" O/S)

3084340

Unavailable

3

PISTON, (.020 O/S) (0.50m/.020" O/S)

3084341

Unavailable

3

PISTON, STD. (Standard)

3084339

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

PIN, CRANK, 2 (57mm)

3083456

Unavailable

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK (56mm)

3083233

$36.41

11

BALL BEARING

3085205

Unavailable

11

BALL BEARING

3085205

Unavailable

11

BALL BEARING

3085205

Unavailable

12

DESC NOT_AVAILABLE

3085237

Unavailable

13

BALL BEARING

3085204

Unavailable

14

CRANKSHAFT 3 (PTO Side)

3085202

Unavailable

15

CRANKSHAFT #1 (Mag Side)

3083362

Unavailable

16

KEY

3081447

Unavailable

17

BEARING, BALL

3084586

$44.99

18

WASHER-SPRING(10)

3083094

$3.17

19

NUT

3083093

$19.99

20

CRANKSHAFT 2 (Incl. 6, 10)

3083713

$583.49

20

CRANKSHAFT 2 (Incl. 6, 10)

3083713

$583.49

21

GEAR,DRIVE,OIL PUMP

3083782

$102.13

22

CRANKSHAFT ASM (Incl. 5-8, 10, 12-15, 17, 20)

3085206

$1,299.99
