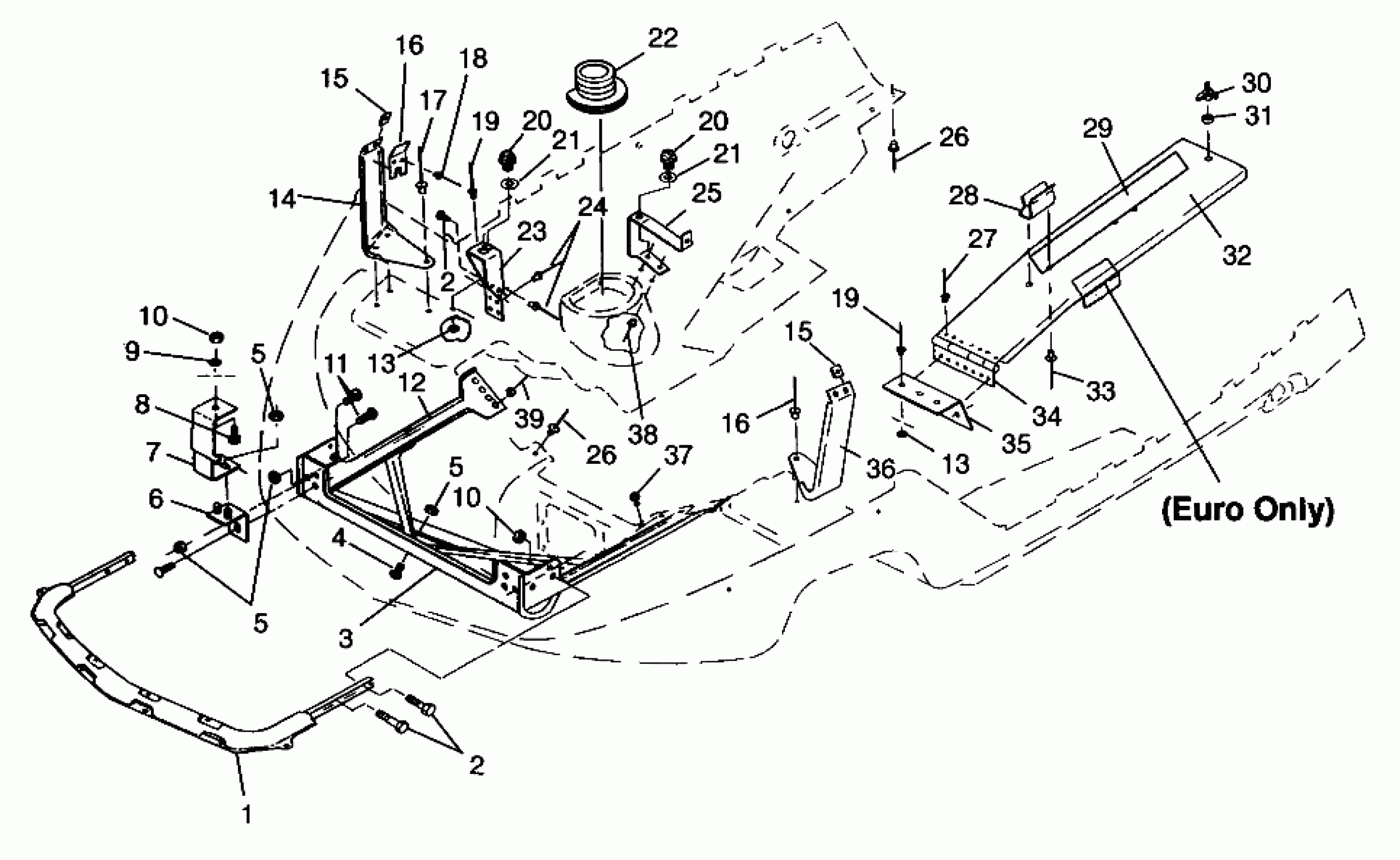

Polaris 500 EFI - 0963774 NOSEPAN 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618A010) Diagram

#

Description
Price

1

BUMPER,FRONT

2670146-067

Unavailable

2

SCREW(10)

7512307

$3.99

2

SCREW(10)

7512307

$3.99

3

BRACE,HD.SUPPORT,BLK.

5241003-067

$49.21

4

BOLT(10)

7512298

$3.99

5

NUT(10)

7542153

$1.59

5

NUT(10)

7542153

$1.59

5

NUT(10)

7542153

$1.59

6

MOUNT,HINGE,BLK.

1011982-067

$45.99

7

HINGE ASM,HOOD,BLK.

2635013-067

Unavailable

8

SCREW(10)

7512310

$2.39

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

NUT FLEX-LOC(10)

7542303

$6.39

10

NUT FLEX-LOC(10)

7542303

$6.39

11

BOLT(10)

7512193

$2.39

12

SUPPORT,LH,BUMPER

1012327-067

$63.49

12

SUPPORT,RH,BUMPER

1012328-067

$133.29

13

BURR,RIVET(50)

7555904

$1.49

13

BURR,RIVET(50)

7555904

$1.49

14

BRKT,RH,SIDEPANEL

5240995

Unavailable

15

NUT, RETAINER(10)

7542146

Unavailable

15

NUT, RETAINER(10)

7542146

Unavailable

16

SHIELD,FASTENER

5240769

$0.90

16

SHIELD,FASTENER

5240769

$0.90

17

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621318

$1.49

19

RIVET(50)

7621433

$1.49

19

RIVET(50)

7621433

$1.49

20

DAMPNER, VIB.

5410467

$8.79

20

DAMPNER, VIB.

5410467

$8.79

21

WASHER, THRUST(10)

7555788

$4.99

21

WASHER, THRUST(10)

7555788

$4.99

22

Boot, Exhaust

5410502

$24.27

23

SUPPORT,MUFFLER,BLK.

1260724-067

$92.99

24

RIVET-3/16-.090-.290

7661637

$1.49

25

BRKT,R.MUFFLER SUPPORT

5240715-067

Unavailable

26

RIVET, BLIND(50)

7621467

$1.49

26

RIVET, BLIND(50)

7621467

$1.49

27

RIVET, POP(50)

7621330

$1.49

28

CLIP,BELT RETAINER

5222769

$8.79

29

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

30

KNOB,CLUTCH GUARD(10)

7080523

$4.03

31

BUMPER,CLUTCHGUARD

5431928

$2.39

32

GUARD,CLUTCH

5240999

Unavailable

32

GUARD ASM,CLUTCH,EV,(EURO) (Euro)

1012430

Unavailable

33

RIVET(50)

7621429

$1.49

34

HINGE

5210728

Unavailable

35

MT,FR.CLUTCHGUARD

5222904

Unavailable

36

BRKT,LH,SIDEPANEL

5240994-067

Unavailable

37

CLIP, PLASTIC(10)

4020139

$4.79

38

RIVET(50)

7621472

$1.49

39

RIVET,INTERLOCK,B(50)

7661638

$1.49
