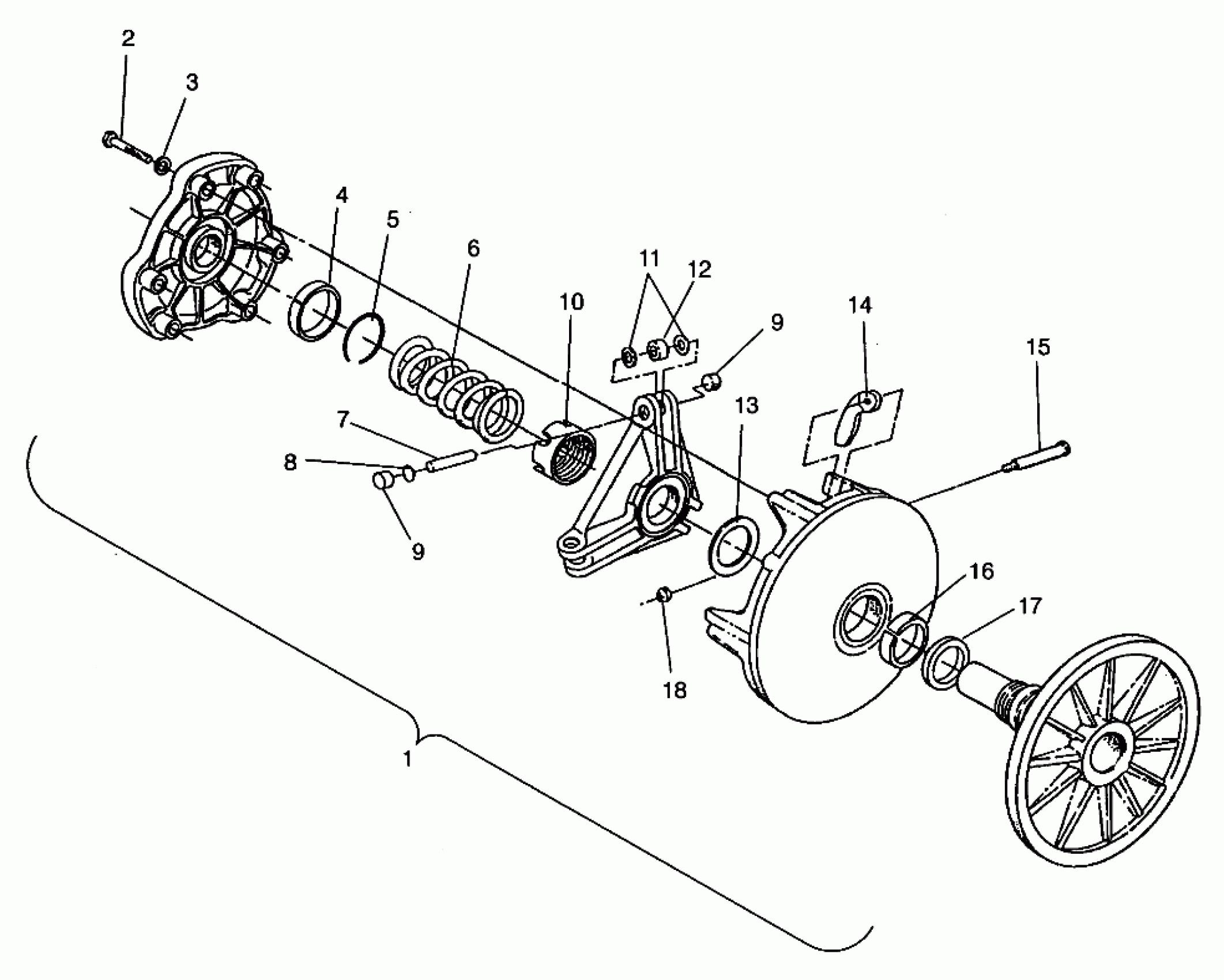

Polaris 500 EFI - 0963774 DRIVE CLUTCH 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618B014) Diagram

Description

Price

KIT,CLUTCH UPDATE (Incl. 7-9, 11, 12, 15)

2200386

$161.89

CLUTCH,BASIC#59(DRIVE) Substituted by 1321718 (Less 6, 14)

1321670

Unavailable

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

BEARING, COVER,(10)

3576510

$9.59

RING-RETAINING,COVER

7710417

$1.49

SPRING-CLUTCH(GOLD) (Gold)

7041148

$56.65

PIN-ROLLER

5020422

$2.39

Kit - Shim, Drive Clutch

2200387

$24.27

BUTTON, GUIDE,(10)

5430445

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

NUT-JAM

5020425

$23.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

SPACER(10)

5210754

Unavailable

SPACER(10)

5210752

Unavailable

SPACER(10)

5210753

Unavailable

WT/BUSH.ASM,10M(3) (10M)

1321528

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

SLEEVE, BEARING

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

NUT FLEX LOC(10)

7541906

$3.19
