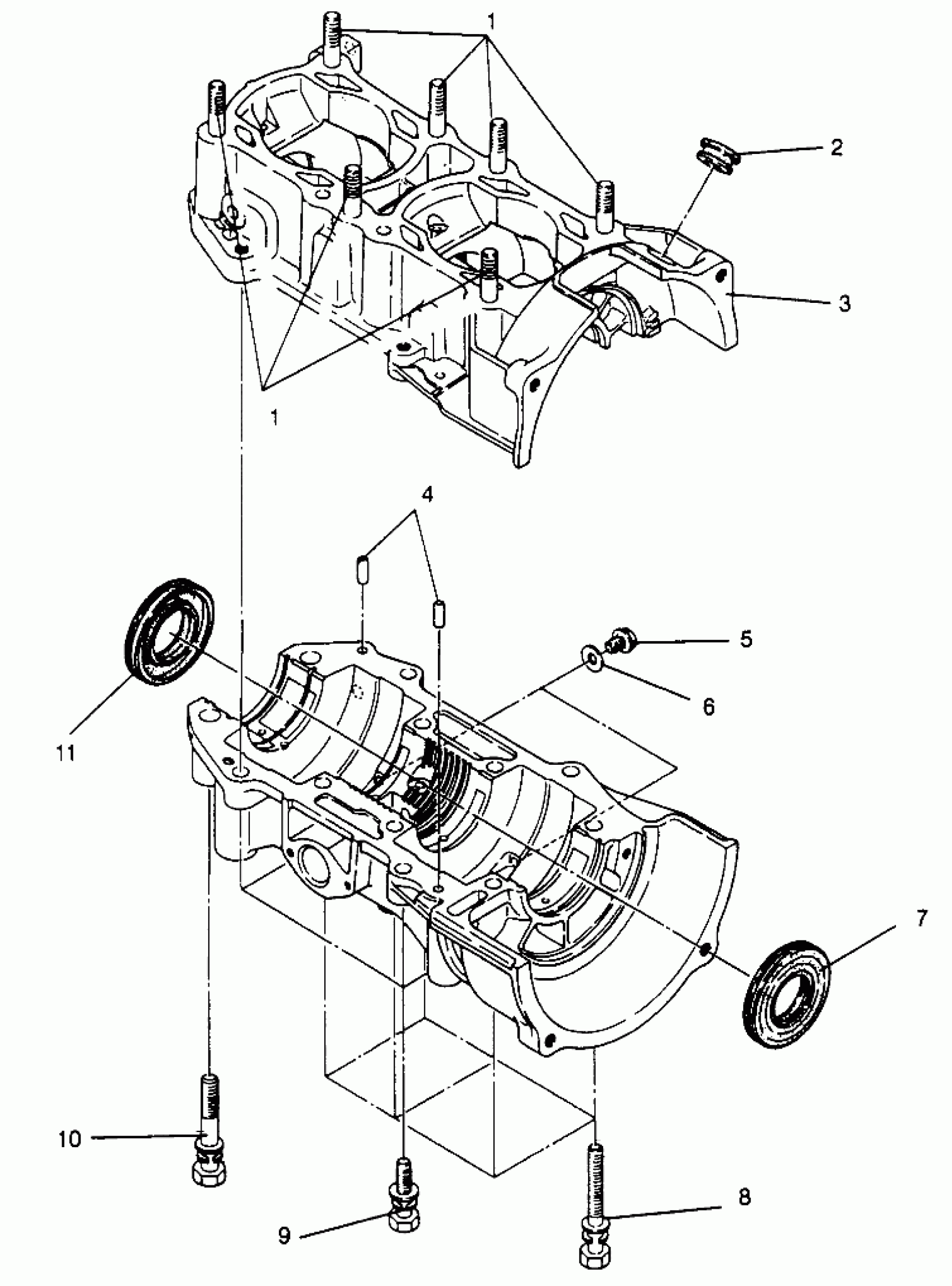

Polaris 500 EFI - 0963774 CRANKCASE ASSEMBLY 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618C007) Diagram

#

Description

Price

1

STUD Substituted by 3084119

3080745

Unavailable

1

STUD Substituted by 3084119

3080745

Unavailable

2

GROMMET

3082875

$7.99

3

CRANKCASE (Incl. 1, 4, 8-10)

3085236

$707.23

4

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

5

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

SEAL, OIL(10) (MAG Side)

3083045

$36.41

8

BOLT W/WASHER

3080739

$6.39

9

BOLT&WASHER

3083078

Unavailable

10

BOLT&WASHER ASM.

3084220

$8.79

11

SEAL, OIL (PTO Side)

3085200

$36.41
