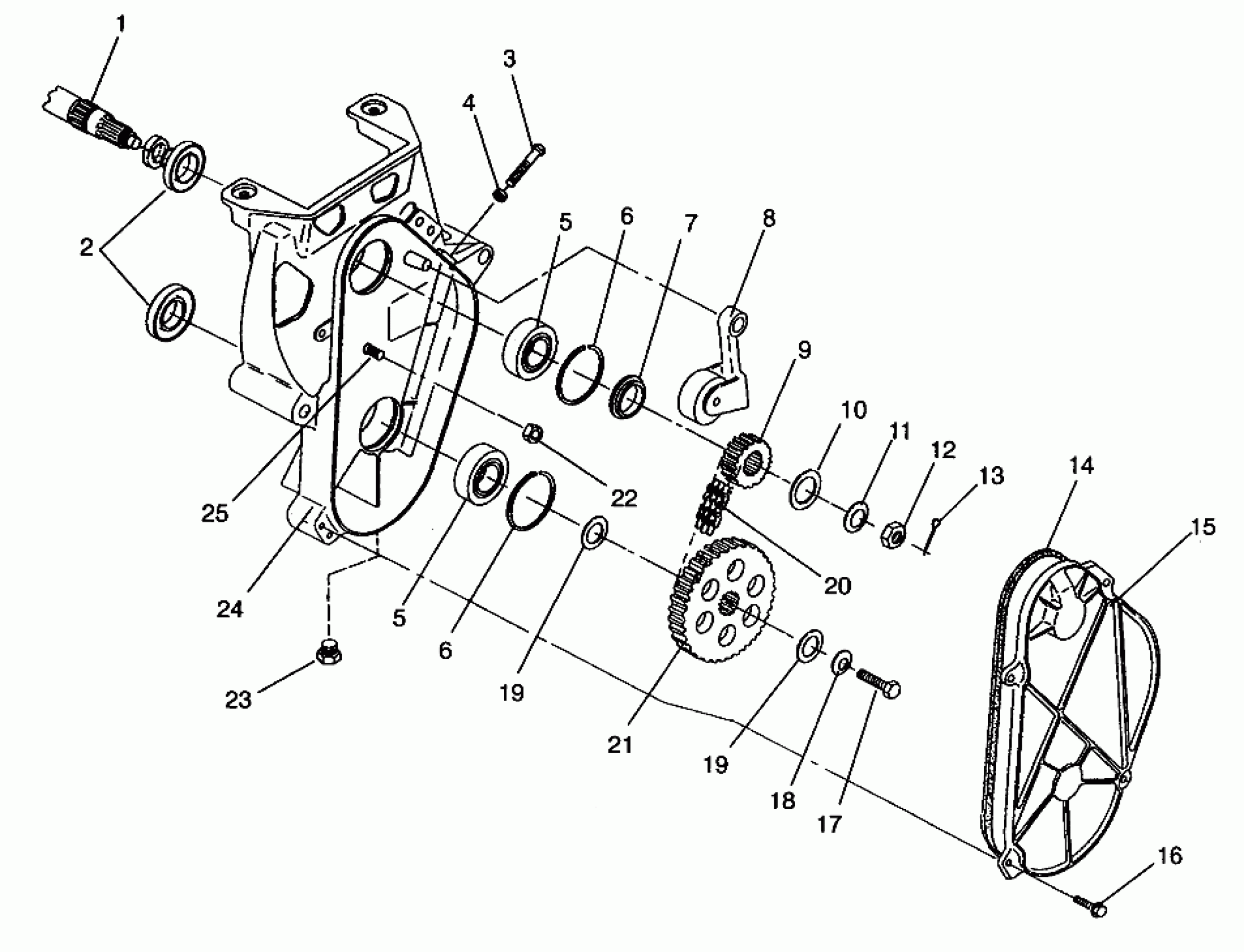

Polaris 500 EFI - 0963774 CHAINCASE 500 EFI 0963774 and EUROPEAN 500 EFI E963774 (4936183618B008) Diagram

#

Description
Price

1

Asm., Jackshaft (See Pg., Ref.)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING

3514308

Unavailable

5

BEARING

3514308

Unavailable

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPACER,SPROCKET

5010359

Unavailable

8

PIN,CHAIN TIGHTENER

7662210

Unavailable

8

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

8

BEARING

3553002

$11.99

8

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

8

WHEEL,C/C IDLER

5630123

Unavailable

8

WASHER THRUST(10)

7558702

$1.59

9

SPKT,21T,11W,15T (EFI)

3221066

Unavailable

10

BUSHING(10)

7555863

$2.39

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT

7542811

Unavailable

13

COTTER PIN(10)

7661401

$1.49

14

GASKET-CHAINCASE

5410277

$24.99

15

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

16

SCREW(10)

7512242

$2.39

17

SCREW(10) (RMK)

7515350

$3.97

18

WASHER(10)

7571618

$6.39

19

BUSHING(10)

7555864

$2.39

19

BUSHING(10)

7555864

$2.39

20

CHAIN 66 PITCH

3224024

Unavailable

21

SPROCKET,39T,(13W)

3222052

Unavailable

22

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

23

PLUG(10)

7052115

$5.65

24

CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568

5131121

Unavailable

25

BOLT(10)

7515477

$34.99
