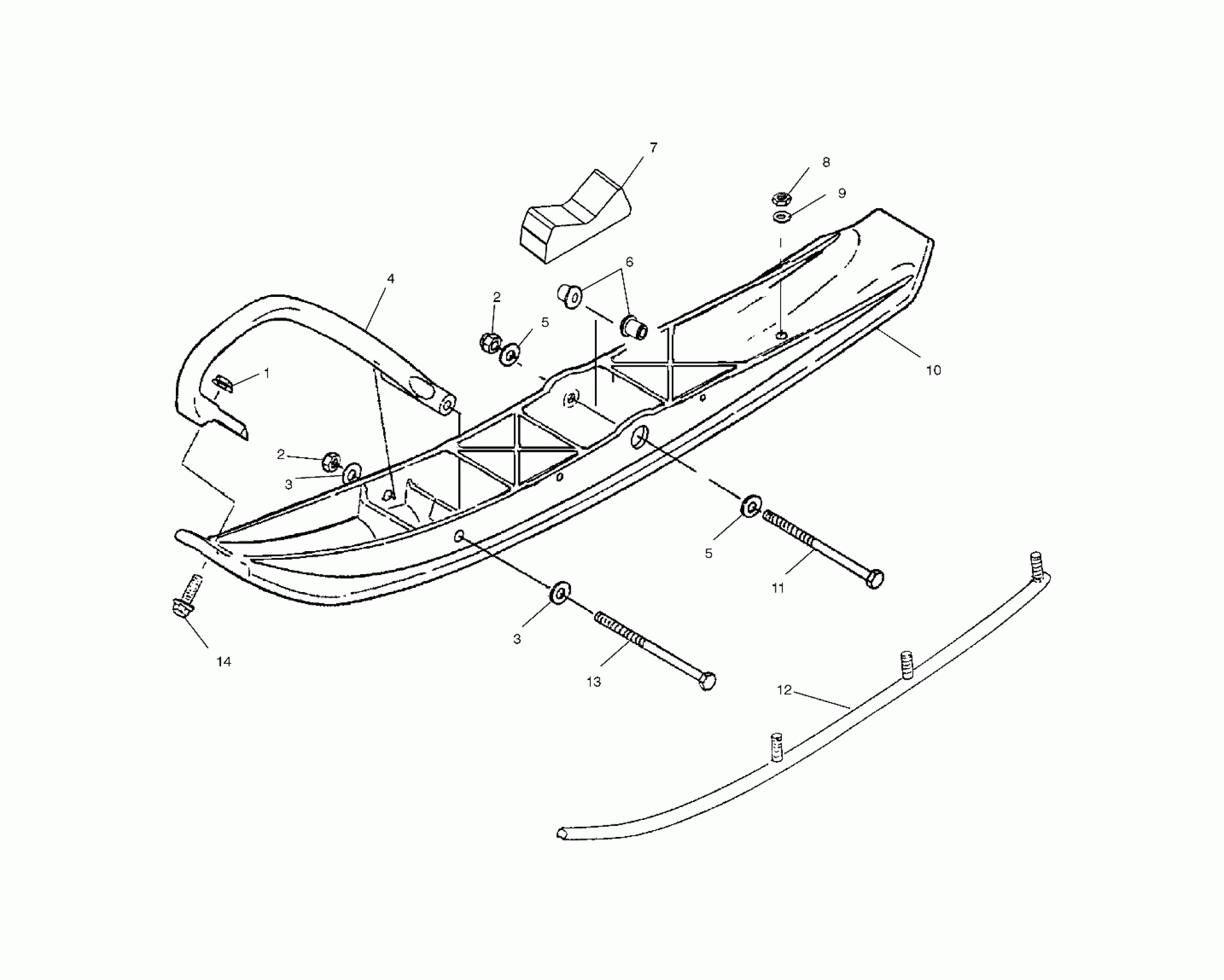

Polaris 500 EDGE - S04NB4BS SKI - S04NB4BS (4988318831B02) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Plastic, Screaming Yellow

5434165-216

$40.46

5

WASHER, BELLE

7556130

$6.39

5

WASHER, BELLE

7556130

$6.39

6

Bushing, Plastic Ski

5132637

$19.99

7

Stop, Ski, Rubber

5412018

$24.27

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

Washer, Flat

7556175

$5.99

10

Asm., Comp. Ski, Blank

1820929-070

Unavailable

11

Screw

7517968

$9.59

12

Kit, Skag, 4 Inch, 60 Degree [Pair]

2871688

$63.99

13

Bolt

7515514

$7.19

14

Screw

7515307

$3.99
