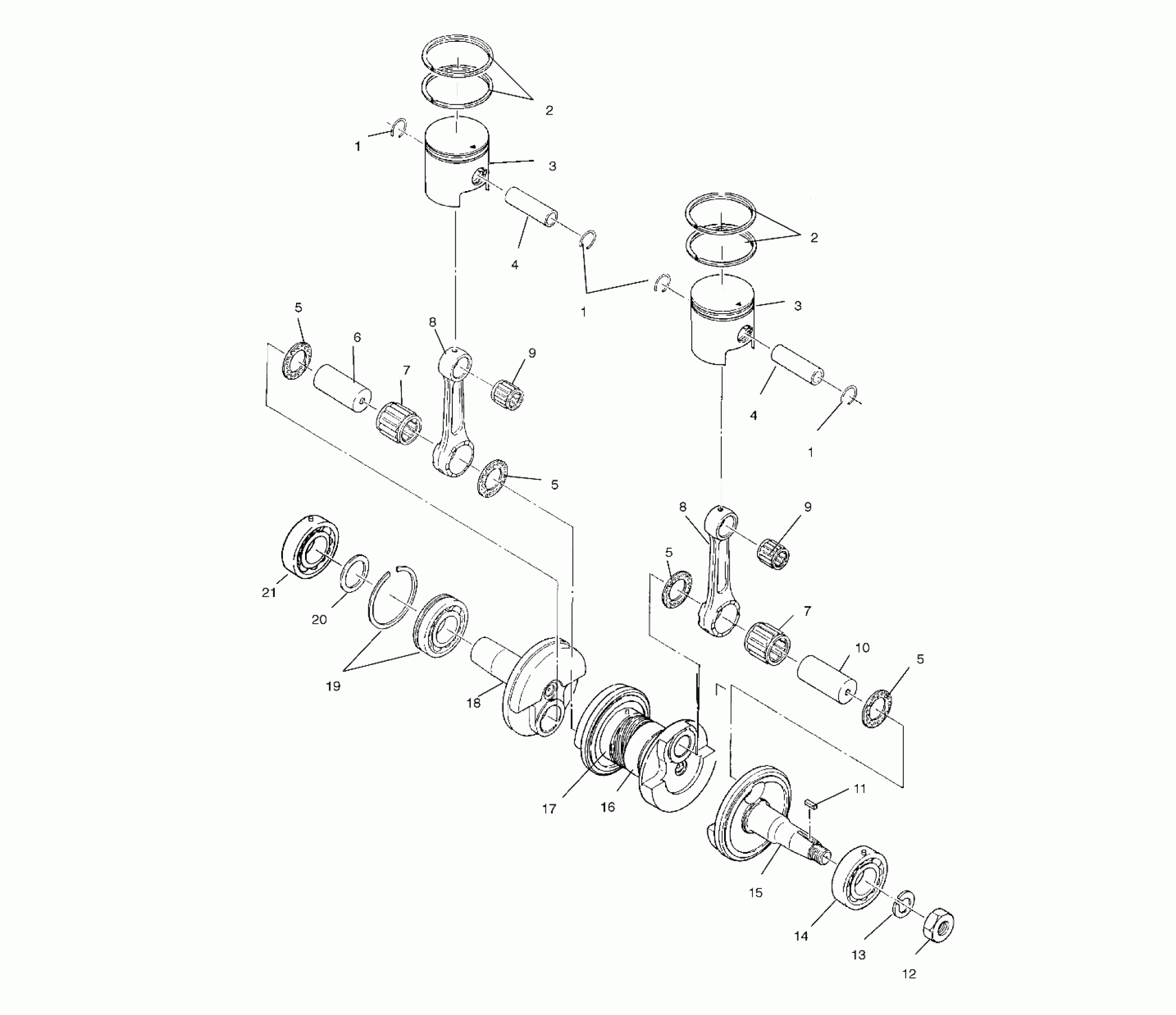

Polaris 500 EDGE - S04NB4BS PISTON and CRANKSHAFT - S04NB4BS (4988318831C07) Diagram

#

Description
Price

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

2

Ring, Piston [Standard]

3084342

$47.60

2

Ring, Piston [0.25 O/S]

3084343

Unavailable

2

Ring, Piston [0.50 O/S]

3084344

$66.65

2

Ring, Piston [Standard]

3084342

$47.60

2

Ring, Piston [0.25 O/S]

3084343

Unavailable

2

Ring, Piston [0.50 O/S]

3084344

$66.65

3

Asm., Piston [0.25 O/S]

3084340

Unavailable

3

Asm., Piston [0.50 O/S]

3084341

Unavailable

3

Piston [Standard]

3084339

Unavailable

3

Asm., Piston [0.25 O/S]

3084340

Unavailable

3

Asm., Piston [0.50 O/S]

3084341

Unavailable

3

Piston [Standard]

3084339

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

6

Pin, Crank, 2 [57mm]

3083456

Unavailable

7

Bearing, End, Large

3085628

$31.99

7

Bearing, End, Large

3085628

$31.99

8

Rod, Connecting

3083252

$164.99

8

Rod, Connecting

3083252

$164.99

9

Bearing, Small End

3083216

$16.57

9

Bearing, Small End

3083216

$16.57

10

Pin [56mm]

3083233

$36.41

11

Key, Woodruff

3080130

Unavailable

12

NUT

3083093

$19.99

13

WASHER, SPRING

3083094

$3.17

14

Bearing, Ball

3086878

Unavailable

15

Asm., Crankshaft [Incl. 5-8,10,14,16-21]

3087260

Unavailable

15

Crankshaft 1 [Mag Side]

3086835

$426.99

16

Crankshaft 2 [Incl. 6,10]

3083713

$583.49

17

Bearing, Ball

3084601

$49.99

18

Crankshaft 3 [PTO Side]

3087261

$384.99

19

Bearing, Ball

3085204

Unavailable

20

Spacer

3085203

$6.39

21

Bearing, Ball

3085205

Unavailable
