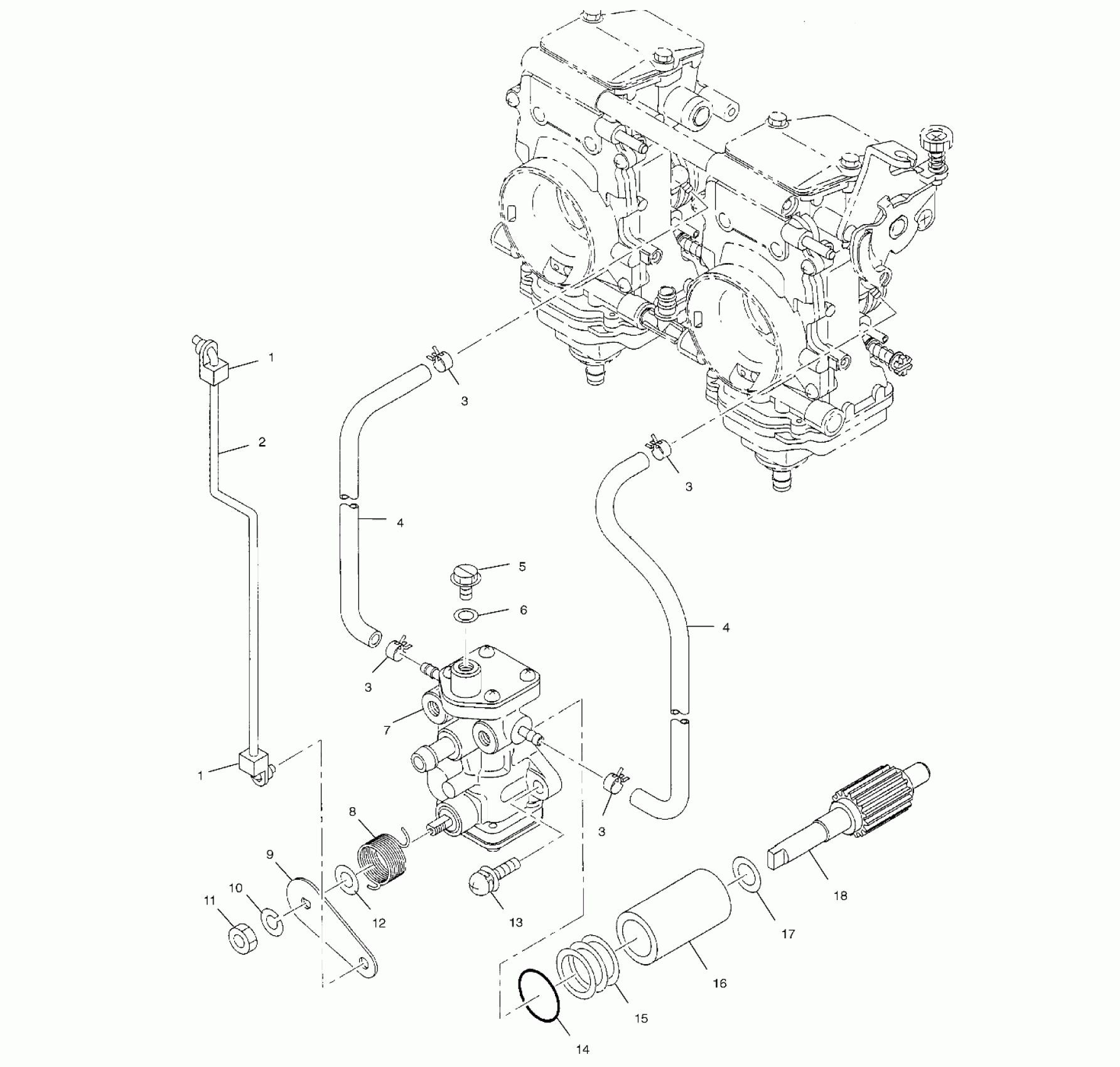

Polaris 500 EDGE - S04NB4BS OIL PUMP - S04NB4BS (4988318831C12) Diagram

#

Description
Price

1

Bushing, Linkage

3240234

Unavailable

1

Bushing, Linkage

3240234

Unavailable

2

Rod, Fork

3087002

Unavailable

3

Clamp, Hose

3083141

$1.49

3

Clamp, Hose

3083141

$1.49

3

Clamp, Hose

3083141

$1.49

3

Clamp, Hose

3083141

$1.49

4

Pipe, Vinyl, 1

3085157

$29.99

4

Pipe, Vinyl, 1

3085157

$29.99

5

Screw, Air Vent

3083125

Unavailable

6

Packing

3083126

$4.03

7

Asm., Oil Pump [Incl. 5-12,14]

3086999

$219.03

8

Set Spring and Lever [Incl. 9]

3087001

$62.39

9

Lever, Control

3087000

$61.90

10

Washer, Spring

3083121

$299.99

11

Nut

3083120

$3.19

12

COLLAR, CAM SHAFT

3083445

$2.39

13

Asm., Screw and Washer

3083783

$2.39

14

O-Ring

3083127

Unavailable

15

Spacer 3 [.6]

3083673

Unavailable

15

Spacer 2 [.3]

3083672

Unavailable

15

Spacer 1 [.15]

3083671

Unavailable

16

Bushing, Oil Pump

3083353

$31.99

17

SPACER

3083130

$1.59

18

Gear, Small

3083131

$89.99
