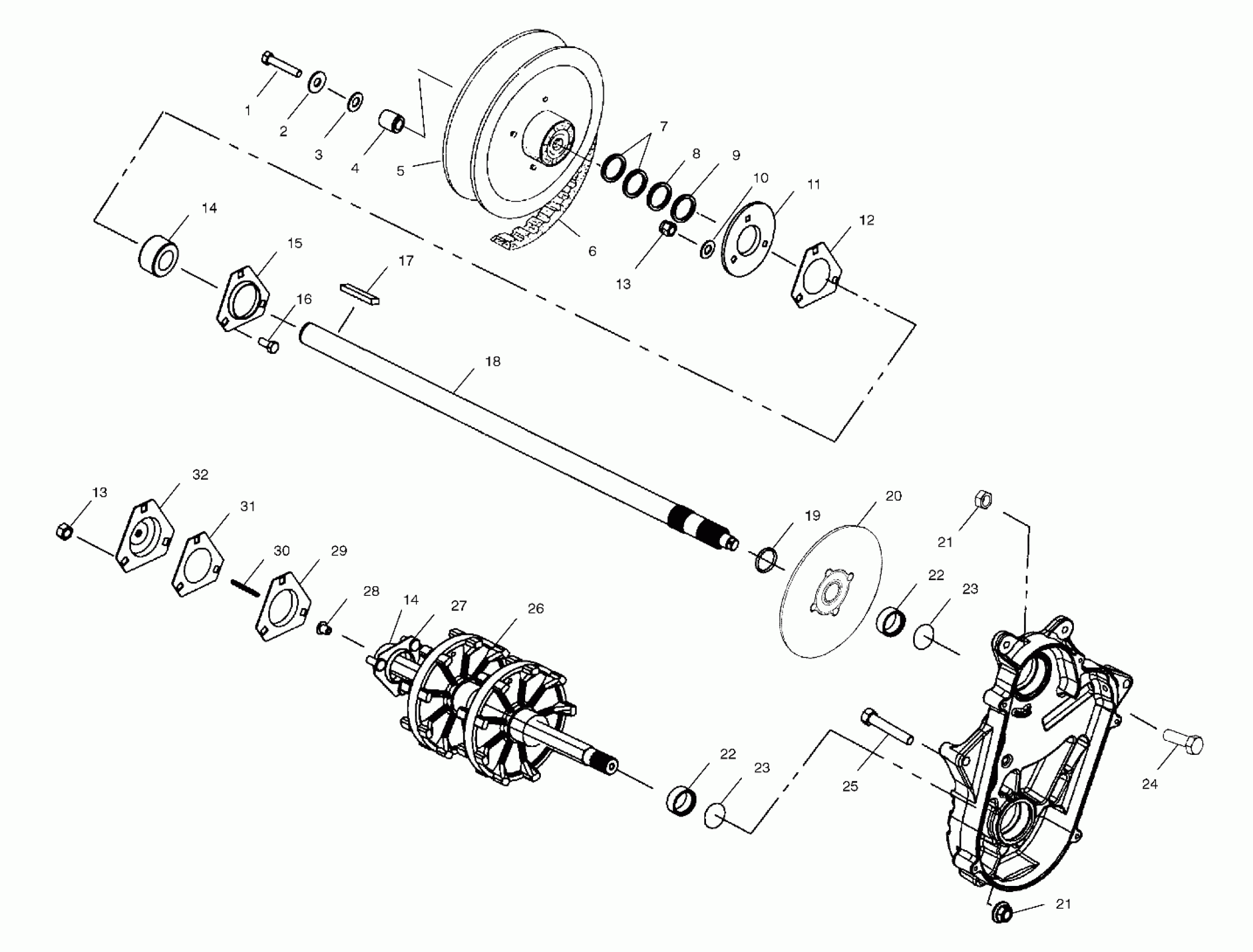

Polaris 500 EDGE - S04NB4BS DRIVE TRAIN - S04NB4BS (4988318831C03) Diagram

#

Description
Price

1

Bolt

7517820

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5020291

Unavailable

5

ASM., DRIVEN CLUTCH [SEE DRIVEN CLUTCH PG. B14, REF. 9]

-------

Unavailable

6

Belt, Drive

3211078

$109.99

7

WASHER

7555917

$2.39

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Fitting, Lubrication

7080561

$4.79

11

Flangette w/Grease Fitting

5241359

$32.37

12

Gasket, Jackshaft

5811095

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Key

7721128

$10.39

18

Asm., Jackshaft [Incl. 14,19]

1332220

$158.73

19

RING, RETAINING

7710422

$3.99

20

Disc, Brake

1910612

Unavailable

21

Nut, Flange

7542423

$3.99

21

Nut, Flange

7542423

$3.99

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Screw

7518002

$3.03

25

Bolt, Carriage

7515428

$4.79

26

Asm., Drive Shaft [Incl. 27,28]

1590340

$343.71

27

ASM., FLANGETTE W/SCREWS

1012945

$114.99

28

Bushing, Speedometer, Metal

3280019

$11.99

29

Flangette, Offset, w/Hole

5243529

$13.75

30

Key, Speedometer, Square

3280017

$13.75

31

Gasket, Drive Adaptor

5830012

$2.41

32

Adaptor w/Zerk, Drive

3280116

$101.17
