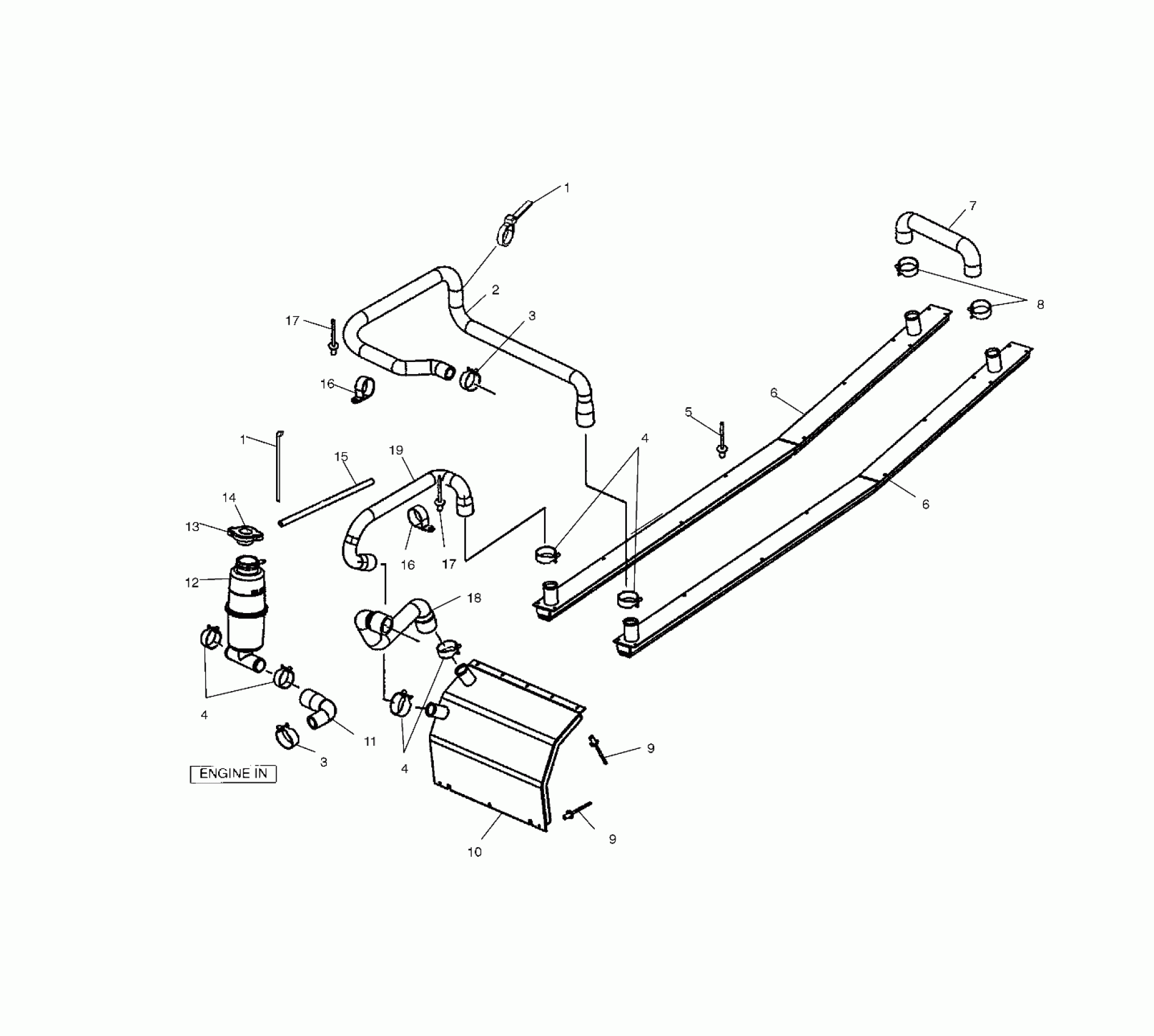

Polaris 500 EDGE - S04NB4BS COOLING SYSTEM - S04NB4BS (4988318831B07) Diagram

#

Description
Price

1

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

1

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

2

Hose, Strip Cooler/Engine Out

5412258

Unavailable

3

CLAMP, SPRINGBAND

7080842

$7.19

3

CLAMP, SPRINGBAND

7080842

$7.19

4

CLAMP, SPRINGBAND

7080844

$10.39

4

CLAMP, SPRINGBAND

7080844

$10.39

4

CLAMP, SPRINGBAND

7080844

$10.39

5

Rivet

7621432

$1.49

6

Strip, Wear, Cooler

1240154

$299.99

6

Strip, Wear, Cooler

1240154

$299.99

7

Hose, Crossover, Wear Strip

5411854

$48.56

8

Clamp, Springband

7080843

$3.99

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

Cooler, Bulkhead

2520255

Unavailable

11

Hose, Engine, Bottle

5411991

$17.43

12

Coolant, Bottle

2520312

$48.56

13

Cap, Pressure

2511270

$24.27

14

DECAL, WATER BOTTLE CAP

7170063

$4.03

15

Line, Fuel

8450003-1525

Unavailable

16

Clamp, Hose, Nylon

7080653

$4.79

16

Clamp, Hose, Nylon

7080653

$4.79

17

Rivet

7621432

$1.49

17

Rivet

7621432

$1.49

18

Hose, Close Off, Bottle

5412172

$23.02

19

Hose, Center Cooler, Wear Strip

5412162

$44.51
