Description

Price

1

Nut, Nylok

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC, 14.3V

4010793

$101.17

4

Screw

7512031

$2.23

5

Housing, Connector

4010193

$8.79

6

Socket

4010192

Unavailable

7

Terminal, Ring

4020092

Unavailable

8

Harness, Main Wire

2461147

$140.79

9

Housing

4020057

$3.51

10

HOUSING

4020063

$3.19

11

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

12

Nut, Ignition

7547035

$8.79

13

Nut, Choke, w/Notch

5432944

$8.79

14

Screw

7515199

$1.49

15

DECAL, CHOKE [SEE DECALS PG. A11, REF. 6]

-------

Unavailable

16

Cable, Choke [Incl. 13,17]

7080753

Unavailable

17

Kit, Lever, Choke, Repair [Incl. Pin]

2201439

$24.27

18

CLIP-PLASTIC DART, NYLON

7670088

$1.59

19

Kit, Ignition Switch

2200358

$76.89

20

DECAL, IGNITION, CONSOLE [SEE DECALS PG. A11, REF. 1]

-------

Unavailable

21

Console, Edge

5434134

Unavailable

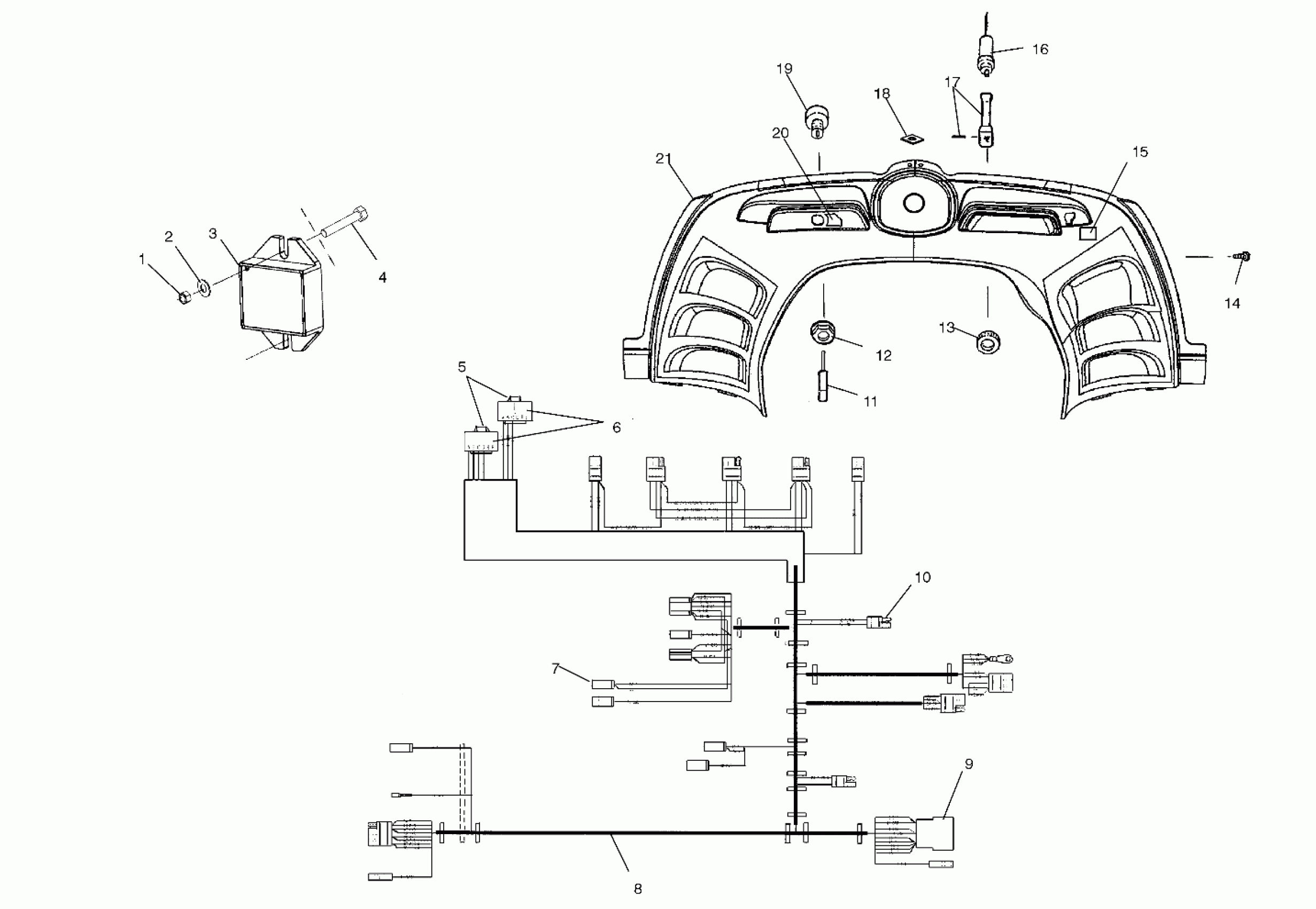

Polaris 500 EDGE - S04NB4BS CONSOLE - S04NB4BS (4988318831B01) Diagram

Nut, Nylok

WSHR-.194X.475X.049 ZTB

Regulator, AC, 14.3V

Screw

Housing, Connector

Socket

Terminal, Ring

Harness, Main Wire

Housing

HOUSING

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

Nut, Ignition

Nut, Choke, w/Notch

Screw

DECAL, CHOKE [SEE DECALS PG. A11, REF. 6]

Cable, Choke [Incl. 13,17]

Kit, Lever, Choke, Repair [Incl. Pin]

CLIP-PLASTIC DART, NYLON

Kit, Ignition Switch

DECAL, IGNITION, CONSOLE [SEE DECALS PG. A11, REF. 1]

Console, Edge
