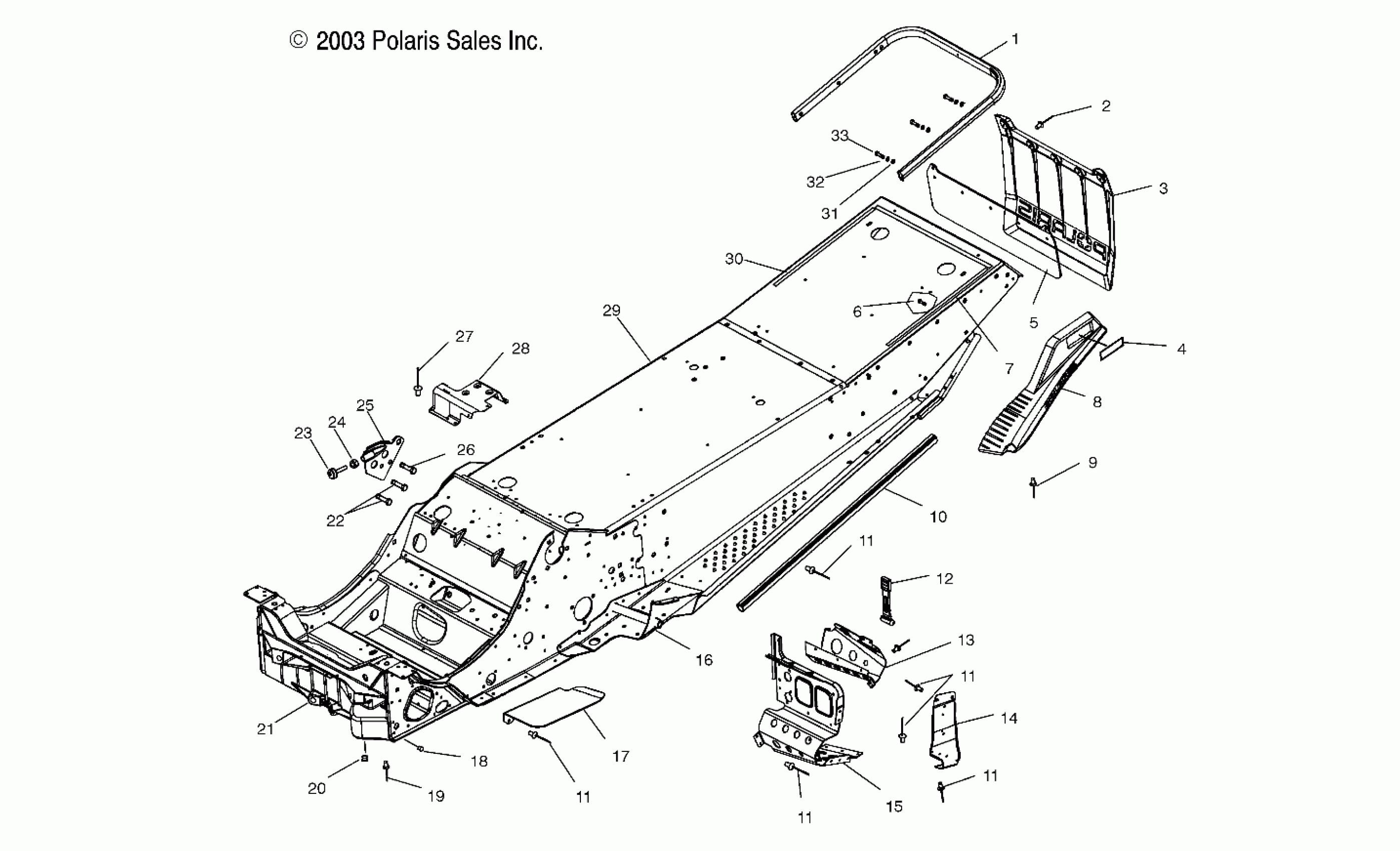

Polaris 500 EDGE - S04NB4BS CHASSIS - S04NB4BS (4988318831A03) Diagram

#

Description
Price

1

Bumper, Rear, Screaming Yellow

2632165-216

Unavailable

2

RIVET

7621418

$1.49

3

Flap, Snow, Long, Black/White

5434847-1038

$139.99

4

ASM., REFLECTOR, RED

2670133

$5.75

5

Backer, Snow Flap

5812430

Unavailable

6

Screw

7517441

$2.39

7

Gasket, Seat Base, 1/4 Inch

5812360

$1.83

8

Asm., Snowskirt, Refl., LH

2632443-070

$64.75

8

Asm., Snowskirt, Refl., RH

2632444-070

$55.99

9

RIVET

7621472

$1.49

10

Brace, Tunnel Roll

5245118

$23.81

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

12

STRAP-AIRBOX TOP

5433150

$24.27

13

Mount, Console, Toe Clip, LH

5245457

Unavailable

13

Mount, Console, Toe Clip, RH

5245458

Unavailable

14

Support, Footrest, LH

5246310

$19.83

14

Support, Footrest, RH

5246311

$32.37

15

Footrest, LH

5245288

Unavailable

15

Footrest, RH

5247205

Unavailable

16

Kit, Mount, Trailing Arm LH

2202059

$213.00

16

Kit, Mount, Trailing Arm RH

2202598

$124.99

17

Guard, Belt

5246066

Unavailable

18

PLUG, HOLE

7080416

$5.65

19

Rivet

7661130

$1.49

20

Plug, Hole

7081076

$3.22

21

Bulkhead, Front

5132292

$115.99

22

Screw

7517854

$5.59

23

Stop, Torque

3021104

$20.22

24

NUT

7542404

$1.59

25

Stop, Torque

1013399

$27.19

26

SCREW

7517632

$5.59

27

Rivet

7621432

$1.49

28

Bracket, Oil Tank/Hose Support

5246330

$13.19

29

Asm., Chassis, Edge, Natural [Incl. 13-16,21]

1014204-309

$1,299.99

30

Gasket, Seat Base

5812290

$1.49

31

Washer, Flat

7558301

$1.49

32

WASHER, SPRING LOCK

7552801

$1.59

33

SCREW

7512232

$1.49
