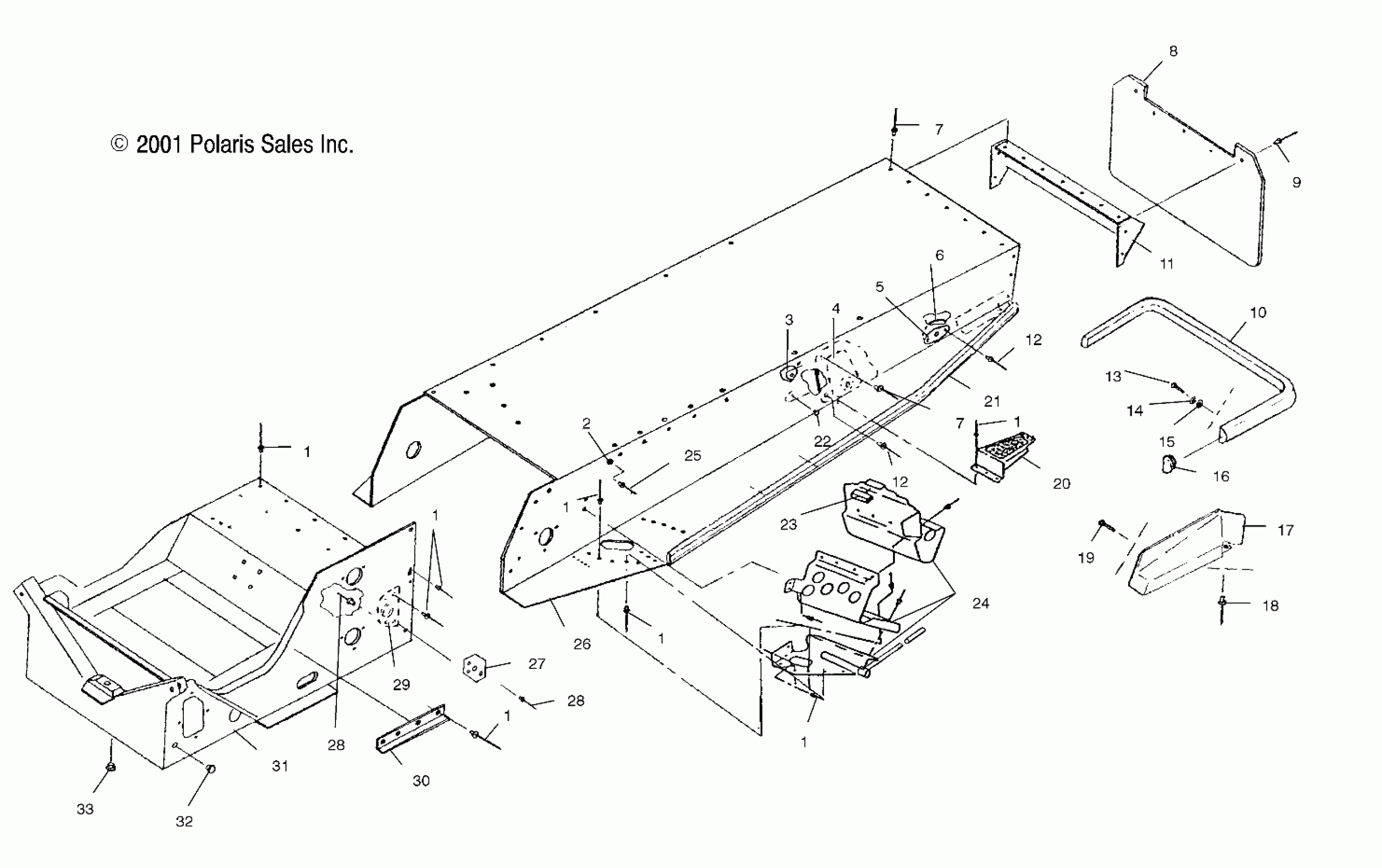

Polaris 500 CLASSIC TOURING - S02ST4BS TUNNEL - S02ST4BS (4967516751A003) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

SNAP-MALE(10)

7080227

Unavailable

3

BRACE,LH,LOW.TUNNEL

5241485

$25.59

3

BRACE,RH,LOW.TUNNEL

5241486

$25.59

4

PAD,LH,RR SUSP,X12,BLK

1012439-067

$15.67

4

PAD,RH,RR SUSP,X12,BLK

1012440-067

$13.68

5

PLATE,TUNNEL SUPPORT

5211660-067

$3.17

6

BRKT,U-TENSIONER,BLK.

5211590-067

$7.38

7

RIVET ,(50)

7661836

$0.63

7

RIVET ,(50)

7661836

$0.63

8

FLAP,SNOW,13.74",BLK W/CHROME

5432149-1106

Unavailable

9

POP RIVET(50)

7621418

$1.49

10

ASM-REAR BUMPER,NATURAL

2670168-309

Unavailable

11

PANEL,CLOSE-OFF

5240968

Unavailable

12

RIVET(50)

7661846

$1.99

12

RIVET(50)

7661846

$1.99

13

SCREW(10)

7515159

$4.79

14

LOCK WASHER(10)

7552801

$1.59

15

WASHER(10)

7558301

$1.49

16

CAP,BUMPER

5431995-070

Unavailable

17

SKIRT,SNO.TRNG,LH

5432131-070

$33.91

17

SKIRT,SNO.TRNG,RH

5432132-070

$30.95

18

RIVET, BLIND(50)

7621467

$1.49

19

SCREW(10)

7512091

$3.99

20

PAD,FOOTREST GRIP

5830114

$35.24

20

FOOTREST,LH,W/GRIP PAD

1012633

$35.51

20

FOOTREST,RH,W/GRIP PAD

1012634

$35.24

21

EDGE,LH,TUNNEL

5242206

$222.49

21

EDGE,RH,TUNNEL

5242207

Unavailable

22

RIVET ,(50)

7661837

$1.49

23

EXTRUSION,CLUTCHGUARD

5521238

$6.46

24

ASM-FOOTREST

1013531

Unavailable

24

Asm, Footrest, RH

1013582

$99.19

25

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

26

DESC NOT_AVAILABLE (Incl. Heat Exchangers)

1013546

Unavailable

27

PLATE,F.SUSP,OUT,X-12,BLK

5211746-067

$13.39

28

RIVET-3/16-.214-.420

7661130

$1.49

28

RIVET-3/16-.214-.420

7661130

$1.49

29

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

29

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

30

GUARD,ADAPTER GUIDE

5222857

$12.94

31

WELD ASM BULKHEAD STD

1012888

Unavailable

32

PLUG, HOLE(10)

7080416

$5.65

33

PLUG-HOLE

7080398

$4.84
