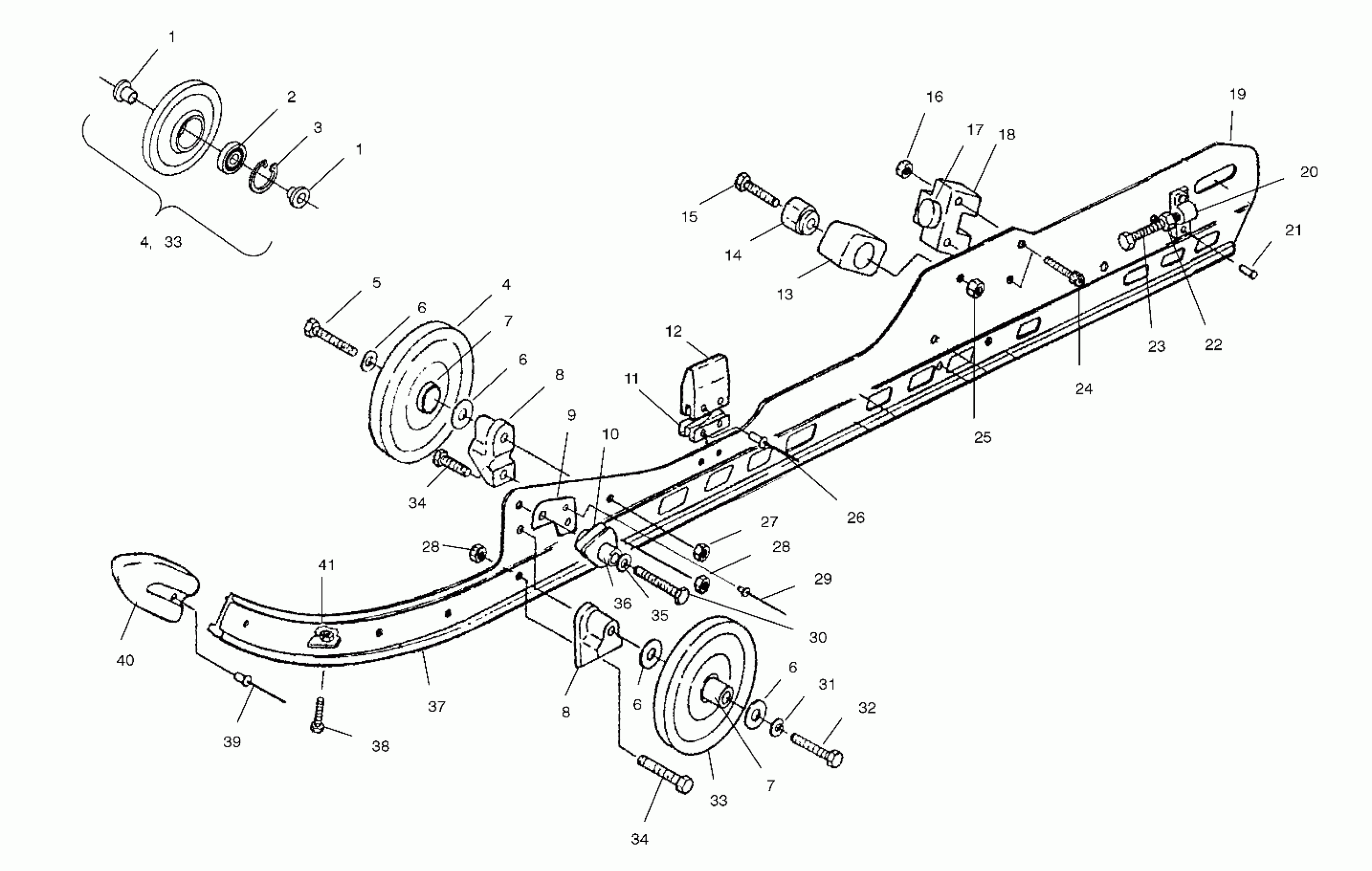

Polaris 500 CLASSIC TOURING - S02ST4BS SUSPENSION - S02ST4BS (4967516751B012) Diagram

#

Description
Price

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

BEARING (1 per Wheel)

3514303

$11.99

3

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

WHEEL, IDLER (Incl. 1-3)

1543018

$56.65

4

WHEEL, IDLER (Incl. 1-3)

1543018

$56.65

5

BOLT(10)

7512538

$6.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

7

SPACER, WHEEL

5333116

$7.99

7

SPACER, WHEEL

5333116

$7.99

8

SPACER

5630399

$11.99

8

SPACER

5630399

$11.99

9

PLATE,RAIL SUPPORT

5211786

$5.95

10

BLOCK,SPRING SLIDER

5431924

$10.65

11

BRKT,BUMPER SUPPORT

5240946

Unavailable

12

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

13

BUMPER,F.PIVOT ARM

5410925

$12.94

14

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

15

BOLT,(10)

7515545

$5.59

16

NUT, LOCK(10)

7542103

$5.59

17

BUMPER,R.PIVOT ARM

5411041

$11.59

18

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable

19

RAIL,XTRA SKS,LH,ASM. (Incl. 11,12,20,21,26,39,40)

1541438

Unavailable

19

RAIL,XTRA SKS,RH,ASM. (Incl.11,12,20,21,26,39,40)

1541439

Unavailable

20

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

21

RIVET,(50)

7621501

$2.39

22

NUT,TENSIONER ADJ.

5020943

$20.22

23

BOLT, ADJUSTER(10)

7515455

$29.99

24

SCREW(10)

7515156

$3.99

25

NUT LOCK(10)

7542411

$3.19

26

RIVET,(50)

7621488

$3.99

27

NUT, NYLOCK(10)

7542525

$4.79

28

NUT-LOCK(10)

7542439

$1.49

28

NUT-LOCK(10)

7542439

$1.49

29

RIVET,(50) Substituted by 7661847

7621514

Unavailable

30

BOLT(10)

7515538

$6.39

31

WASHER LOCK(10)

7553101

$3.99

32

BOLT(10)

7512508

$7.19

33

WHEEL,BOGIE,SCRL,C.RED

1594082-256

Unavailable

33

WHEEL,BOGIE,SCRL,C.RED

1594082-256

Unavailable

34

BOLT(10)

7512404

$3.99

34

BOLT(10)

7512404

$3.99

35

WASHER ,(10)

7555976

$3.99

36

Bushing

5010332

$11.99

37

SLIDER,WHI.,(2)

5521452

$40.46

38

BOLT(10)

7515175

$3.99

39

RIVET(50)

7621435

$1.49

40

COVER,RAIL TIP

5433005

Unavailable

41

NUT-LOCK(10)

7542122

$1.49
