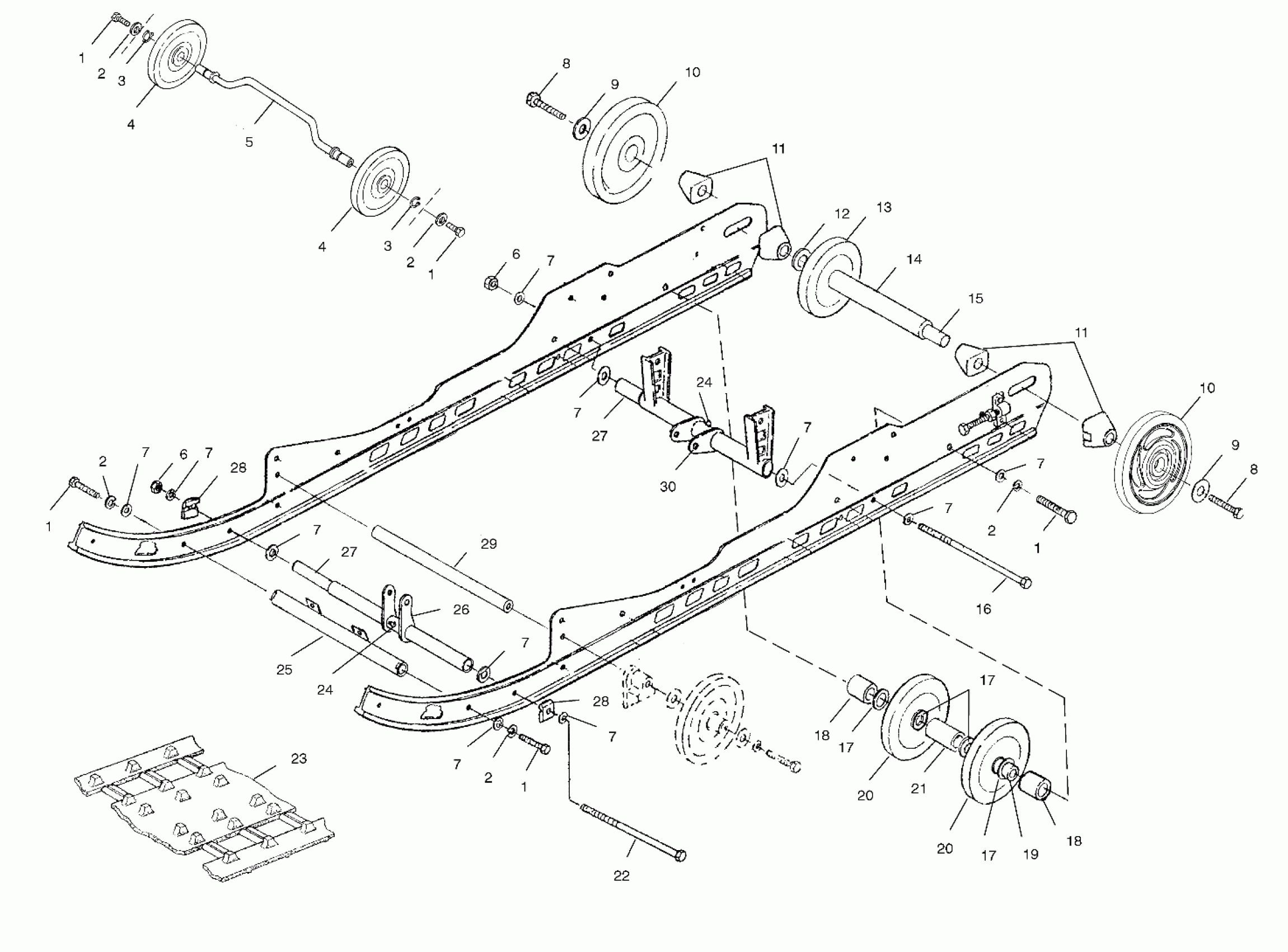

Polaris 500 CLASSIC TOURING - S02ST4BS SUSPENSION - S02ST4BS (4967516751B011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

RING,RETAINING(10)

7710439

$3.99

3

RING,RETAINING(10)

7710439

$3.99

4

Wheel, Bogie

1594067

$44.51

4

Wheel, Bogie

1594067

$44.51

5

TENSIONER,SHAFT,BLK.

1541025-067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

8

BOLT,3/8-16X1.25(10)

7517731

$1.49

8

BOLT,3/8-16X1.25(10)

7517731

$1.49

9

WSHR,.406X1.25X.125(10)

7556130

$6.39

9

WSHR,.406X1.25X.125(10)

7556130

$6.39

10

ASM-WHEEL IDLER,HP,CAN APL RED

1590303-256

Unavailable

10

ASM-WHEEL IDLER,HP,CAN APL RED

1590303-256

Unavailable

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING(10)

7555918

$1.59

13

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT,IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

17

MACHINERY BUSHING(10)

7556301

$3.19

17

MACHINERY BUSHING(10)

7556301

$3.19

17

MACHINERY BUSHING(10)

7556301

$3.19

18

SPACER, OUTER

5332784

Unavailable

18

SPACER, OUTER

5332784

Unavailable

19

SHAFT,PIVOT ARM

5020724

$29.99

20

Asm., Wheel, Bogie (See Suspension Pg. B12, Ref. 4)

-------

Unavailable

20

Asm., Wheel, Bogie (See Suspension Pg. B12, Ref. 4)

-------

Unavailable

21

TUBE, SUSPENSION

5332783

Unavailable

22

SCREW,(10)

7517380

$15.03

23

TRACK,133"X.82(MOD.L'TNG) Substituted by 5411687

5411091

Unavailable

23

Clip, Slide

5241473

Unavailable

23

Clip, Guide

5241474

Unavailable

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

26

ARM,SHOCK PIVOT

1540968-067

$49.59

27

SHAFT

5333404

$24.27

27

SHAFT

5333404

$24.27

28

BOSS,BOLT HEAD

5131112

$19.99

28

BOSS,BOLT HEAD

5131112

$19.99

29

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

30

ARM,R.PIVOT,X12,BLK

1541141-067

$113.99
