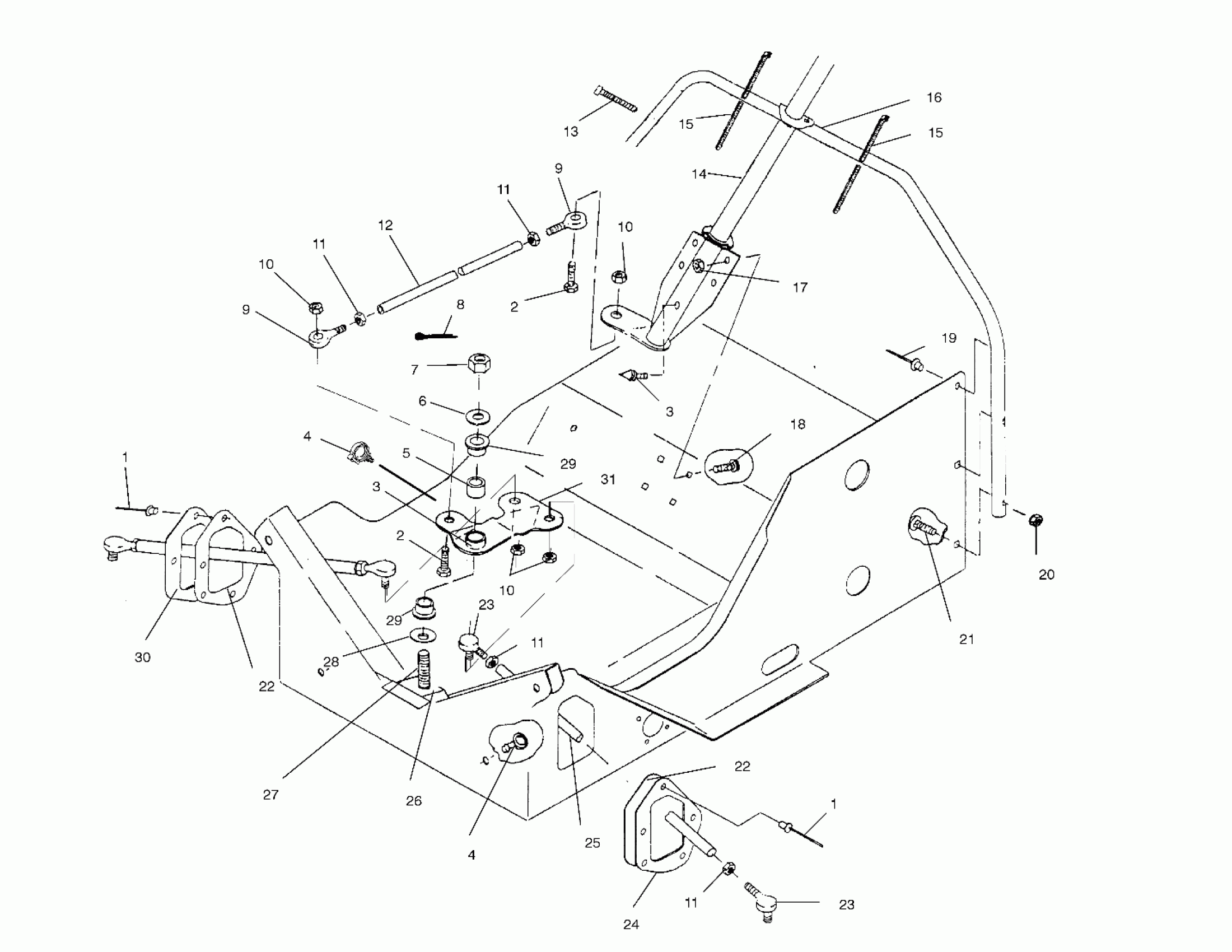

Polaris 500 CLASSIC TOURING - S02ST4BS STEERING - S02ST4BS (4967516751B004) Diagram

#

Description
Price

1

RIVET(50)

7621340

$0.56

1

RIVET(50)

7621340

$0.56

2

BOLT(10)

7512404

$3.99

2

BOLT(10)

7512404

$3.99

3

ZERK,FITTING,THREADED(10)

7080433

$1.49

3

ZERK,FITTING,THREADED(10)

7080433

$1.49

4

CLIP, PLASTIC(10)

4020139

$4.79

4

CLIP, PLASTIC(10)

4020139

$4.79

5

BUSHING

5010463

$9.70

6

WASHER(10)

7555721

$1.49

7

NUT FLEX,(10)

7542703

Unavailable

8

PIN COTTER(10)

7661203

$1.49

9

ROD END, RH.

7060165

$48.56

9

ROD END, LH.

7060164

$48.56

9

ROD END, RH.

7060165

$48.56

9

ROD END, LH.

7060164

$48.56

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

12

ROD-DRAG LINK

5332712

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

Post, Steering (See Steering/Handlebar Pg. B5, Ref. 24)

-------

Unavailable

15

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

15

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

16

STEERING HOOP,SHORT,BLK

1012887-067

$43.11

17

NUT FLEX-LOC(10)

7542303

$6.39

18

BOLT,(10)

7517428

$2.39

19

RIVET-3/16-.090-.290

7661637

$1.49

20

NUT, LOCK(10)

7542103

$5.59

21

BOLT-CARRIAGE(10)

7512275

$3.99

22

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

22

BOOT,TIEROD,RH,XTRA

5411123

$20.22

22

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

22

BOOT,TIEROD,RH,XTRA

5411123

$20.22

23

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

23

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

23

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

23

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

24

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

25

ROD-TIE,SILVER

5020859-244

Unavailable

26

BLOCK,STRG,(CAST)

5630563

$32.37

27

BOLT(10)

7512682

Unavailable

28

WASHER,WAVE(10)

7555735

$3.99

29

BUSHING

3563907

$3.99

29

BUSHING

3563907

$3.99

30

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

31

STRG.ASM,CTR. (Incl. 3,29)

1822286

$29.60
