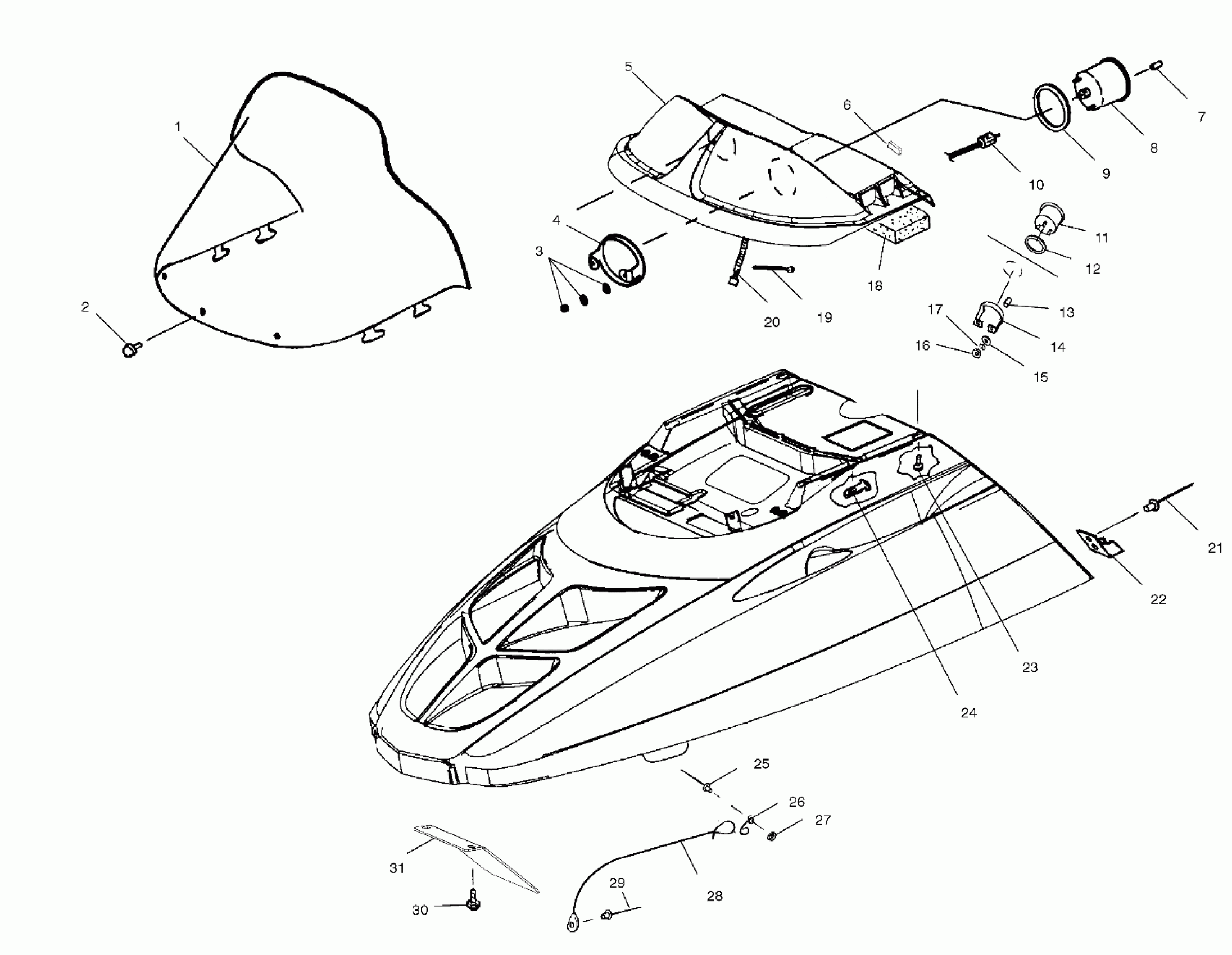

Polaris 500 CLASSIC TOURING - S02ST4BS HOOD - S02ST4BS (4967516751A010) Diagram

#

Description
Price

1

WINDSHIELD-17" GEN II

5433667

Unavailable

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

INSTR,HSG,CLASSIC TRGW/REV (Incl. Warning Decals)

2632188

$216.99

6

INDICATOR'TEMP'WARN.

4040011

$32.37

6

HARNESS-JUMPER,TEMP LIGHT

2460876

$9.11

7

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

8

BULB TAILLIGHT(10)

4030015

$4.03

8

SPEEDO,5",120MPH,WHITE

3280328

Unavailable

9

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

10

CABLE,SPEEDO,90 IN.

3280341

$60.70

11

GUAGE,FUEL,2"BACKLIT

3280334

$131.99

11

Fuse

4060139

Unavailable

12

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

14

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

15

Washer

3280231

$0.24

16

Nut

3280232

$1.49

17

WASHER,SPLITLOCK

3280233

Unavailable

18

FOAM,PREFILTER

5811625

$29.99

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

HARNESS-HEADLIGHT,G2 COMMON Substituted by 2460913

2460732

Unavailable

21

RIVET(50)

7621334

$1.49

22

CUP, HOOD LATCH,(10)

5430733

$4.84

23

SCREW(10)

7517441

$2.39

24

RETAINER,WINDSHIELD,(10)

5410970

$1.49

25

RIVET,(50)3/16(.251-.375)

7661084

$1.49

26

CLIP,PIGTAIL

5242893

$6.65

27

BURR,RIVET(50)

7555904

$1.49

28

CABLE,HOOD,HYB.

7080764

$28.32

29

POP RIVET(50)

7621402

$1.49

30

SCREW(10)

7512068

$2.39

31

DEFLECTOR-AIR

5243393

Unavailable
