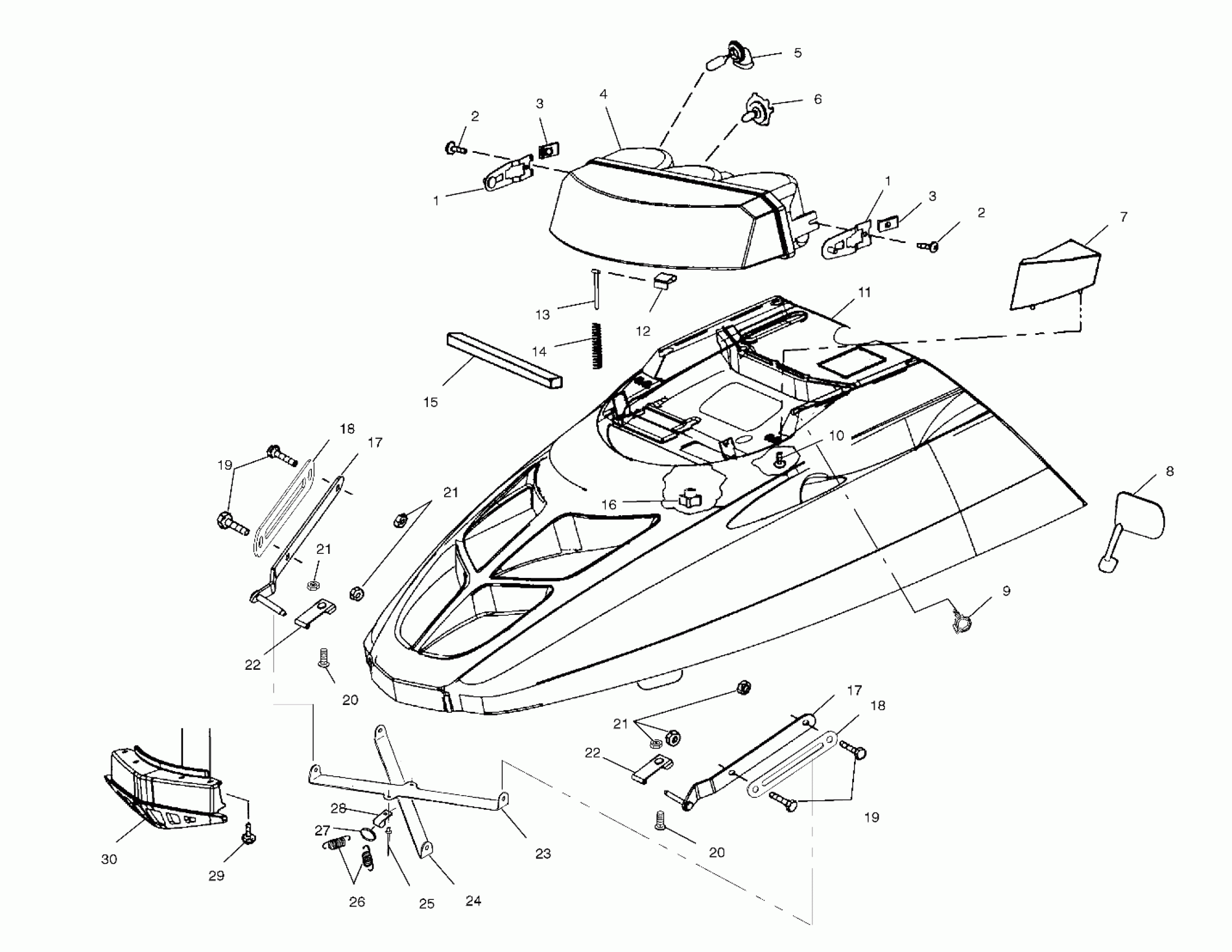

Polaris 500 CLASSIC TOURING - S02ST4BS HOOD - S02ST4BS (4967516751A009) Diagram

#

Description
Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

H/L ASM,3-BULB (Incl. Bulbs)

2431008

$111.99

5

BULB,HI-BEAM

4030048

$29.03

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

7

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

8

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

8

WASHER (10)

7556088

$4.79

8

ASM-MIRROR,GEN II,LH

2632353

Unavailable

8

ASM-MIRROR,GEN II,RH

2632354

Unavailable

9

CLIP,ROSEBUD,GRAY

7080886

$4.79

10

SCREW(10) Substituted by 7512048

7511953

Unavailable

11

ASM-HOOD,HYB,SVC,W/O SCR,S RED (Incl. Foam/Foil)

2632228-342

$764.99

12

FASTENER-U TYPE CLIP

7670040

$3.99

13

BOLT,TEE ADJUSTER,2.25

7517746

$24.99

14

SPRING,H/L.ADJ.

7041308

$3.19

15

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

16

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

17

HINGE,LH,UPPER

1012750

$48.56

17

HINGE,RH,UPPER

1012751

$43.99

17

HINGE,LH,UPPER

1012750

$48.56

17

HINGE,RH,UPPER

1012751

$43.99

18

PLATE-BOLT

5242948

$9.70

18

PLATE-BOLT

5242948

$9.70

19

BOLT(10) Substituted by 7512247

7515184

Unavailable

19

BOLT(10) Substituted by 7512247

7515184

Unavailable

20

BOLT(10)

7512193

$2.39

20

BOLT(10)

7512193

$2.39

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

PLATE,HINGE,LOWER

5244395

$11.99

22

PLATE,HINGE,LOWER

5244395

$11.99

23

BRACE,HOOD,UPPER

5242945

$40.46

24

BRACE,HOOD,LOWER

5242946

$40.46

25

RIVET-3/16-.090-.290

7661637

$1.49

26

SPRING-EXT.

7041732

$7.19

27

SPRING-ATTACHMENT RING(10)

7041760

$7.99

28

CLAMP, RETAINER(10)

7080372

$3.99

29

SCREW(10)

7517441

$2.39

30

SCREEN,FRONT,HYB

5432931

$36.41
