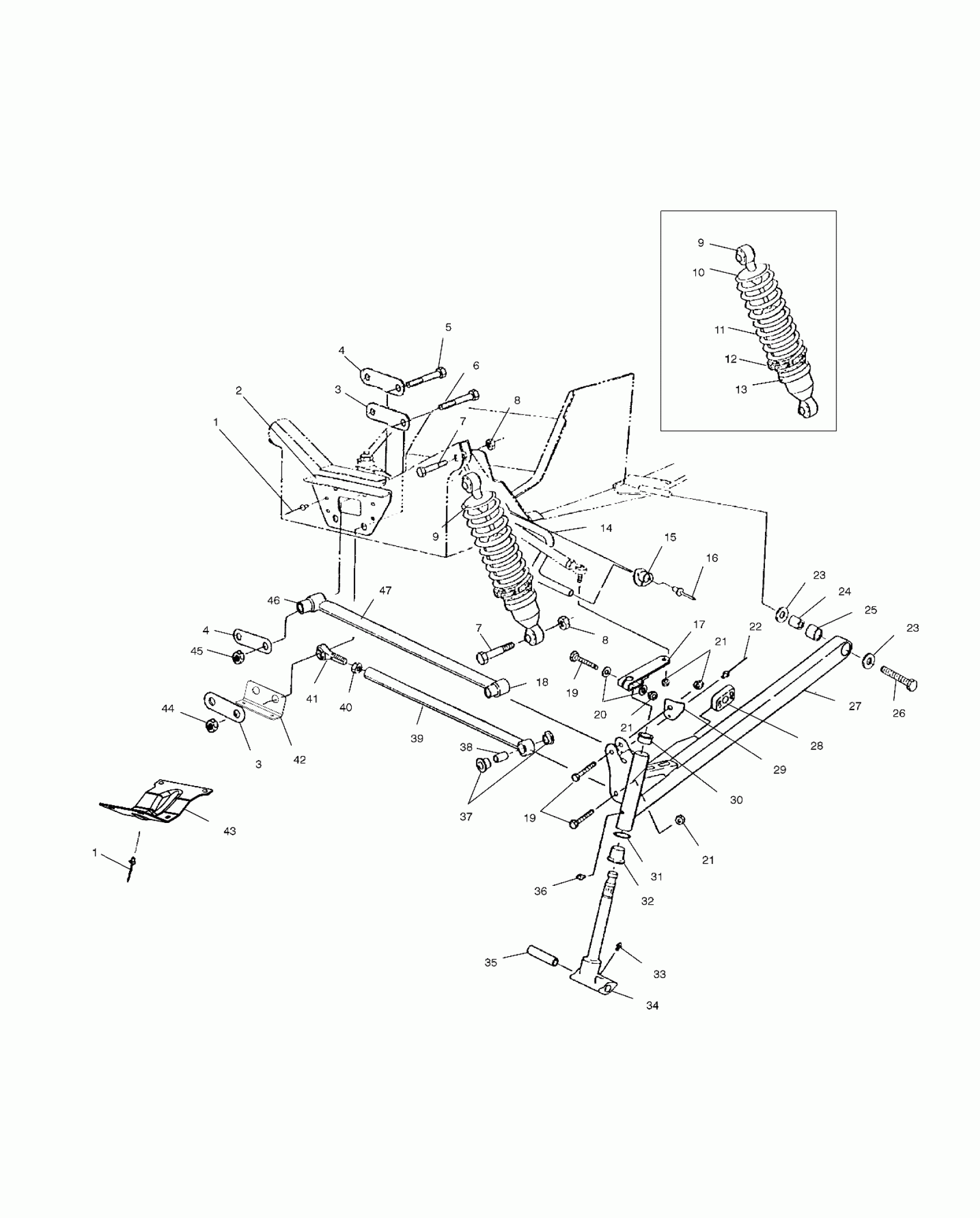

Polaris 500 CLASSIC TOURING - S02ST4BS FRONT SUSPENSION - S02ST4BS (4967516751B001) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRACE,FR.BULKHEAD

5242117

$16.47

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

BOLT(10)

7512684

Unavailable

6

BOLT(10)

7512684

Unavailable

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

SHOCK,GAS,IFS,SELECT

7041503

Unavailable

9

SHOCK,GAS,IFS,SELECT

7041503

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,COMPRESSION

7041551-067

$74.99

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

BAR,SWAY,5/8(X-12)BLK

5224748-067

Unavailable

15

BUSHING,SWAY BAR

5432038

$19.99

16

RIVET,(50)

7621477

$1.19

17

ARM-STEERING,SLV

5241560-244

Unavailable

18

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

22

RIVET-3/16-.214-.420

7661130

$1.49

23

WASHER(10)

7555721

$1.49

23

WASHER(10)

7555721

$1.49

24

TUBE, BUSHING

5010310

$9.70

25

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

26

BOLT(10)

7512557

$7.60

27

ASM-TRAILING ARM,LH,SILVER (Incl. 24,25)

1821081

$344.99

27

ASM-TRAILING ARM,RH,SILVER (Incl. 24,25)

1821082

Unavailable

28

SLIDE,SWAYBAR,5/8

5432561

$24.27

29

STOP-STEERING,LH,SLV

5241569-244

$3.81

29

STOP-STEERING,RH,SLV

5241570-244

$3.51

30

BUSHING-FLANGE

3573909

$2.39

31

WASHER SPECIAL(10)

7556509

$1.59

32

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

33

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

34

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

BUSHING-RADIUS ROD,(10)

5010127

$7.99

39

WELD-RADIUS ROD,LOWER,SLV

1822383-244

Unavailable

40

NUT-JAM(10)

7542711

$2.39

41

ROD END-RADIUS,RH,LOWER

7061052

$48.56

42

BRKT,RAD.ROD,BTM.

5242578

$44.99

43

Brace, Pan, Lower (See Nosepan Pg. A7, Ref. 17)

-------

Unavailable

44

NUT FLEX,(10)

7542703

Unavailable

45

NUT, LOCK,(10)

7542503

$10.39

46

BUSHING,PIVOT,7/16

5411095

$15.99

47

ASM-RADIUS ROD,UPPER,FIXED,SLV

1821084

Unavailable
