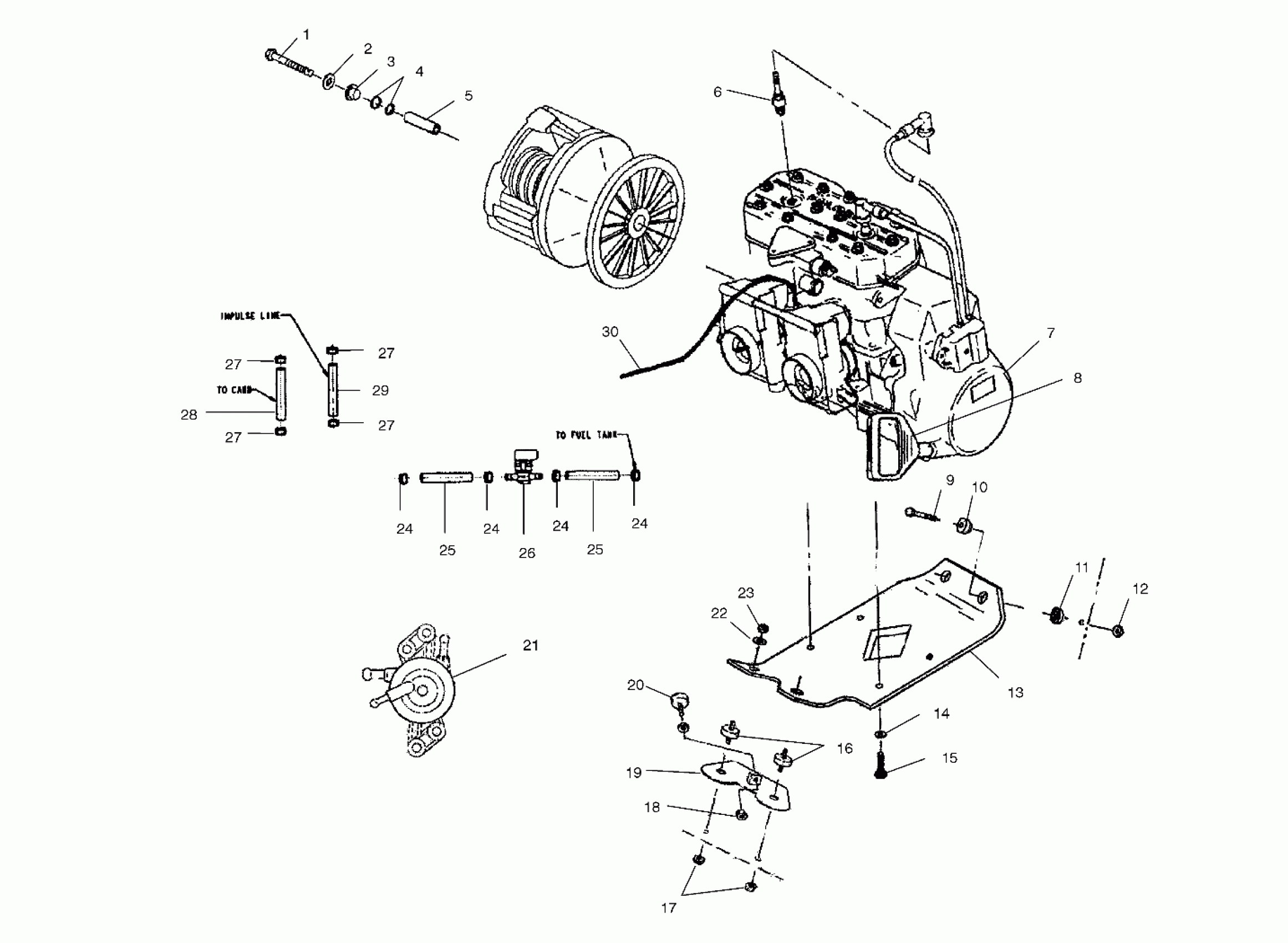

Polaris 500 CLASSIC TOURING - S02ST4BS ENGINE MOUNTING - S02ST4BS (4967516751B007) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG, RN3C(8)

3070166

$3.99

7

ENGINE-EC50PL220,SB

3086508

Unavailable

8

HANDLE-RECOIL,BLK

5431499-070

$15.48

9

SCREW(10)

7512530

$5.59

10

MOUNT-ENGINE RUBBER,TOP

5411685

$24.27

11

MOUNT-ENGINE RUBBER,BOTTOM

5411686

$28.32

12

NUT,FLANGE(10)

7542522

$5.59

13

PLATE,MTR.MT,LWT

5131772

$108.99

14

WASHER LOCK(10)

7553101

$3.99

15

BOLT(10)

7512539

$3.99

16

MOUNT,ENG.

3110061

$84.99

17

NUT,FLEXLOCK,(10)

7547008

$6.39

18

NUT,HEX(10)

7542414

$4.79

19

LIMITER,TORQUE,TWIN-Z

1012608

$35.51

20

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

21

Asm., Fuel Pump (See Oil Pump/Fuel Pump Pg. C10, Ref. 19)

-------

Unavailable

22

WASHER(10)

7555893

$1.49

23

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

25

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

26

VALVE-FUEL,PLASTIC,INLINE 1/4"

7052248

$24.27

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

28

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

CABLE,THROT,SINGLE,RACK CARB.

7080770

Unavailable
