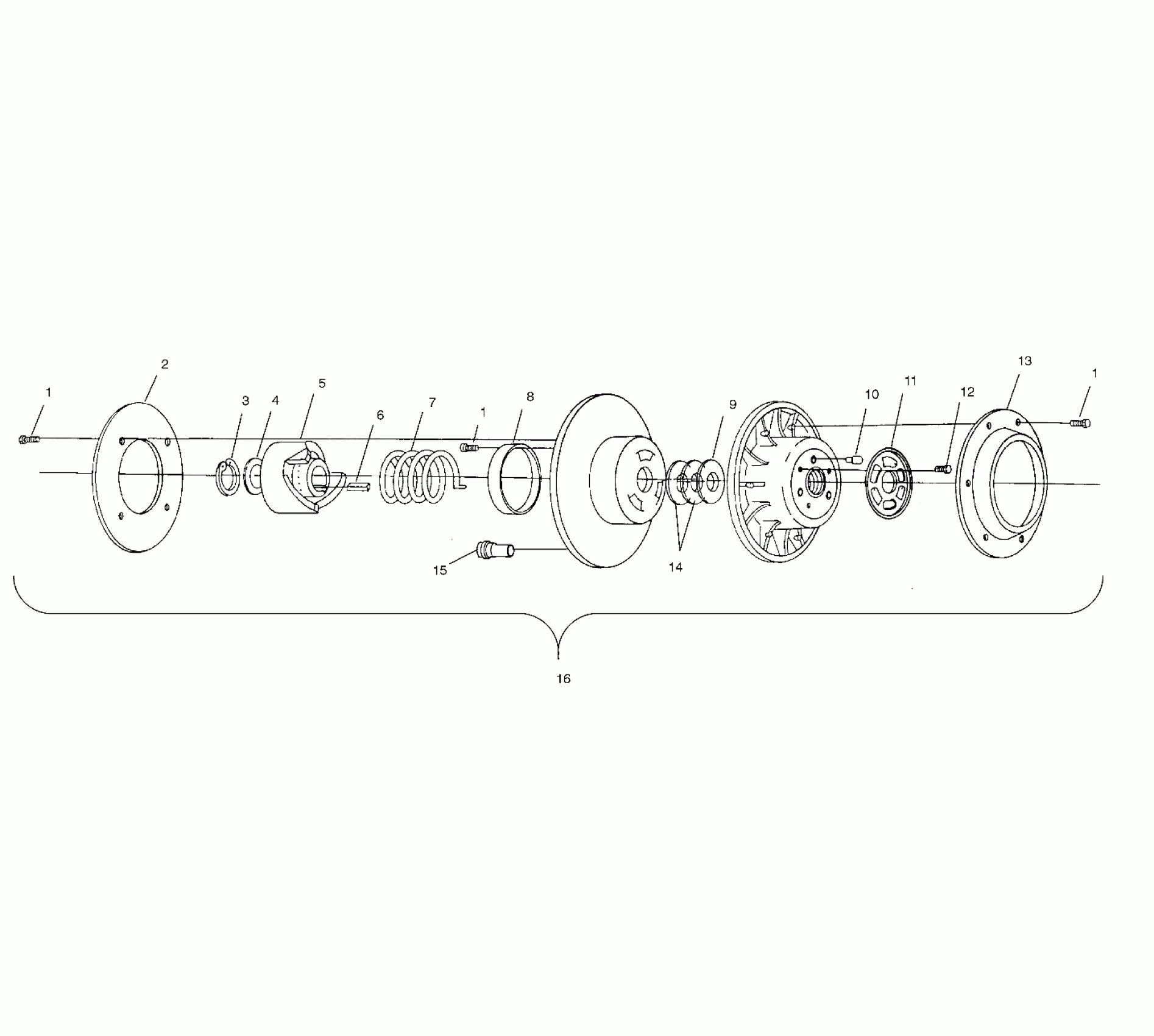

Polaris 500 CLASSIC TOURING - S02ST4BS DRIVEN CLUTCH - S02ST4BS (4967516751C003) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10) (.03)

7556804

$1.49

5

RAMP,DRIVEN,34 DEGREE

5130896

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,SVR.

7041499

$56.65

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

10

PIN, CLUTCH

5020653

$34.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

SCREW(10)

7515133

$3.99

13

CAP-DRIVEN,VENTED

5243157

Unavailable

14

WASHER(10) (.03)

7556804

Unavailable

14

WASHER(10) (.02)

7555898

Unavailable

14

WASHER(10) (.025)

7556076

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46

16

ASM-DRIVEN CLUTCH,BSC,203 N/B [Incl. All Less 2,5,7,13]

1321925

Unavailable
