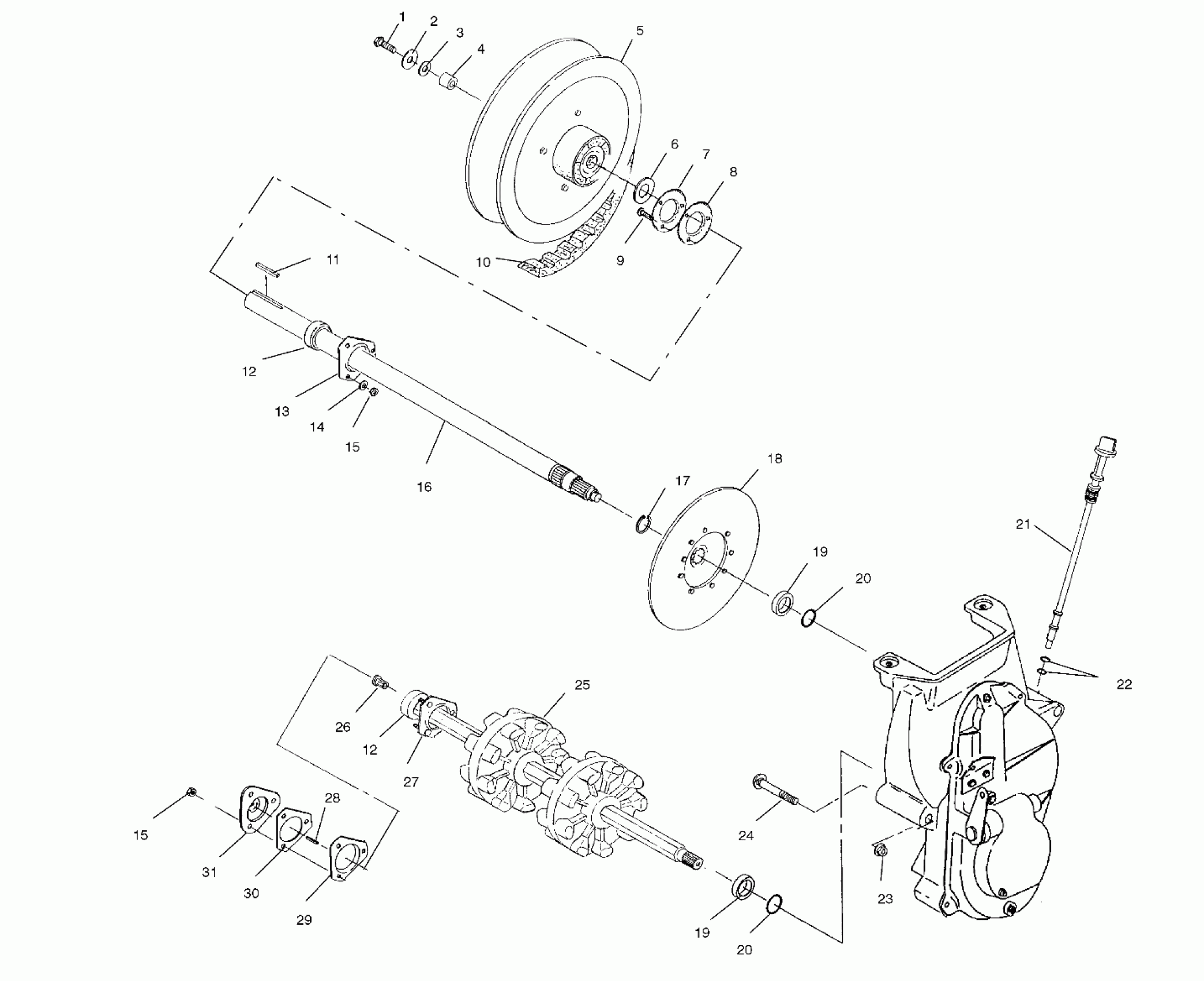

Polaris 500 CLASSIC TOURING - S02ST4BS DRIVE TRAIN - S02ST4BS (4967516751B010) Diagram

#

Description
Price

1

BOLT 5/16-18X1 3/4 HX/LK-GR5-Z

7517820

Unavailable

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Asm., Driven Clutch (See Driven Clutch Pg. C3, Ref. 16)

-------

Unavailable

6

WASHER SPECIAL(10)

7556509

Unavailable

7

FITTING,LUB/VEN(10)

7080561

$4.79

7

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

8

GASKET,JACKSHAFT,BLK.

5811095

$2.41

9

BOLT(10)

7512377

$4.79

10

BELT,DRIVE,28 DEG.(5)

3211070

$114.99

11

KEY-1/4X3/16X2.75

7721128

$10.39

12

BEARING

3514525

$31.99

12

BEARING

3514525

$31.99

13

FLANGETTE

5222751

$16.44

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

JACKSHAFT ASM,15 SPL (Incl. 12,17)

1332207

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

NUT(10)

7542423

$3.99

24

BOLT(10)

7515428

$4.79

25

DRIVESHAFT ASM,2 DR,W/BRG,XHS (Incl. 12,26,27)

1590283

Unavailable

26

BUSHING METAL SPEEDO

3280019

$11.99

27

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

28

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

29

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

30

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

31

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
